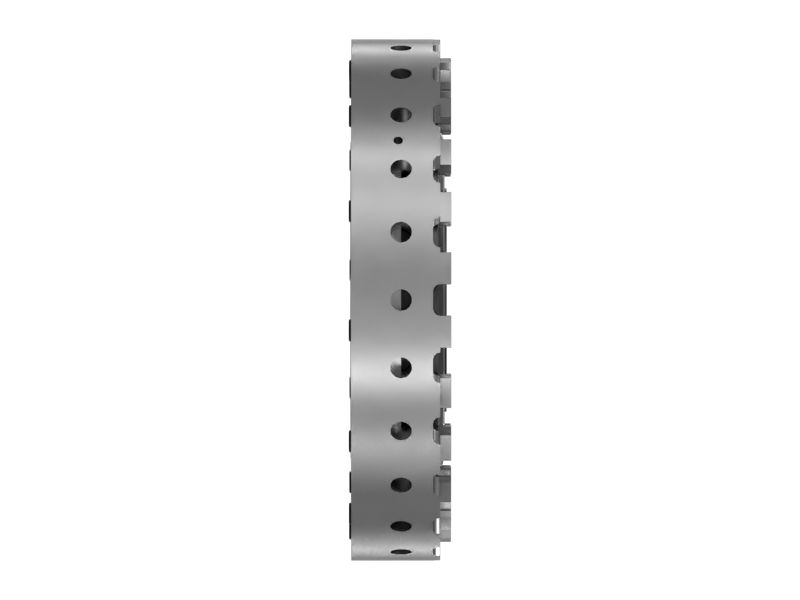

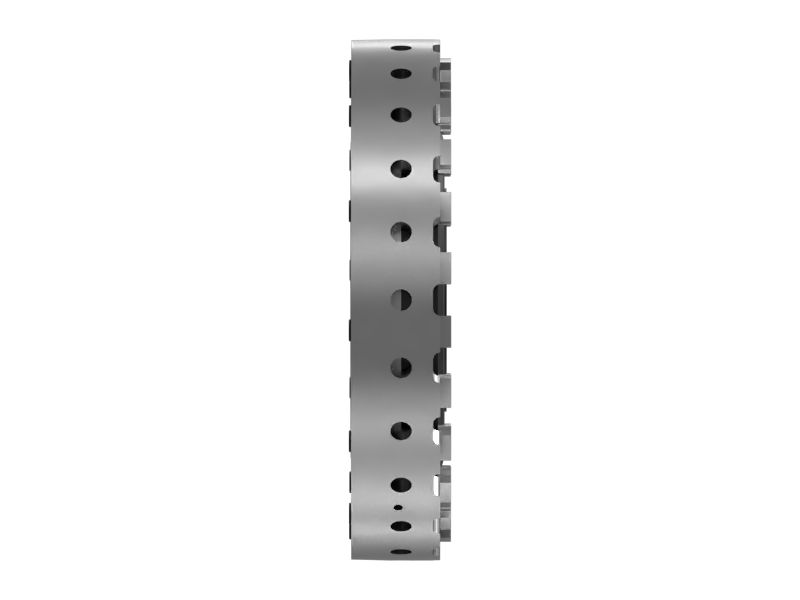

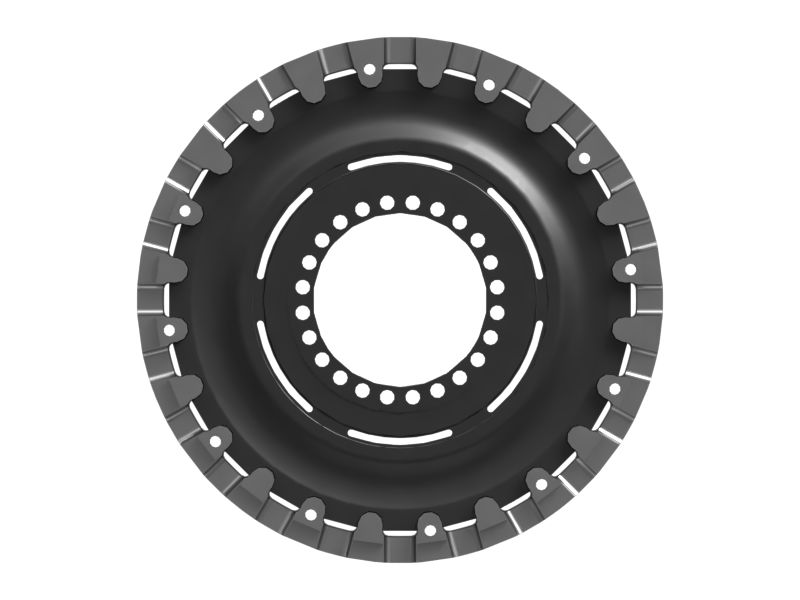

602-7756: Generator Flexible Coupling

The Generator Flexible Coupling consists of washers, an inner coupling, and an outer coupling. During operation, the generator's flexible coupling connects the rotating shaft of the engine to that of the generator. As the engine shaft rotates, torque is transmitted through the inner coupling to the outer coupling, which in turn drives the generator shaft. The washers within the coupling provide flexibility to accommodate misalignments and provide smooth power transmission to ensure optimal performance and prevent premature failure.

Attributes:
• Reduces wear on the generator and driving components.
• Absorbs shocks and vibrations.
• Has a nominal torque of 24000 Newton meters.
• Has a maximum torque of 40000 newton meters.
• Has a torsional stiffness of 750000 Newton meters per radian.
• Withstanding high torque loads.

Applications:
The Generator's Flexible Coupling is utilized in the generator, and ensures smooth power transmission on the generator and the driven shaft, contributing to overall generator reliability and longevity.

• Material: Carbon Steel
