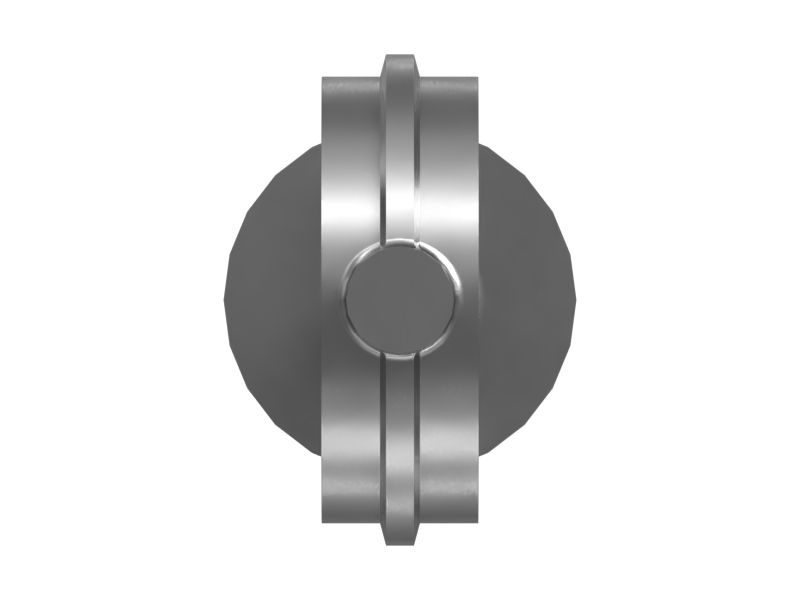

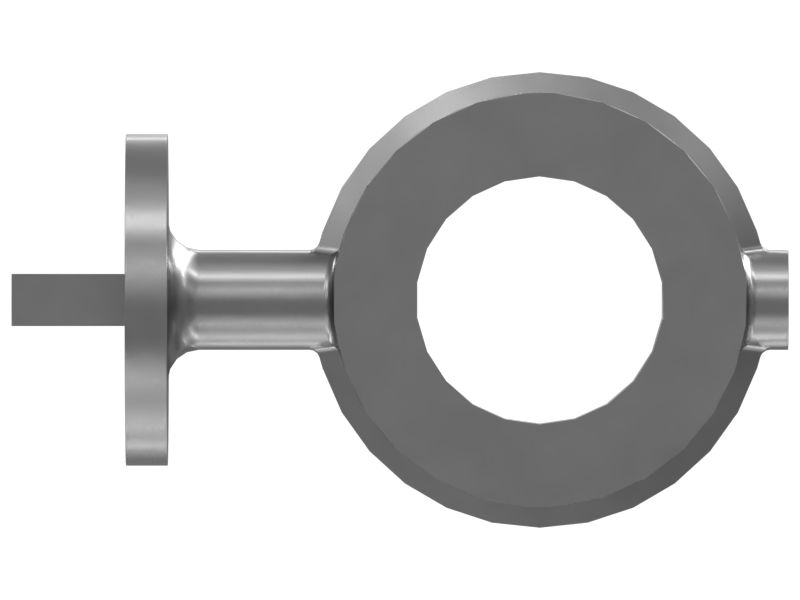

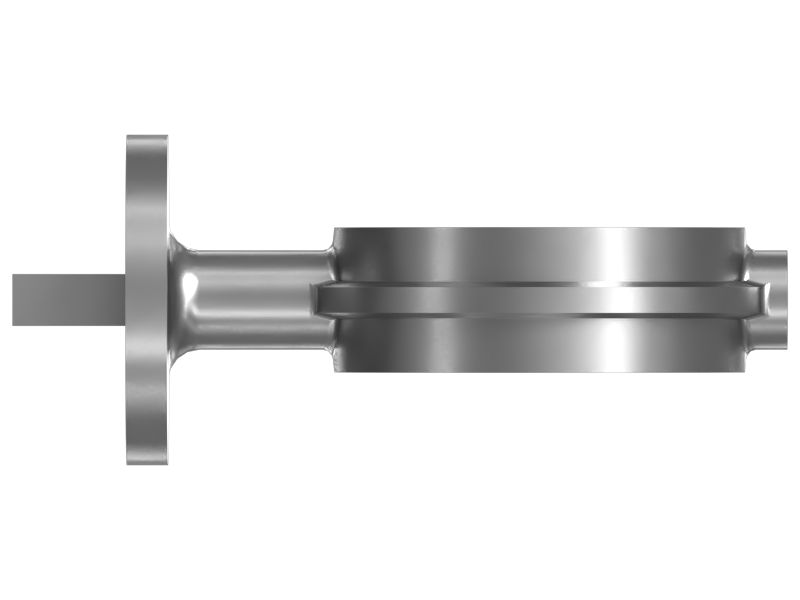

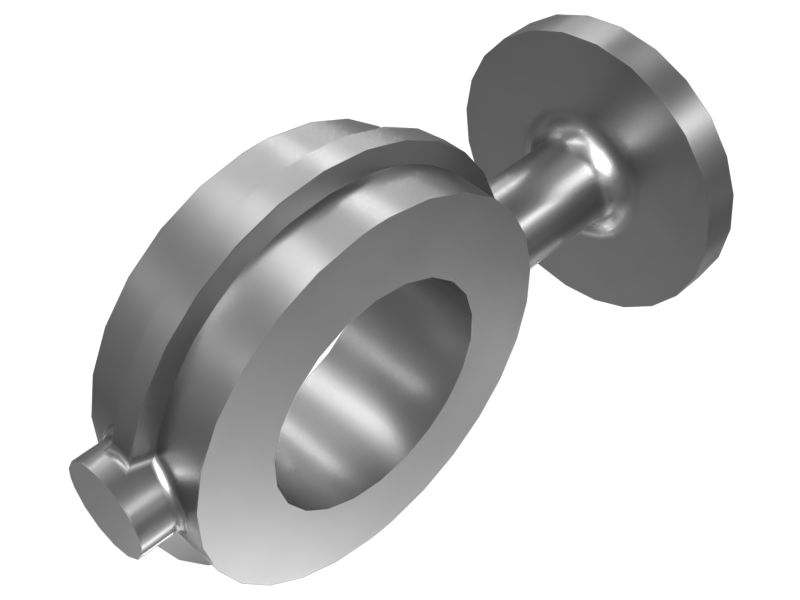

601-7222: Hydraulic Cylinder Butterfly Valve

The Hydraulic Cylinder Butterfly Valve operates on the principle of a disc. When the hydraulic cylinder receives a signal, it adjusts the position of this disc to either allow or restrict the flow of water. The valve can be operated remotely, either manually or automatically, by controlling the hydraulic system. When the cylinder activates, it moves the disc within the pipe. When fully open, the disc is perpendicular to the flow, enabling maximum water passage. Conversely, when closed, the disc turns parallel to the flow, effectively stopping the water flow.

Attributes:
• Resistant to corrosion.
• Hydraulic pressure controls the valve's operation.
• Designed to withstand high pressures and harsh conditions.

Applications:
The Hydraulic Cylinder Butterfly Valve is used to regulate water flow within the tank to control spray patterns, manage water distribution, and adjust the intensity of water discharge.

• Material: Carbon Steel
