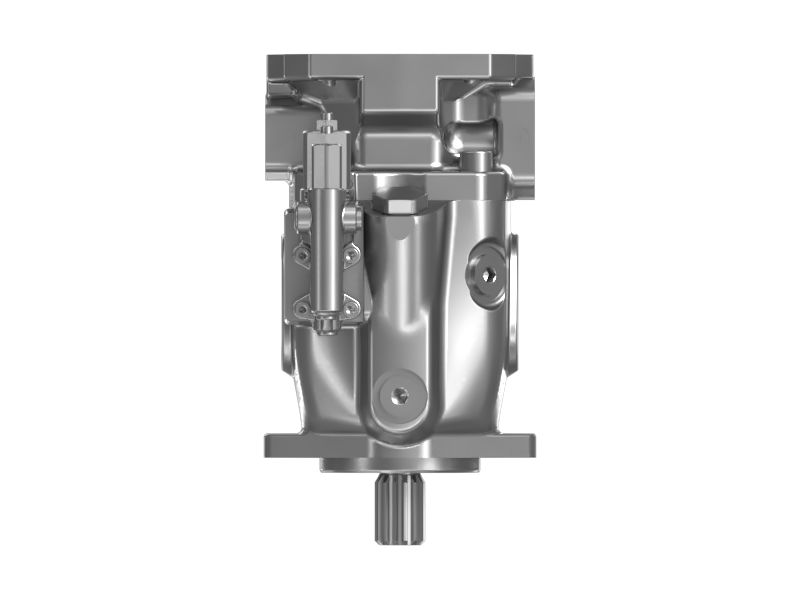

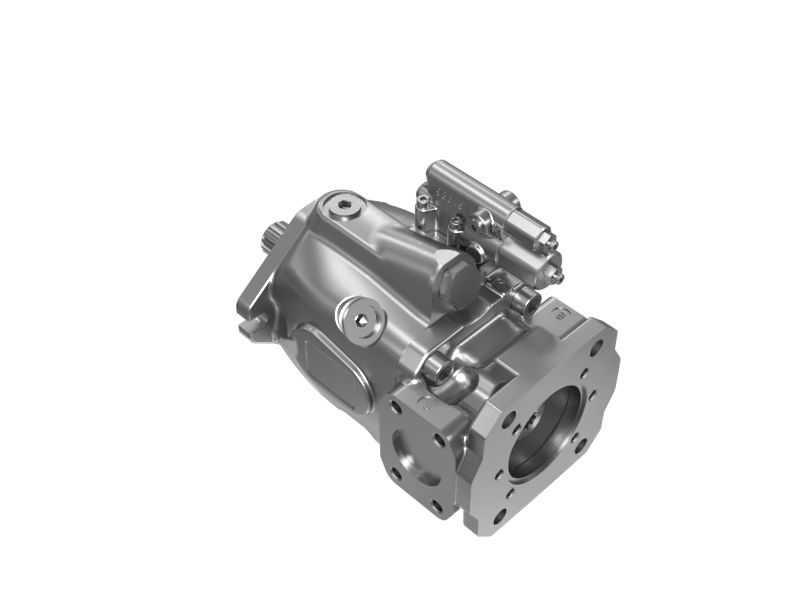

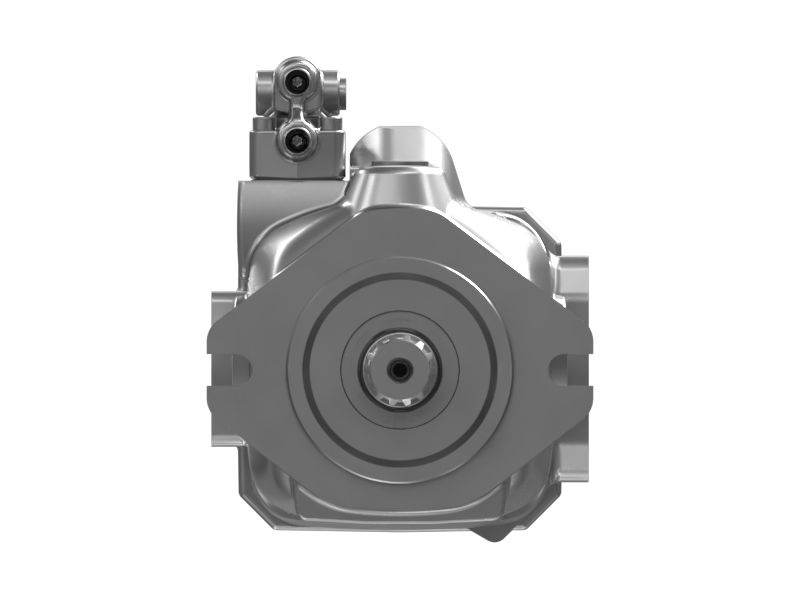

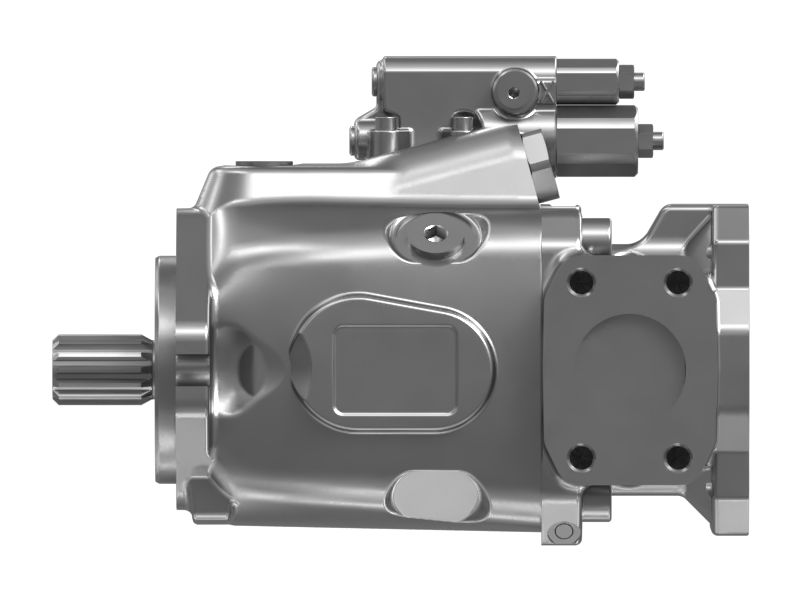

601-6985: Steering Piston Pump

The Steering Piston Pump is designed to provide hydraulic power for the steering system. This pump utilizes pistons to pressurize hydraulic fluid, enabling proper and responsive control of the equipment's steering mechanism, the steering piston pump ensures reliable performance and contributes to the overall safety and maneuverability of the equipment.

Attributes:
• Rotation of the piston pump in a clockwise direction.
• Maximum speed of the piston pump is 2300 revolutions per minute.
• The cutoff pressure of the piston pump is 24100 to 350 kilopascal.
• Maximum outlet pressure of the piston pump is 24100 kilopascal.
• The displacement of the piston pump is 72 cubic centimeters per revolution.
• The margin pressure of the piston pump is 2300 to 100 kilopascal.

Applications:
The Steering Piston Pump is used to generate fluid pressure and assist in the operation of the steering system. Its piston mechanism provides the force for steering, allowing the operator to control the direction of the equipment.

• Overall Length (mm): 172

• Overall Length (in): 6.77

• Overall Width (mm): 219

• Overall Width (in): 8.62

• Overall Height (mm): 310

• Overall Height (in): 12.2

• Weight (kg): 28.1

• Weight (lb): 61.95

• Material: Carbon Steel
