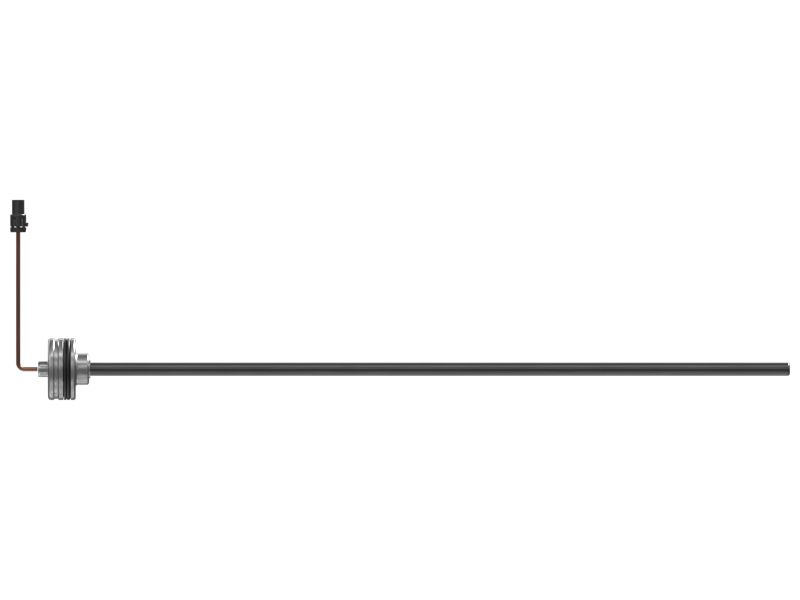

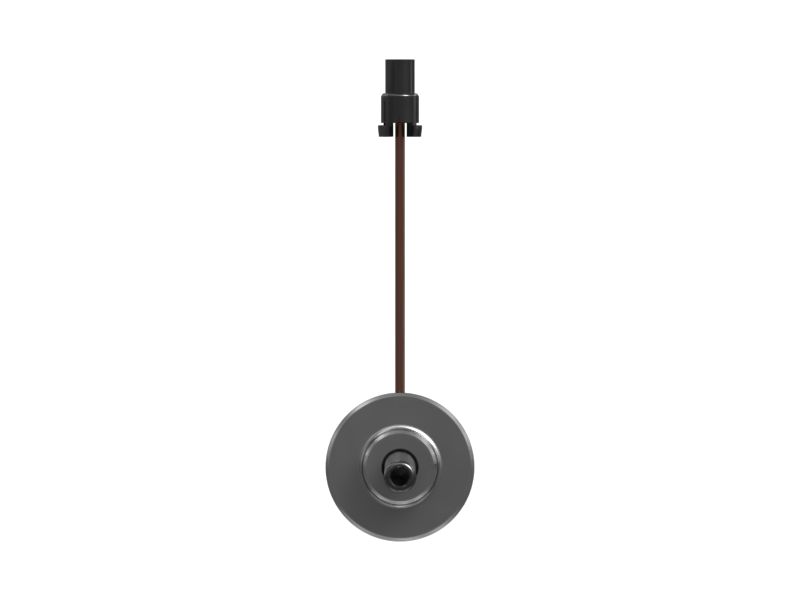

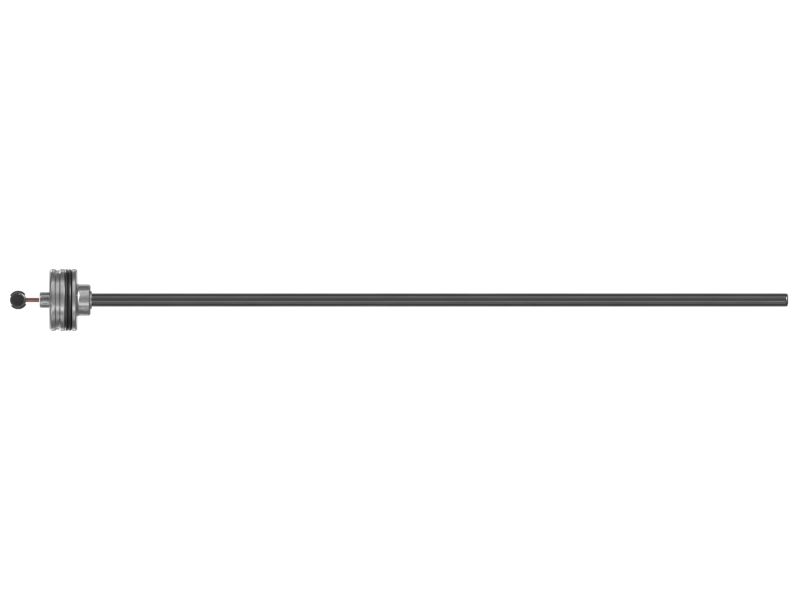

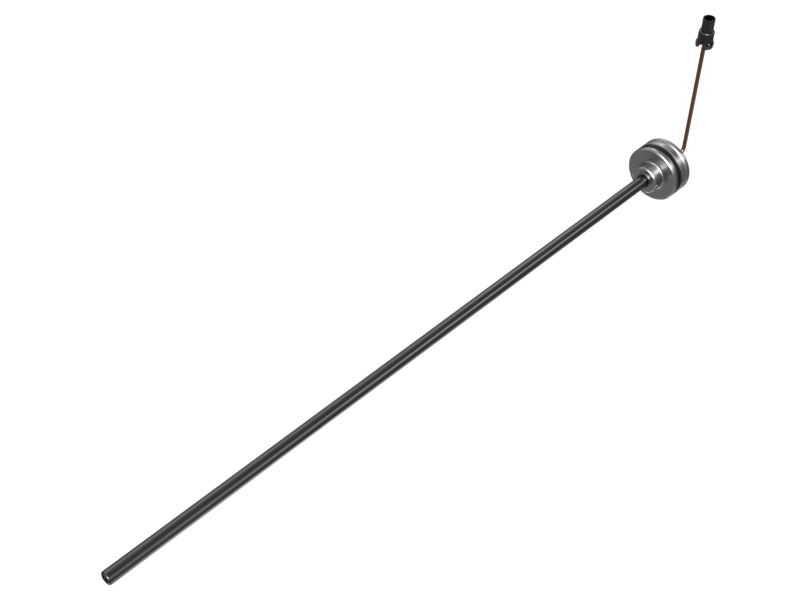

601-0985: 11 Volt Steering Cylinder Linear Position Sensor

The Steering Cylinder Linear Position Sensor is engineered to measure and relay feedback on the linear position of an equipment steering cylinder. Positioned within the steering system, this sensor detects the linear movement of the cylinder, providing real-time data to the equipment's electronic control system. By accurately monitoring the steering position, the sensor enables the electronic power steering system to make accurate adjustments, enhancing equipment safety and performance.

Attributes:
• Accurate measurement of linear displacement.
• Sensor type: Magnetostrictive
• Detects and provides feedback on the linear movement of the cylinder.

Applications:
The Steering Cylinder Linear Position Sensor is equipped with electronic power steering. It plays a role in measuring the linear position of the steering cylinder, providing accurate feedback to the equipment's electronic control system.

• Overall Length (mm): 627.4

• Overall Length (in): 24.7

• Overall Width (mm): 48

• Overall Width (in): 1.89

• Overall Height (mm): 156.2

• Overall Height (in): 6.15

• Operating Temperature: -40° C to 120° C

• Approx. Weight (kg): 1

• Approx. Weight (lb): 2.2

• Material: Stainless Steel
