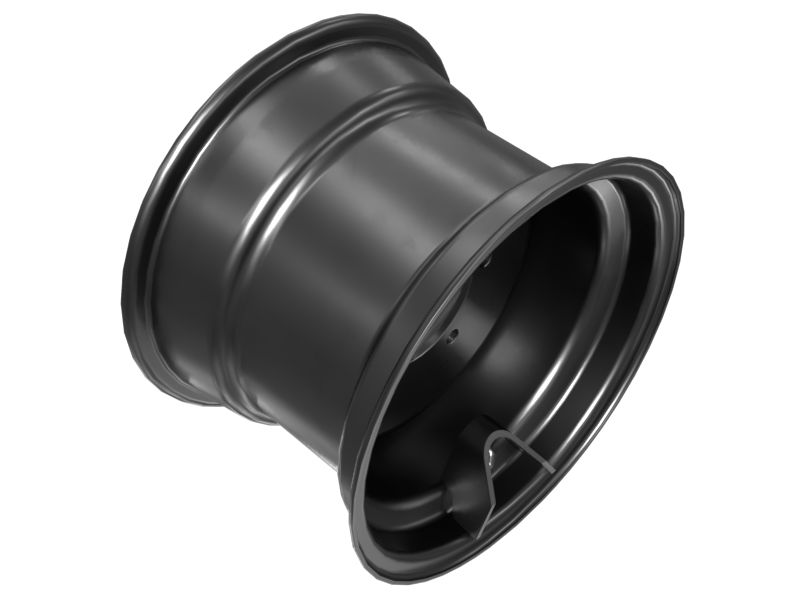

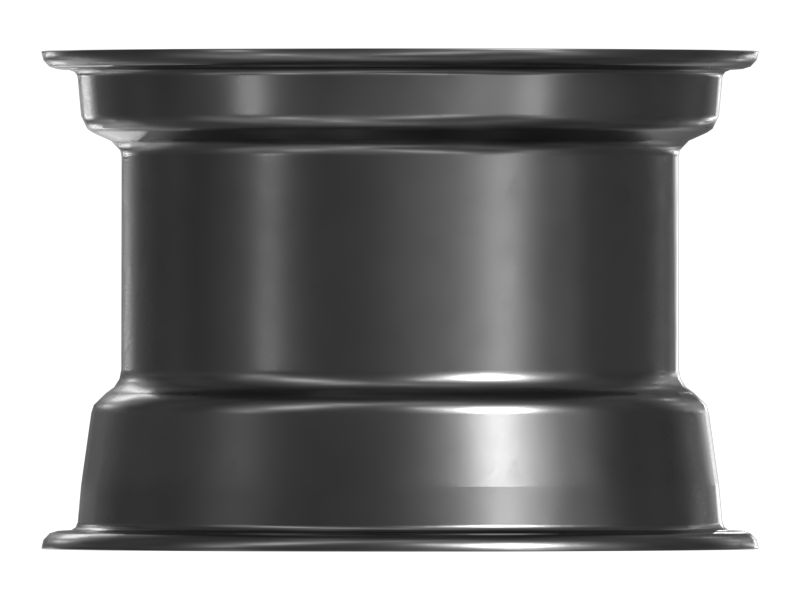

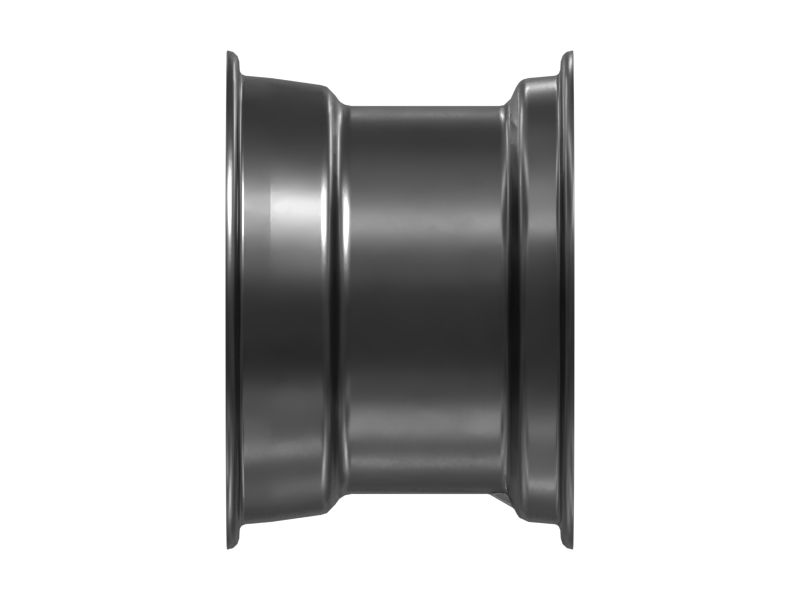

600-0431: Tire Rim Plate

The Tire Rim Plate is designed to serve as the mounting interface for a tire, it provides a secure and stable platform for the tire, ensuring proper alignment and load distribution, the rim plate is designed to withstand the dynamic forces encountered during equipment operation. Its shape and dimensions are carefully crafted to accommodate specific tire sizes and types. The Tire Rim Plate maintains overall wheel integrity, supporting the tire's structure, and contributing to the safe and efficient performance of the equipment.

Attributes:
• High-strength materials for longevity.
• Resistant to corrosion and wear.
• Resistant to load and stress.

Applications:
The Tire Rim Plate is used to secure the mounting surface for tires by ensuring proper alignment, load distribution, and stability during operation by supporting equipment load and contributing to the overall safety and performance of the equipment.

• Outer Diameter (mm): 513

• Outer Diameter (in): 20.2

• Inner Diameter (mm): 161.8

• Inner Diameter (in): 6.37

• Width (mm): 355.3

• Width (in): 13.99

• Color: Cat Yellow

• Material: Steel,Alloy Zinc

• Weight (kg): 31

• Weight (lb): 68.34
