5B-0637: ГАЙКА

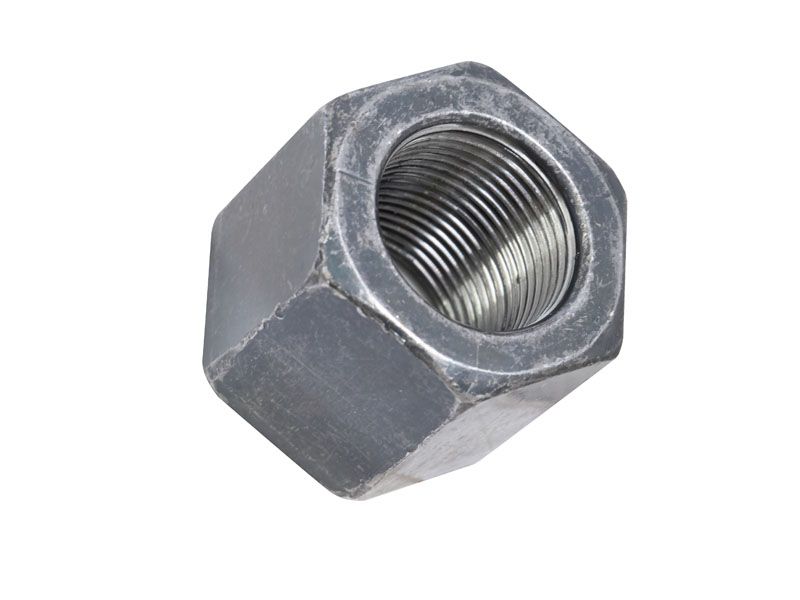

A high nut is a type of hex nut that is taller than a standard hex nut. The extra height of the Nut provides additional threaded surface area, which can help improve the grip and holding strength of the connection. They are available in a variety of materials, including steel, stainless steel, and brass.

Attributes:
Provides a larger surface area for the distribution of the load
Manufactured to precise specifications and built for durability, reliability, and productivity

Applications:
A high nut is used to provide a secure and reliable connection, mostly used in Cat® 3512 Generator Set, 3516C Engine (Piston), 6, 65, 75, D8, D8, RD8, D8D, D8G, D8E, D8F, D9D, D9G and D9H Track Type Tractor, 621, 623, 627, 650, 650, 660, 666, 650B, 660B, 660, 666 and 666B Wheel Tractor Scrapers, 621, 623, 627, 650, 650B, 660, 660B and 666, 666B Scraper, 69D, 768B, 768C, 768D, 769, 769B, 769C, 769D, 770, 771C, 771D and 772 Truck, 775 OEM Application, 9A Bulldozer, MC60B, T30C, T35C, T40C, T45C, T50C, T55C, TC60C, T30C, T40C, T50C, TC60C, V30, V35, V40, V45, V50, V30, V35, V40B, V45, V50, V30B, V35B, V40B, V45B, V50B, V30C, V35C, V40C, V45C, V50C, V40C, V50C, V41, V51, V55B, V60B, V55C, and VC60C Lift Truck.

• Hex Size (in): 1.5

• Hex Size (mm): 38.1

• Nut Type: Hex

• Thread Size (in - TPI) (in): 3/4-16

• Thread: 1 - 14

• Weight (kg): 0.2

• Weight (lb): 0.45

• Thread Size (dia x pitch) (mm): 1.000x14

• Class or Grade: Cat/SAE J995 Grade 8+ (170 ksi)

• Hand of Thread: RH

• Material: Carbon Steel
