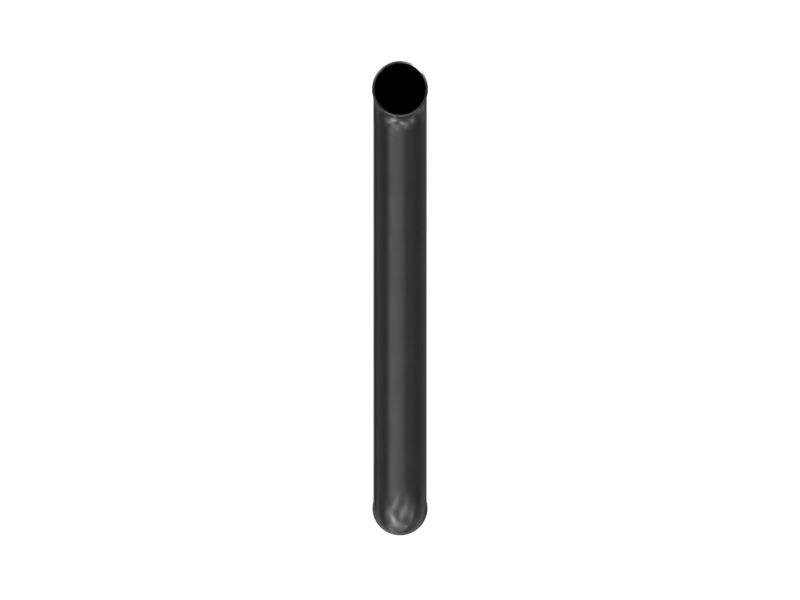

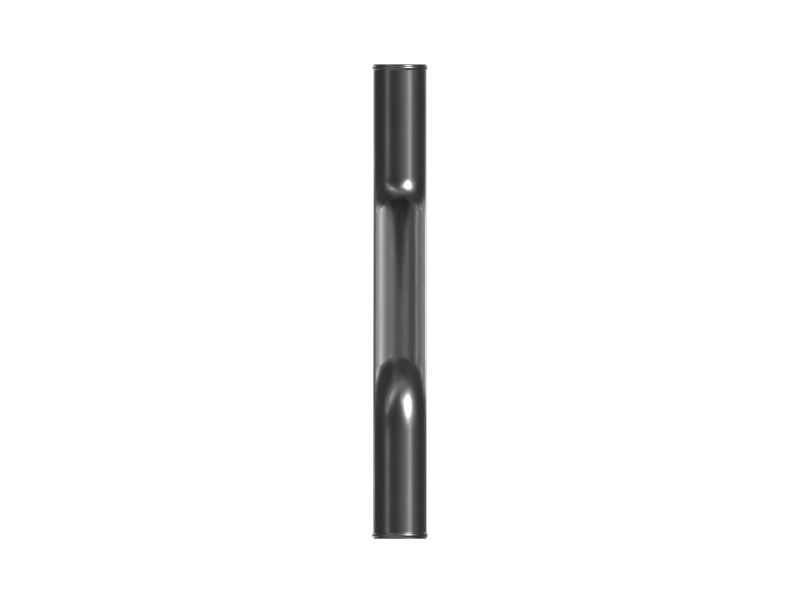

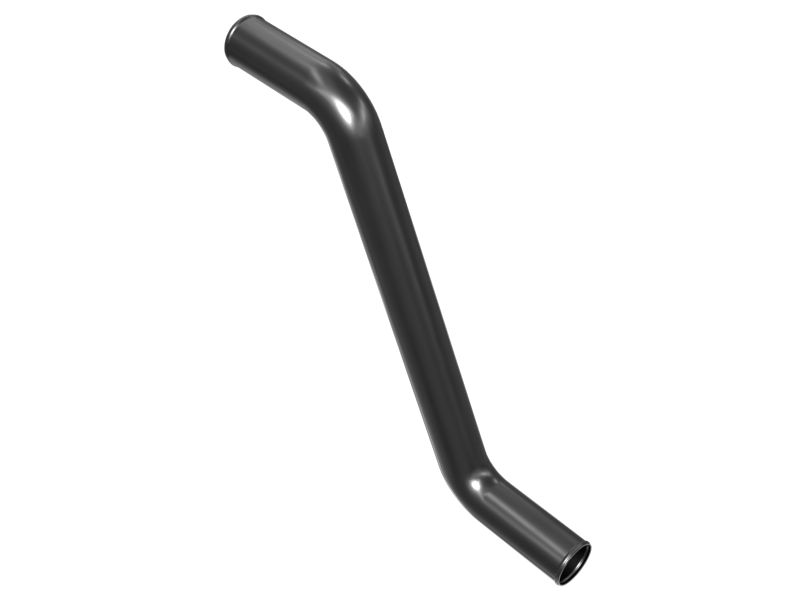

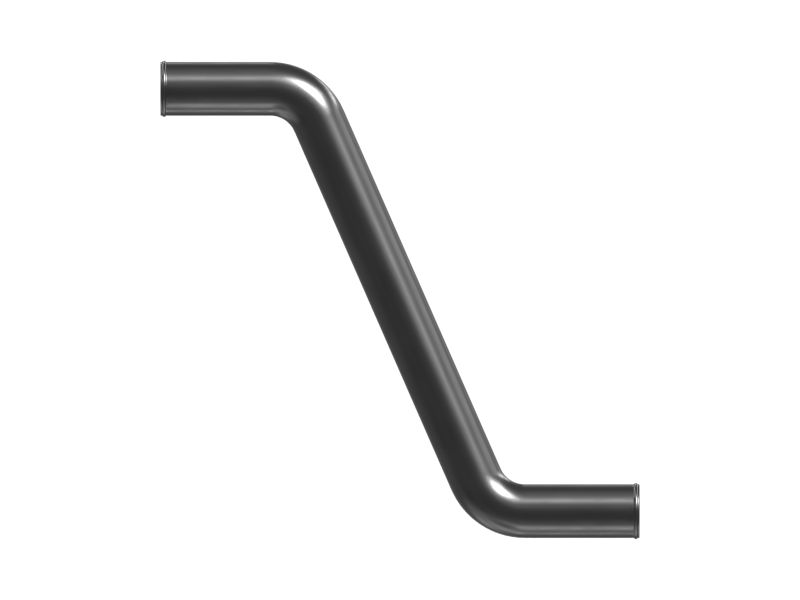

599-9199: 98.3mm Inner Diameter Air Lines Tube

The Bucket Control Lift Arm is a pivotal component in the equipment's material handling system. This lift arm provides controlled lifting and positioning of the bucket. This arm acts as a mechanical lever, transferring hydraulic power to elevate and maneuver the bucket with precision. It ensures smooth and efficient operation, allowing the operator to perform complex tasks such as digging, lifting, and dumping materials.

Attributes:
• Facilitates smooth and controlled lifting of the bucket, ensuring stable operation.
• Adjusts the angle of the bucket to optimize load handling and dumping.
• Evenly distributes hydraulic force to lift and control the bucket’s movement.

Applications:
The Bucket Control Lift Arm is situated on the front-end loader, connected between the equipment's hydraulic system and the bucket assembly to convert hydraulic pressure into mechanical motion, allowing the operator to raise, lower, and tilt the bucket with precision.

• Inner Diameter (in): 3.87

• Inner Diameter (mm): 98.3

• Outer Diameter (in): 4

• Outer Diameter (mm): 101.6

• Radial Thickness (mm): 1.65

• Weight (kg): 5.75

• Weight (lb): 12.67

• Working Pressure (kPa): 250

• Working Pressure (psi): 36.26

• Material: Alloy Steel
