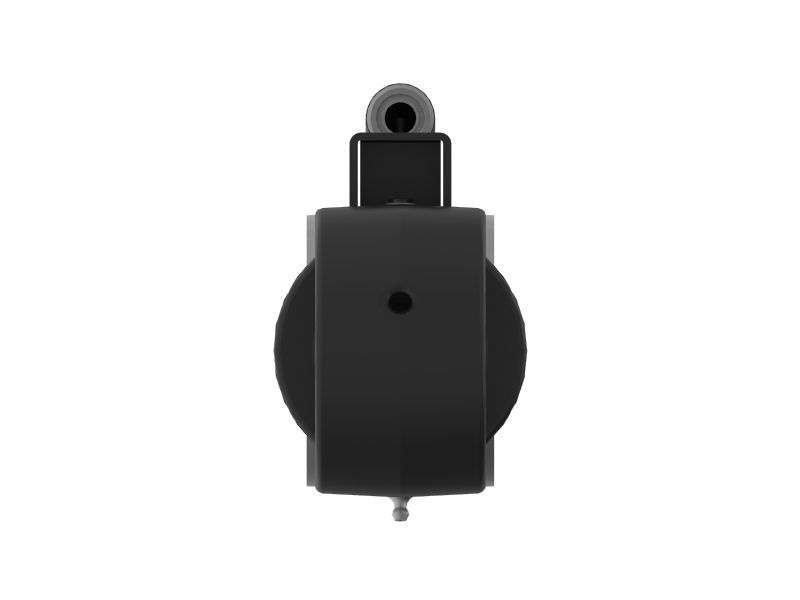

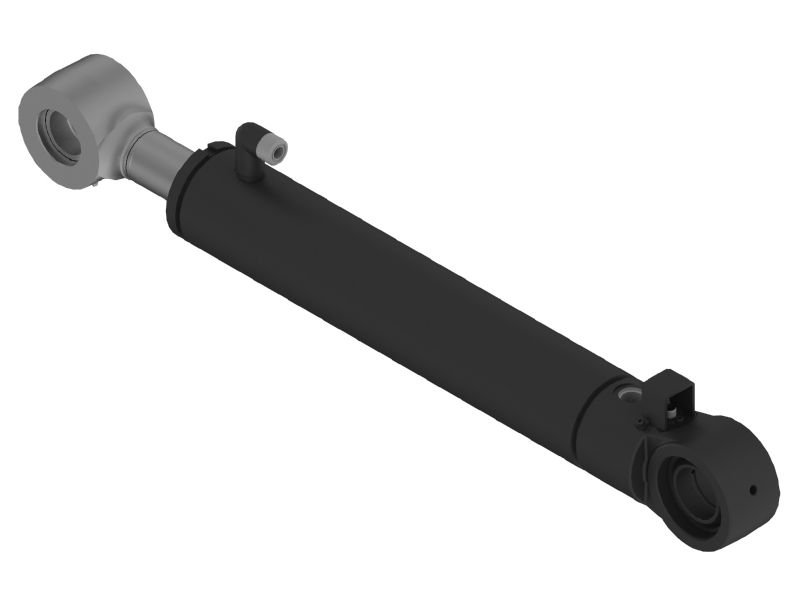

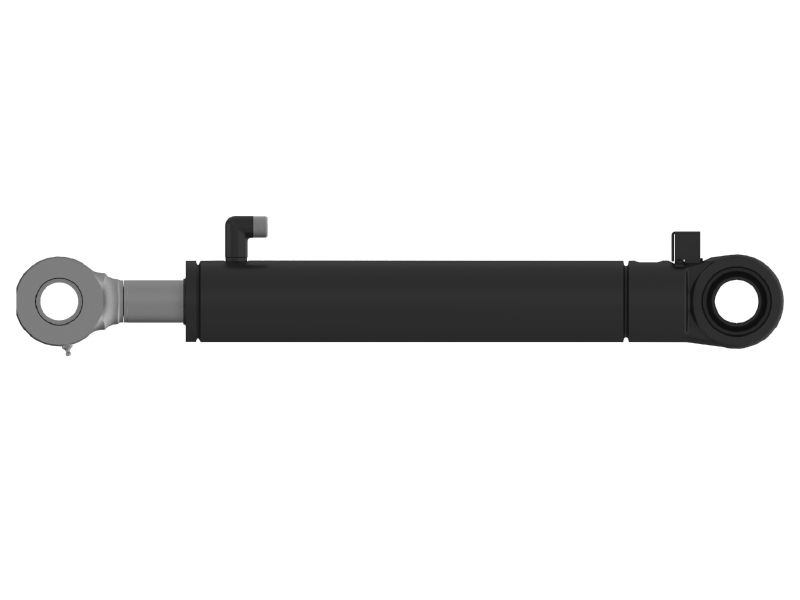

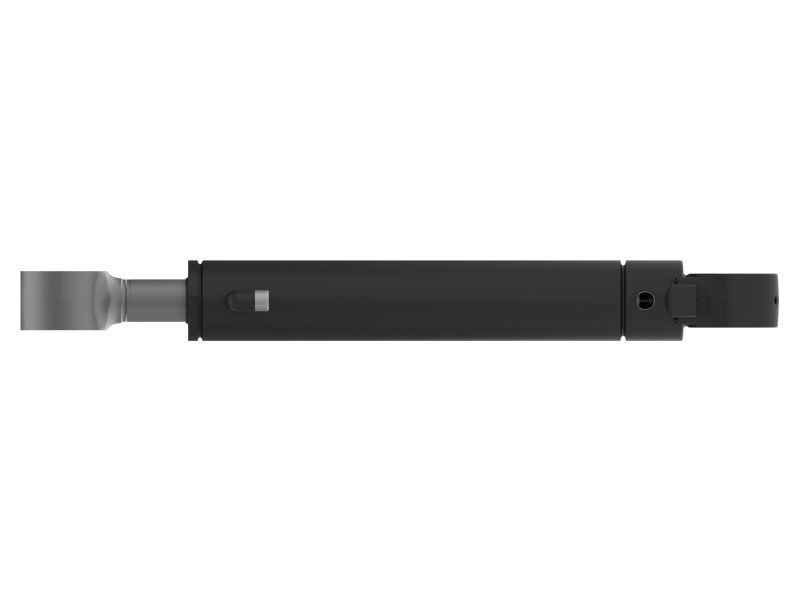

599-4230: Hydraulic Cylinder

Description:
Cat® Cylinders are designed for your rugged work environment, are double acting cylinders in which the working fluid acts alternatively on both sides of the piston. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications. Cat® Hydraulic Cylinders actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic Cylinder consist of tube and rod that are ready for installation on a machine. The heavy duty hydraulic cylinder is a high-performance device that delivers powerful and precise force for various applications in excavator machines. It is engineered to handle high pressures, loads, and temperatures, and to operate reliably and efficiently in harsh environments.

Stroke Length : 398.5 mm (15.69 in)
Closed Length : 790 mm (31.10 in)
Open Length : 1188.5 mm (46.79 in)
Port Thread Size - TPI IN - A : 7/8 - 14 STOR
Rod End Thread Size - TPI IN - B : 1 - 14 ORFS

Application:
Cat® Hydraulic Cylinders are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 904

• Overall Length (in): 35.59

• Overall Width (mm): 95

• Overall Width (in): 3.74

• Overall Height (mm): 164

• Overall Height (in): 6.46

• Bore Diameter (mm): 80

• Bore Diameter (in): 3.15

• Rod Diameter (mm): 50

• Rod Diameter (in): 1.97

• Working Pressure (kPa): 35000

• Working Pressure (psi): 5076.32

• Material: Steel,Carbon Steel
