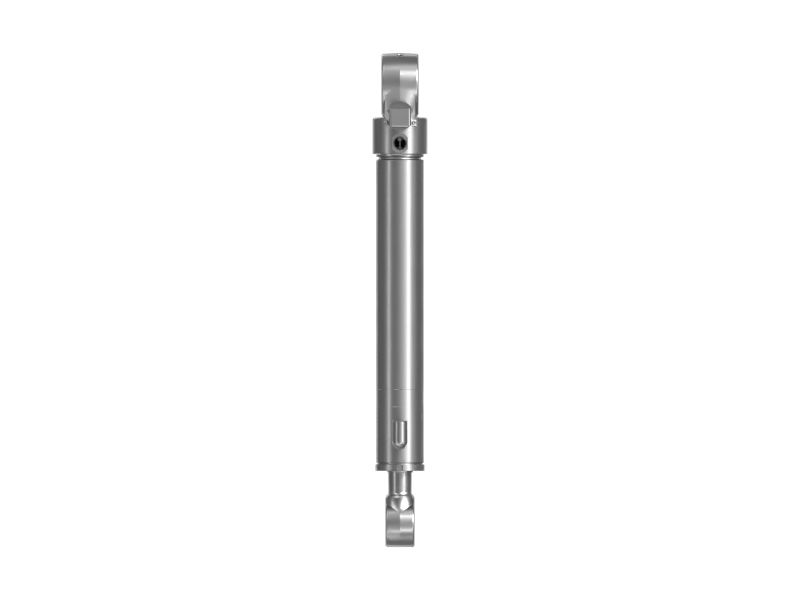

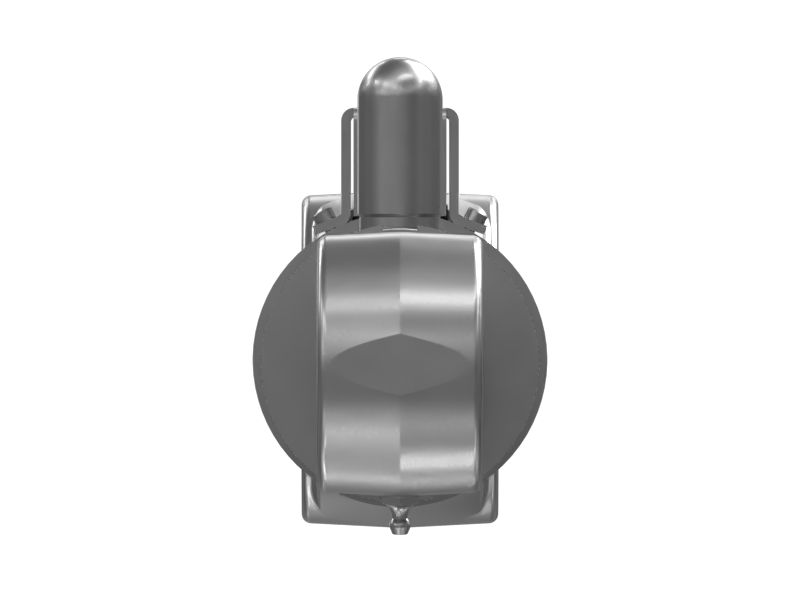

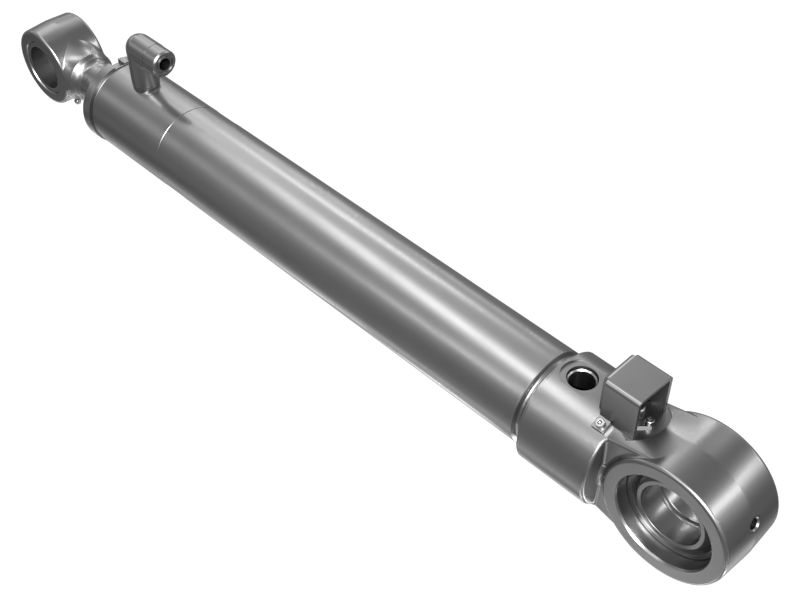

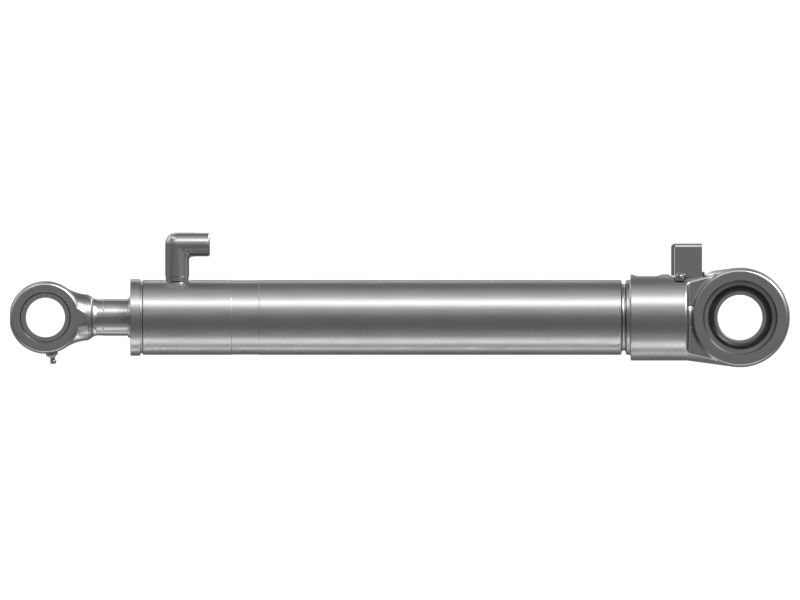

599-4227: Stick Cylinder

Cat® Cylinders are designed for your rugged work environment, are double acting cylinders in which the working fluid acts alternatively on both sides of the piston. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications. Cat® Hydraulic Cylinders actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic Cylinder consist of tube and rod that are ready for installation on a machine.

Closed Length : 770 mm (30.31 in)
Stroke Length : 438.50 mm (17.26 in)
Port Size : Cap End (7/8 STOR) and Rod End (1-14 ORFS)

Application:
Cat® Hydraulic Cylinders are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 584.5

• Overall Length (in): 23.01

• Overall Height (mm): 158.6

• Overall Height (in): 6.24

• Overall Width (mm): 101.3

• Overall Width (in): 3.99

• Bore Diameter (mm): 70

• Bore Diameter (in): 2.76

• Rod Diameter (mm): 40

• Rod Diameter (in): 1.57

• Port Type: Cap End and Rod End

• Pressure Capacity (kPa): 35000

• Pressure Capacity (psi): 5076.32

• Color: Medium Gloss Black

• Weight (kg): 22.5

• Weight (lb): 49.6

• Material: Carbon Steel
