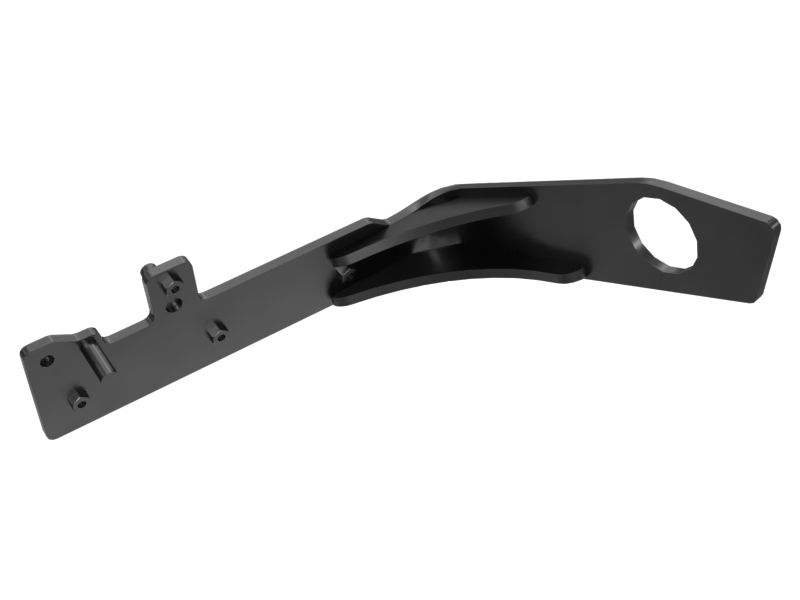

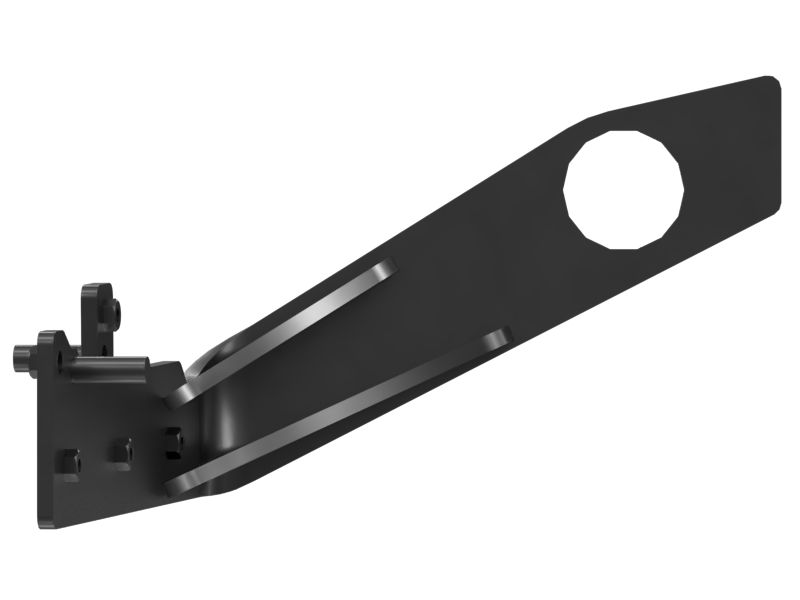

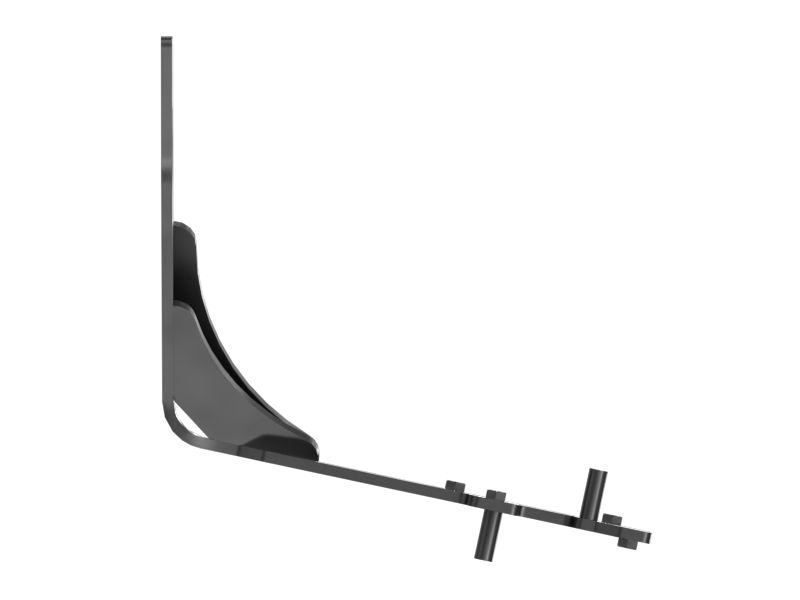

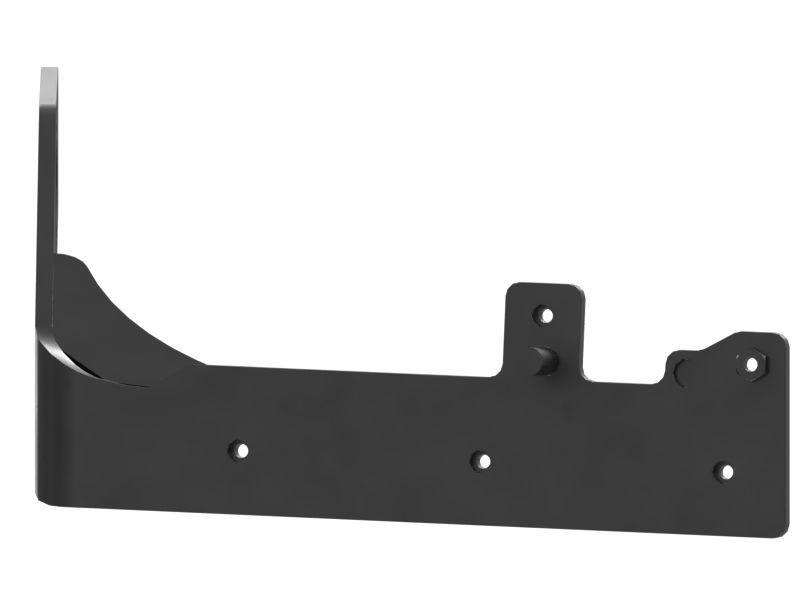

598-2161: 12mm Thick Left-Hand Paver Blade

The Paver Blade is used to facilitate the accurate distribution of asphalt material during paving operations. The blade is shaping and smoothing the asphalt surface as it is laid. Its design incorporates a curved edge that helps in efficiently spreading and compacting the asphalt mix, ensuring uniform thickness and smoothness of the paved surface. Proper installation and alignment of the blade achieve optimal paving results, including improved surface quality and reduced material waste.

Attributes:
• Resists deformation under high loads during operation.
• Enhances pavement smoothness and quality.
• Resistant to abrasion and impact forces of the paving surface.

Applications:
The Paver Blade is located on the left-hand side of the asphalt paving equipment's screed assembly, where it directly engages with the freshly laid asphalt mix to shape and compact it into a smooth, even surface.

• Weight (kg): 12.97

• Weight (lb): 28.594

• Overall Length (mm): 483.4

• Overall Length (in): 19.031

• Hole Size (mm): 21

• Hole Size (in): 0.827

• Internal Thread: M12x1.75

• Thickness (mm): 12

• Thickness (in): 0.472

• Material: Structural Steel,Alloy Mixed
