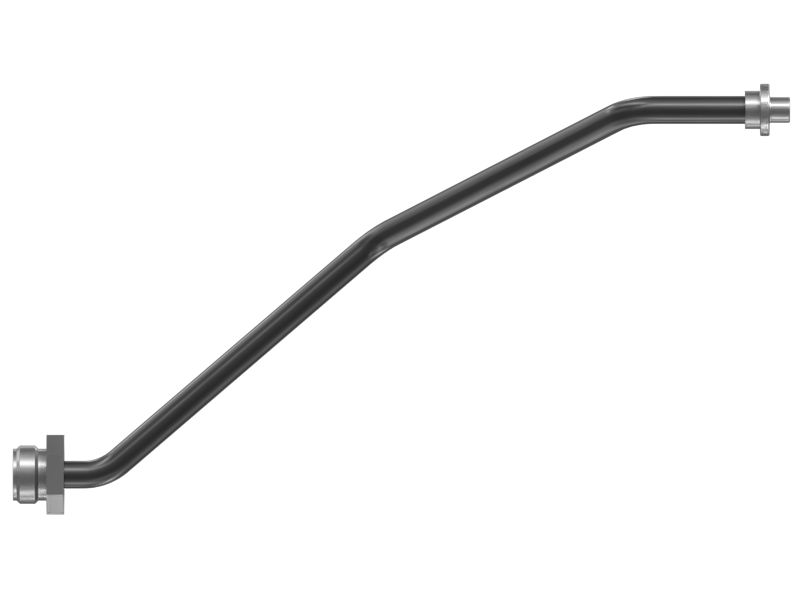

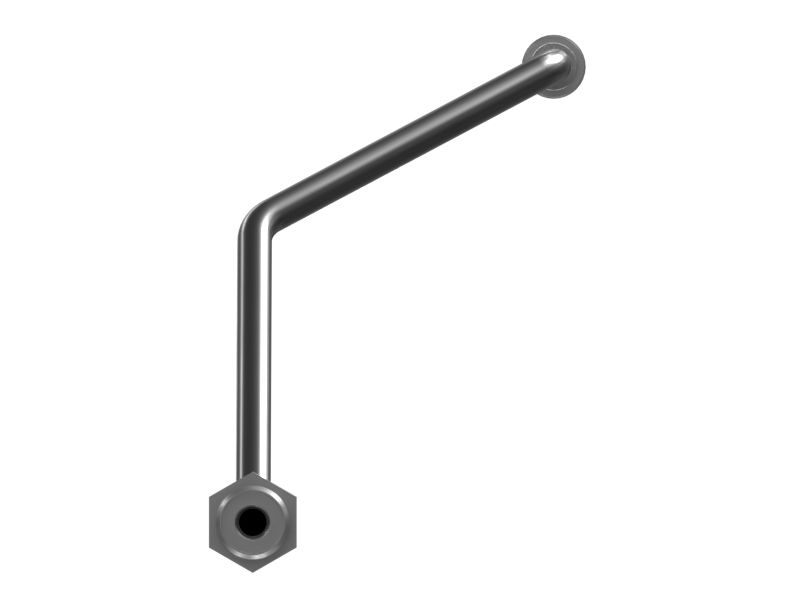

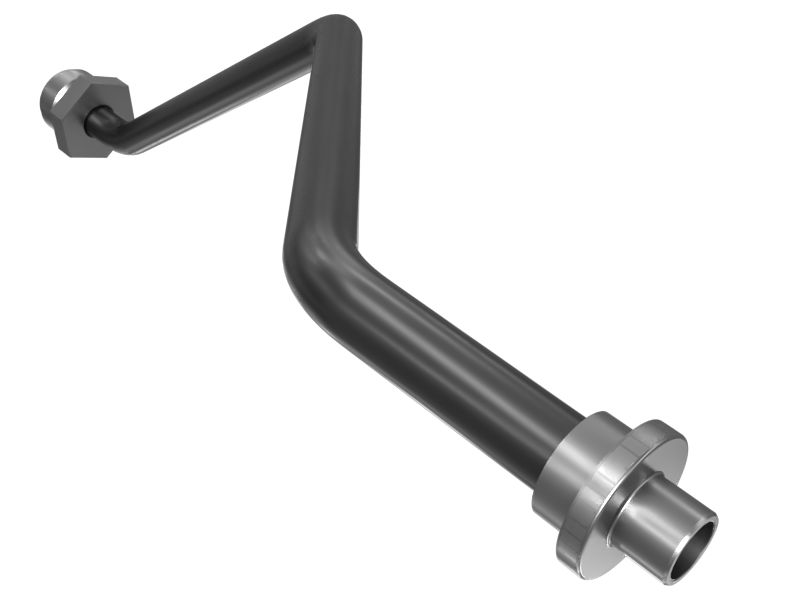

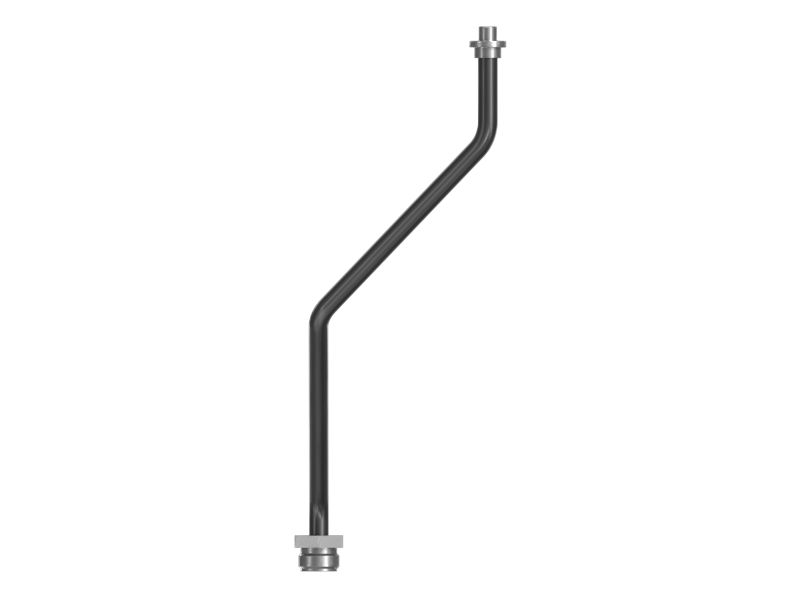

597-9702: Air Conditioner Tube

The Cabin Air Conditioner Lines Tube Assembly serves as a conduit for the flow of refrigerant between the necessary components of the system, including the compressor, evaporator, and condenser. This tube is responsible for transporting the refrigerant, which undergoes phase changes from gas to liquid and back to absorb heat from the cabin air and release it outside.

Attributes:
• Resistant to condensation and moisture buildup.
• Prevents refrigerant leakage for optimal cooling function.
• Withstands high-pressure refrigerant within the air conditioning.

Applications:
The Cabin Air Conditioner Lines Tube Assembly directs refrigerant within the air conditioning system, regulating temperature and cooling the cabin air for operator comfort.

• Overall Length (mm): 360.8

• Overall Length (in): 14.2

• Overall Height (mm): 209.2

• Overall Height (in): 8.24

• Overall Width (mm): 118.8

• Overall Width (in): 4.68

• Side Wall Thickness (mm): 1.24

• Side Wall Thickness (in): 0.05

• Tube Diameter (mm): 12.7

• Tube Diameter (in): 0.5

• Working Pressure (kPa): 2800

• Working Pressure (psi): 406.11

• Color: Medium Gloss Black

• Material: Steel,Alloy Mixed

• Weight (kg): 0.31

• Weight (lb): 0.67
