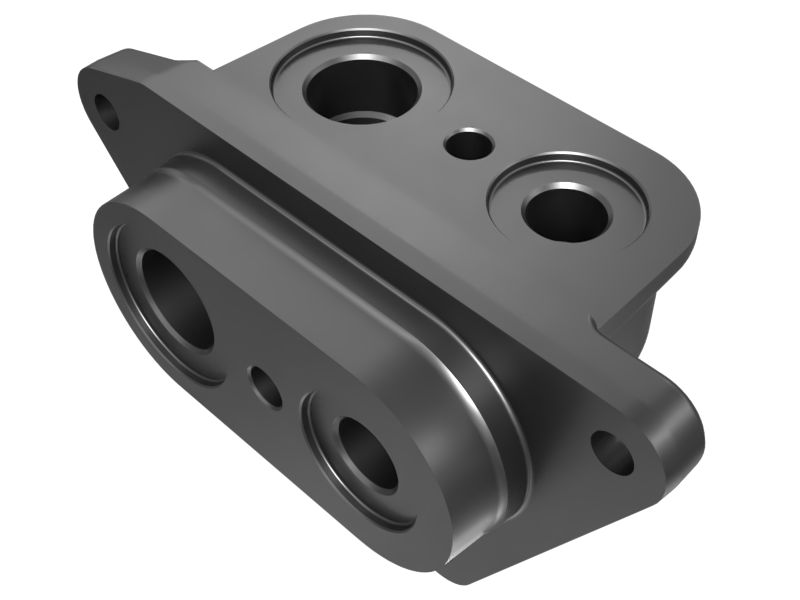

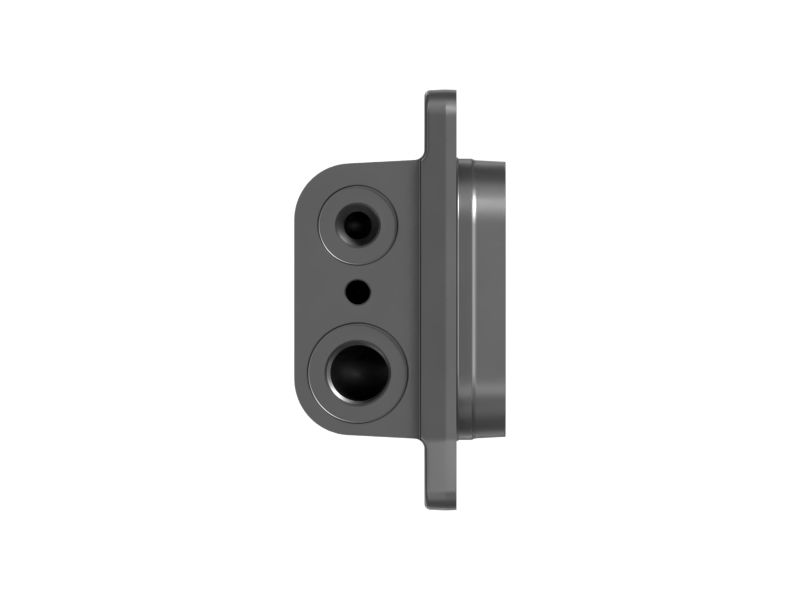

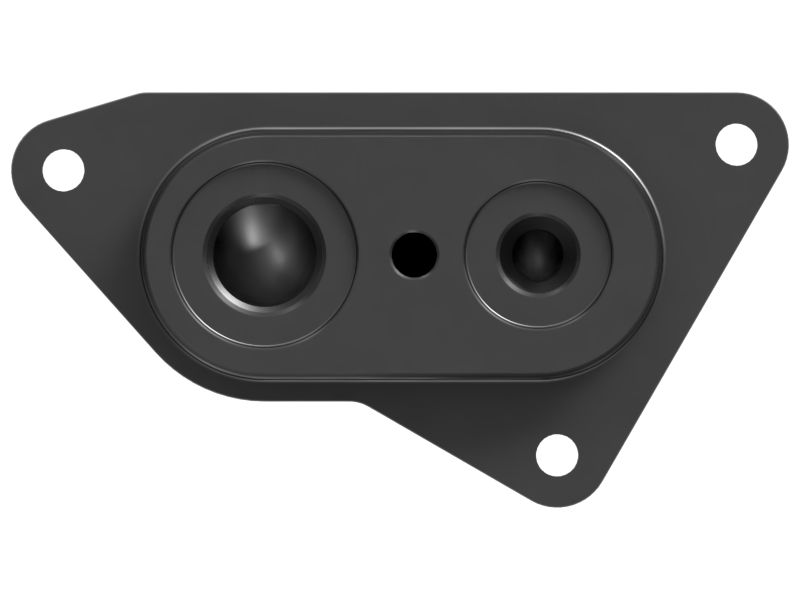

597-3059: Air Conditioner Manifold

The Cabin Air Conditioner Line Manifold regulates the flow of refrigerant within the air conditioning system, ensuring efficient cooling and temperature control within the operator cabin. The manifold consists of multiple interconnected tubes and valves that facilitate the circulation of refrigerant between the compressor, condenser, expansion valve, and evaporator.

Attributes:
• Withstands maximum working pressure up to 660kPa
• Manufactured to precise specifications and are built for durability and reliability

Applications:
The Cabin Air Conditioner Line Manifold is to distribute the refrigerant evenly throughout the air conditioning system. It acts as a central hub, connecting the various components of the system and allowing for the smooth flow of refrigerant.

• Length (mm): 119.6

• Length (in): 4.71

• Height (mm): 63.8

• Height (in): 2.51

• Width (mm): 60

• Width (in): 2.36

• Material: Aluminum Casting,Alloy Aluminum

• Working Pressure (kPa): 660

• Working Pressure (psi): 95.72

• Weight (kg): 0.38

• Weight (lb): 0.83
