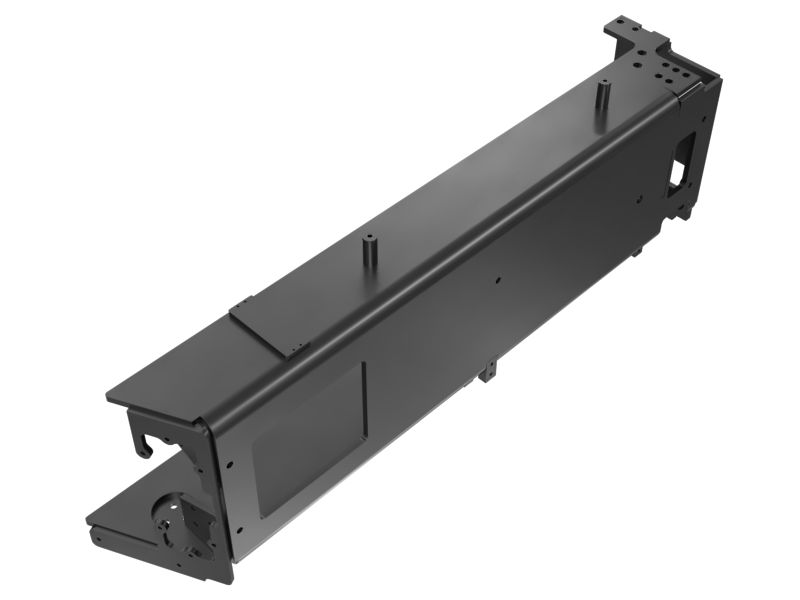

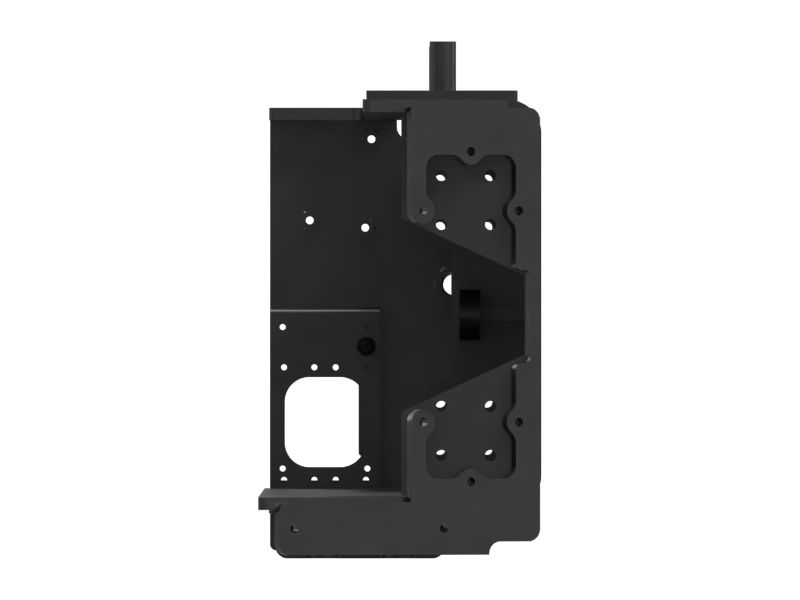

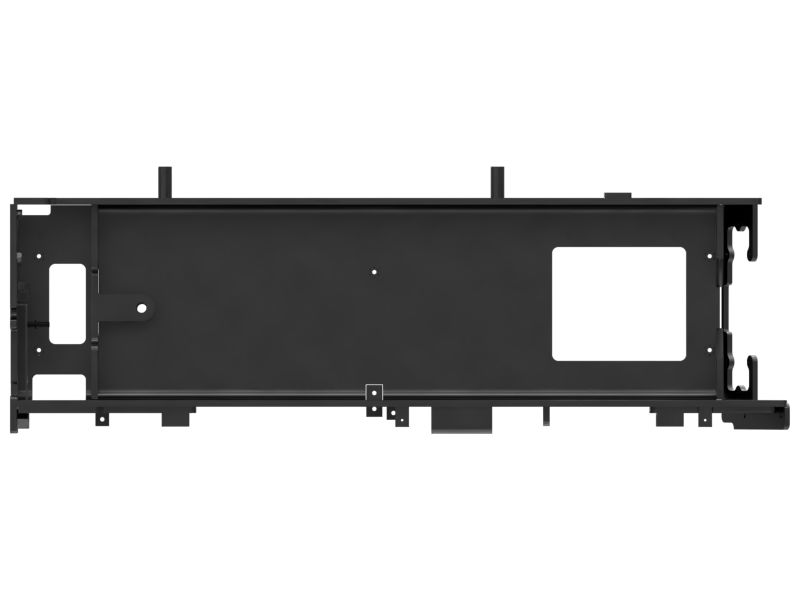

597-2861: Left-Hand Outer Slide Screed Frame

The Left-Hand Outer Slide Screed Frame is a metal frame positioned on the left side of the paving equipment's screed assembly. It forms the outer edge of the screed system and plays a role in ensuring the even distribution and smooth finishing of paving materials. The primary function of the left-hand outer slide screed frame is to support the extension screed, which is responsible for shaping the pavement to the desired thickness and profile. It allows the extension screed to slide horizontally, adjusting the width of the paving surface according to project specifications. Additionally, the frame helps distribute the weight of the paving material evenly, ensuring consistent compaction and surface quality.

Attributes:
• Designed to withstand the rigors of paving operations.
• Incorporates mechanisms for horizontal adjustment to accommodate varying pavement widths.
• Designed for efficient material distribution and compaction.
• Resistant to wear and tear for long-term use.
• Ensures uniform pavement thickness and density.

Applications:
The Left-Hand Outer Slide Screed Frame is located on the left side of the paving equipment's screed assembly, adjacent to the mainframe and other screed components. It is positioned parallel to the pavement surface and extends outward from the main frame to form the outer edge of the paving area. This component works in conjunction with the right-hand outer slide screed frame and other screed elements to ensure accurate and efficient paving operations.
