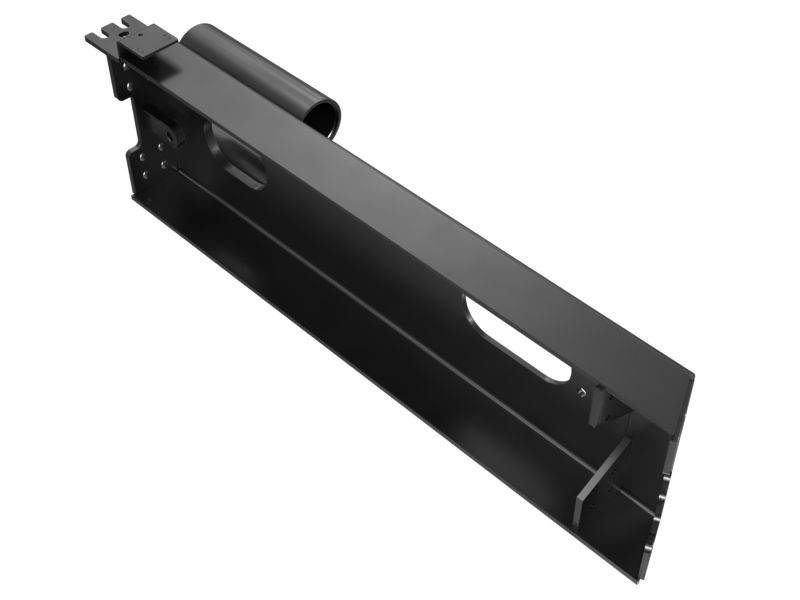

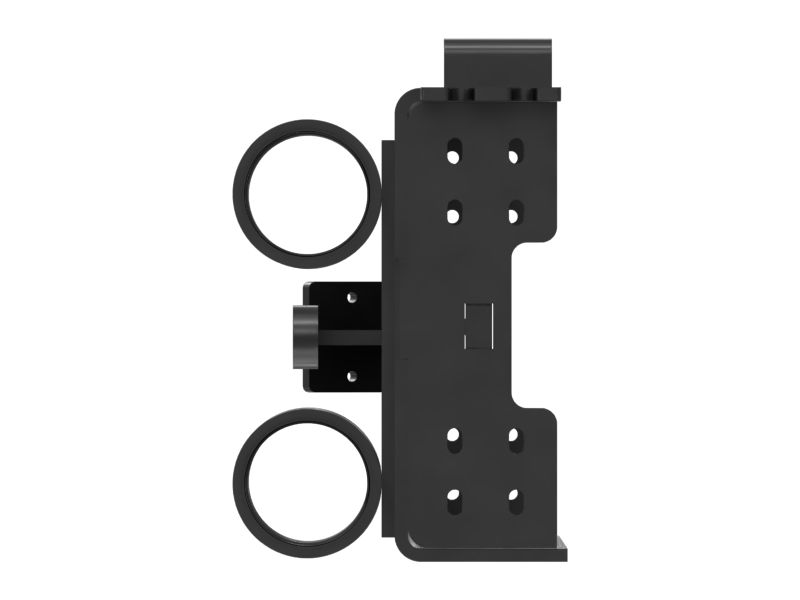

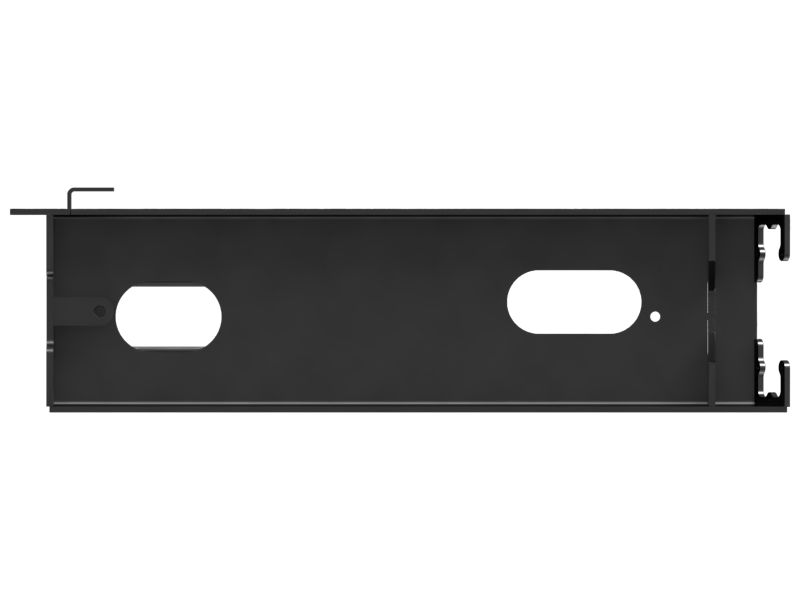

597-2860: Left-Hand Middle Slide Screed Frame

The Left-Hand Middle Slide Screed Frame is a structural framework positioned in the middle section of an asphalt paver. It consists of durable material and is designed to support the screed assembly, which is responsible for spreading and leveling asphalt or concrete mixtures to create a uniform surface. The primary function of the left-hand middle slide screed frame is to provide a stable platform for the screed assembly, ensuring it remains aligned and level throughout the paving operation. It facilitates the adjustment of the paving width by allowing the lateral movement of the screed assembly, enabling operators to customize the width of the paved surface according to need. By securely holding the screed assembly in place, the frame helps in achieving the desired smoothness and evenness of the pavement for road quality and safety.

Attributes:
• Provides accurate control over pavement thickness and quality.
• Provides support and reinforcement to the screed assembly.
• Resistant to wear and deformation under high loads.
• Resilient to vibration and impact for reliable operation.

Applications:
The Left-Hand Middle Slide Screed Frame is located centrally within the chassis of an asphalt paver, positioned between the left and right sides of the equipment. It forms an integral part of the paving mechanism and works in conjunction with other components such as the main screed, augers, and material distribution system to ensure efficient and accurate pavement.

• Material: Alloy Steel
