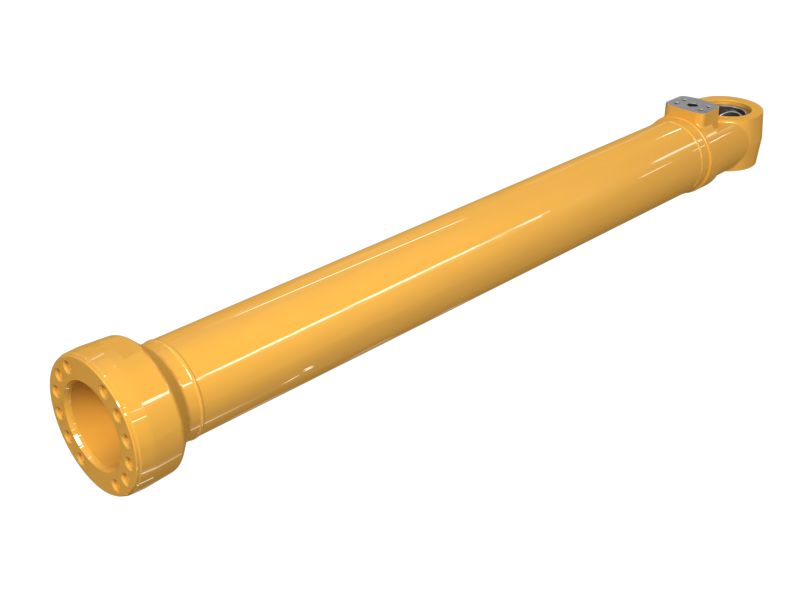

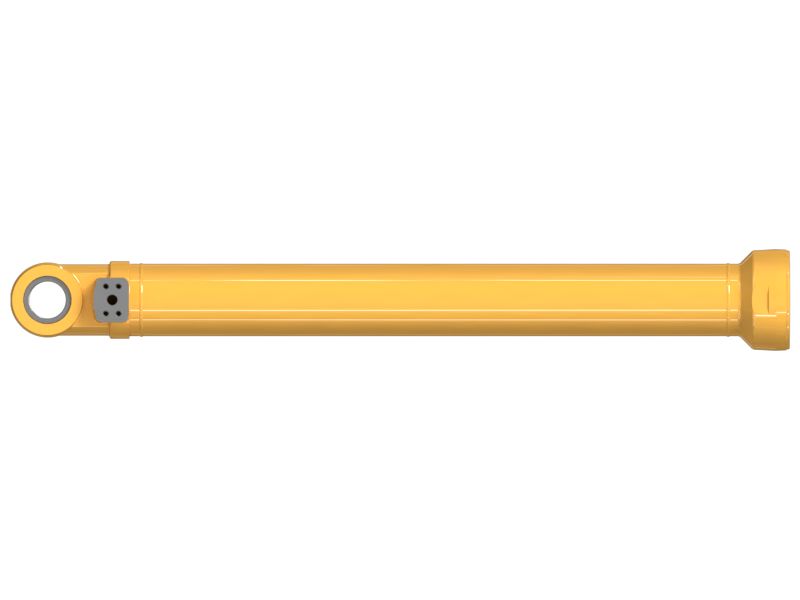

596-8248: 115mm Bore Diameter Bucket Cylinder

Description:
A Bucket Cylinder is a hydraulic cylinder that is attached to the excavator arm and the bucket. It is responsible for the movement of the bucket. The cylinder works by converting hydraulic pressure into mechanical force that moves the piston, which in turn moves the arm and bucket.

Attributes:
• Withstand high pressures and heavy loads.

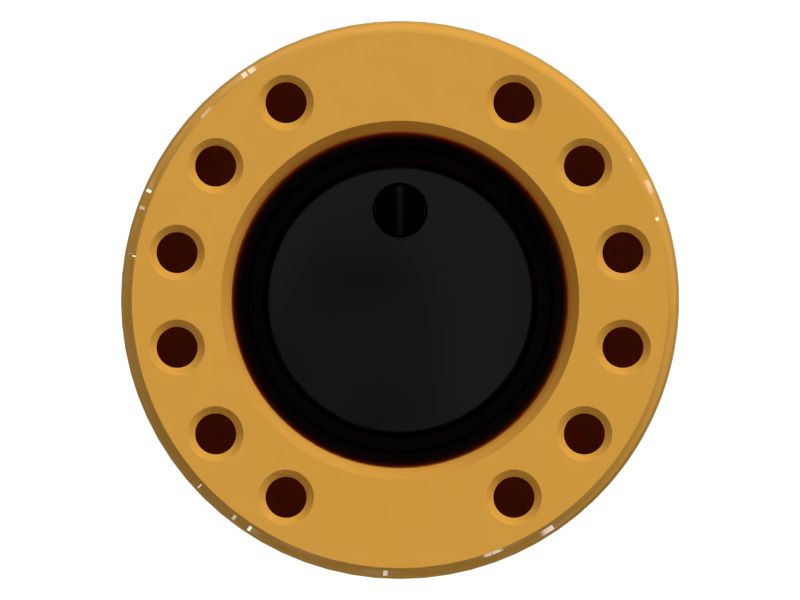

• Provided with 12 mounting holes to fit a fastener of size M16.
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
A Bucket Cylinder is used to maintain precise control over the movement of the Bucket, mostly used in Cat 320D3 Gc Excavator.

• Bore Diameter (in): 4.53

• Bore Diameter (mm): 115

• Flange Diameter (in): 7.48

• Flange Diameter (mm): 190

• Length (in): 57.52

• Length (mm): 1461

• Outer Diameter (in): 5.31

• Outer Diameter (mm): 135

• Weight (kg): 63.35

• Weight (lb): 139.66

• Material: Carbon Steel
