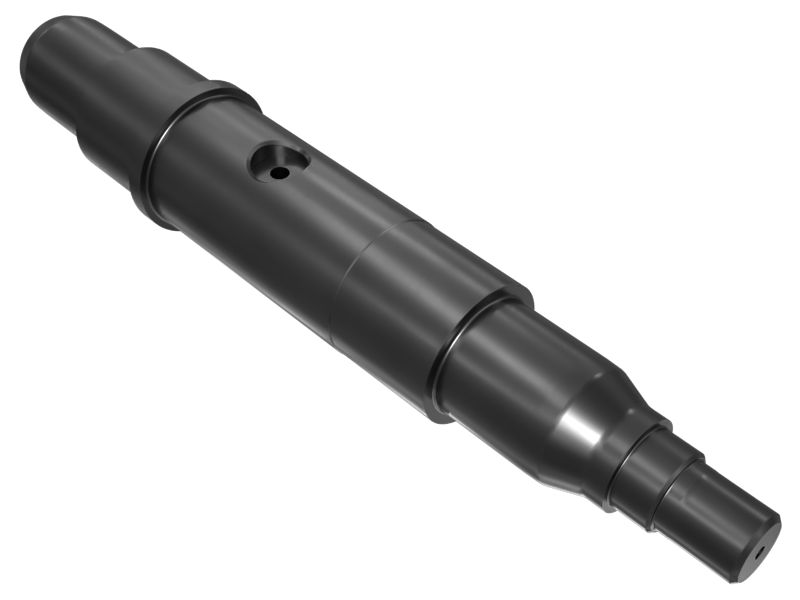

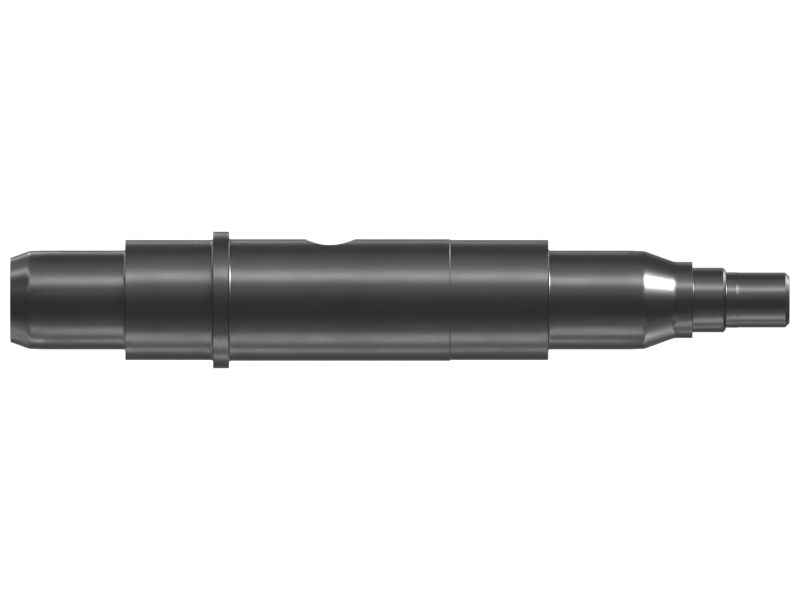

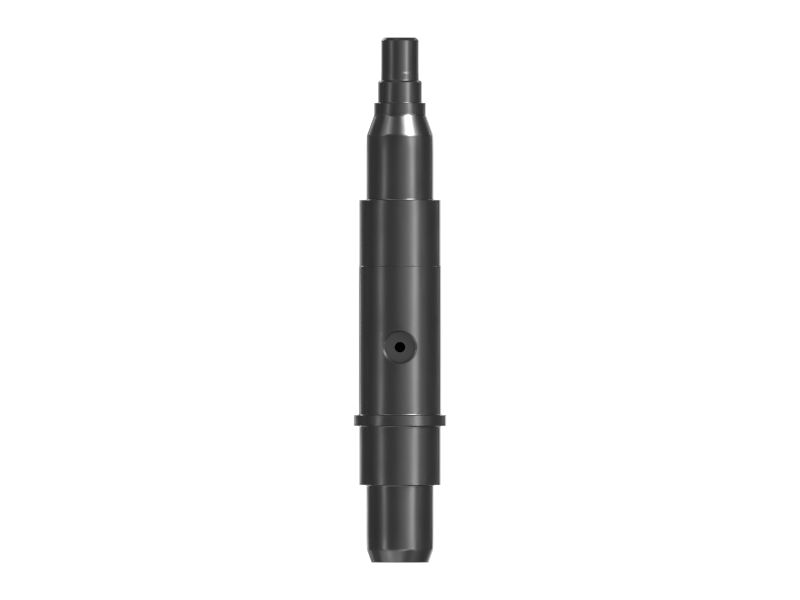

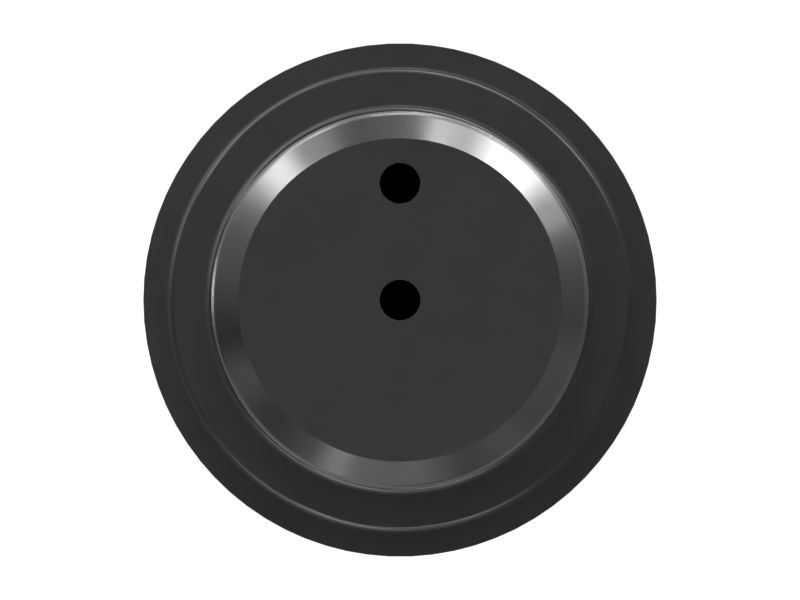

596-3716: 90mm Outer Diameter Vibratory Eccentric Shaft

The Vibratory Compactor Eccentric Shaft is responsible for converting the rotational motion generated by the engine into vibrational force. This vibrational force is required for the effective compaction of soil and asphalt during equipment operation positioned within the compactor unit, the eccentric shaft features an off-center design that creates eccentricity when rotated. As the shaft spins, it imparts vibratory motion to the compactor's drum and plate, causing rapid impacts on the surface material.

Attributes:
• Balanced build to minimize vibration and ensure smooth operation.
• Normal pressure angle is 30 degrees.
• Resistant to wear and corrosion.
• Designed from high-strength materials to withstand loads and prolonged usage.

Applications:
The Vibratory Compactor Eccentric Shaft is centrally located within the vibratory compactor unit, directly connecting to the engine and the compactor drum to convert the rotational motion generated by the engine into high-frequency vibrational force for efficient compaction of soil and asphalt surfaces during operations.

• Material: Carbon Steel
