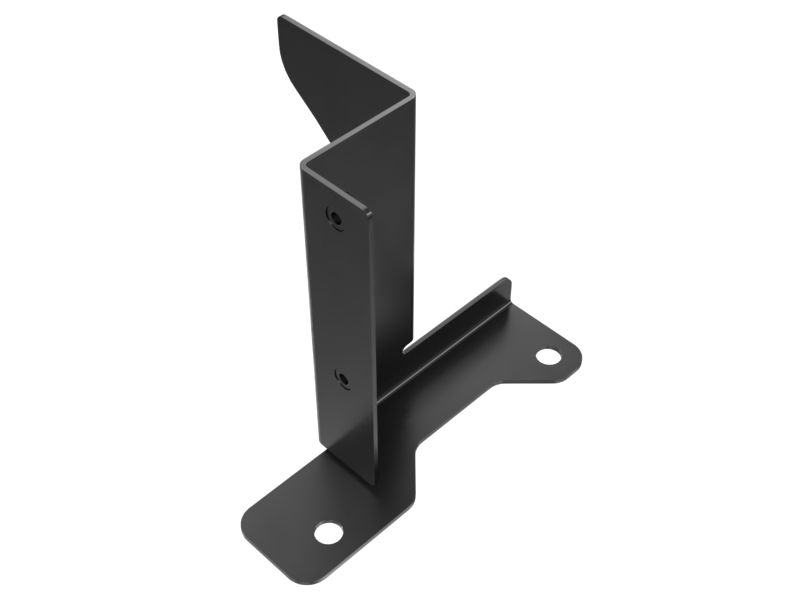

596-1647: Engine Cover Plate

A Cabin Skirt Support Plate is a relatively thick and sturdy plate used to support and reinforce the skirt assembly. It is made of steel to withstand the loads and stresses that are encountered in the assembly. It consists of a plate and weld nuts that are welded together to be fitted with the skirt assembly.

Attributes:
• Withstands high vibrations and forces in the cabin
• Provided with high strength and wear resistance

Applications:
A Cabin Skirt Support Plate is used to provide support for the cabin skirt to ensure the stability and proper positioning of the skirt plates in the operator cabin.

• Overall Length (mm): 168.5

• Overall Length (in): 6.63

• Overall Width (mm): 149

• Overall Width (in): 5.87

• Overall Height (mm): 122.2

• Overall Height (in): 4.81

• Thread Size (dia x pitch) (mm): M6 x 1 (2x)

• Material Thickness (mm): 2

• Material Thickness (in): 0.08

• Hole Size (mm): 11.5 (2x)

• Hole Size (in): 0.45 (2x)

• Color: Medium Gloss Black

• Material: Carbon Steel,Alloy Mixed

• Weight (kg): 0.42

• Weight (lb): 0.92
