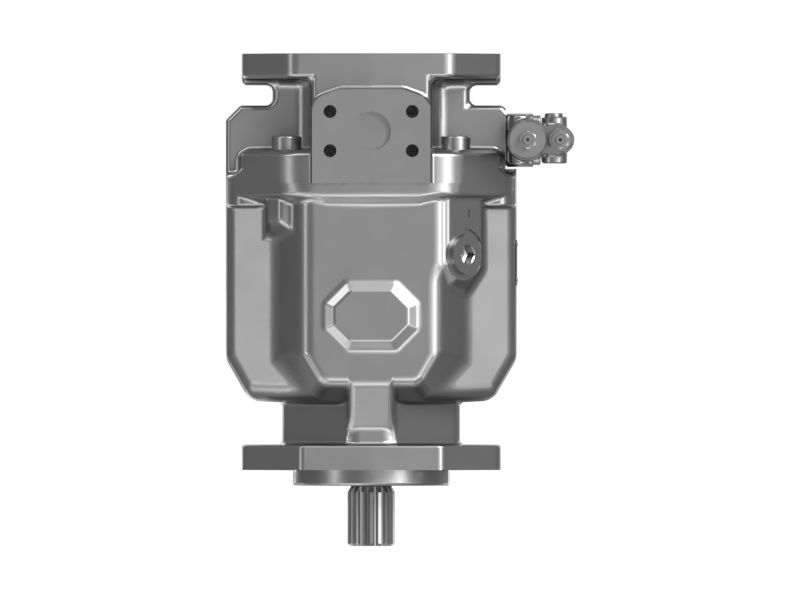

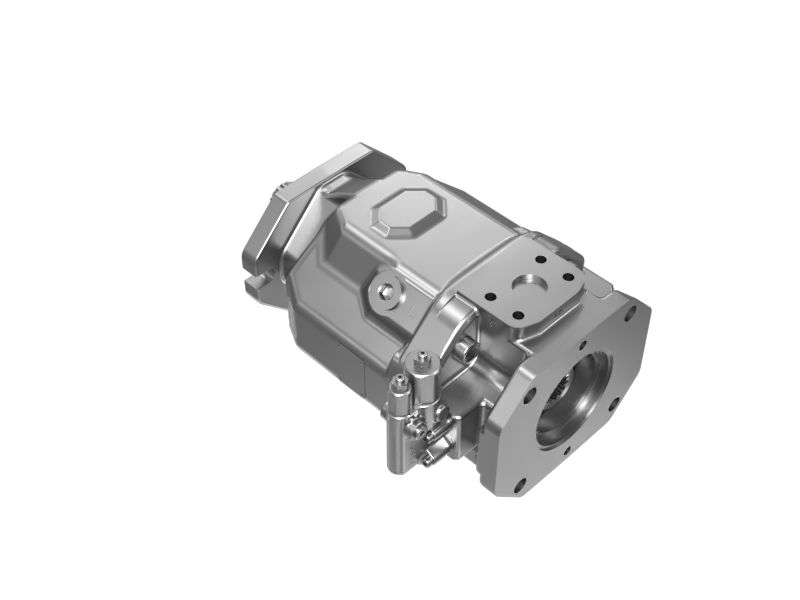

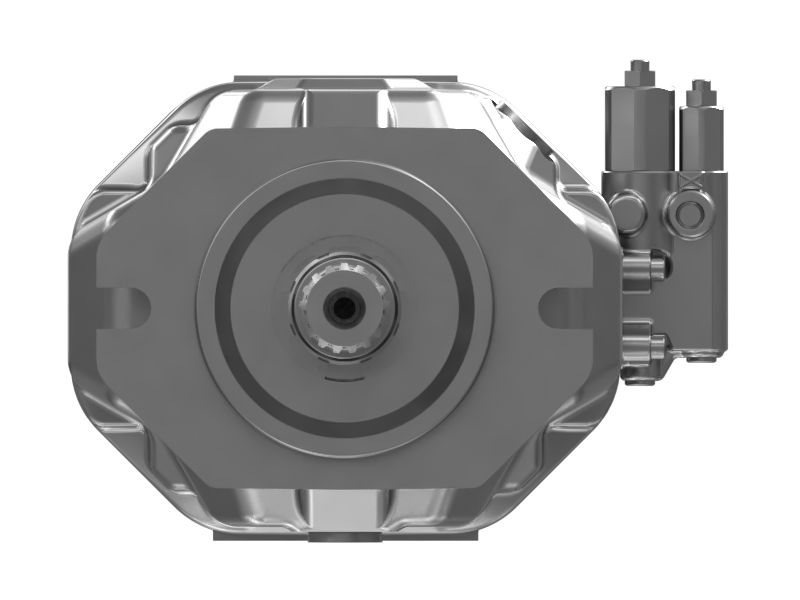

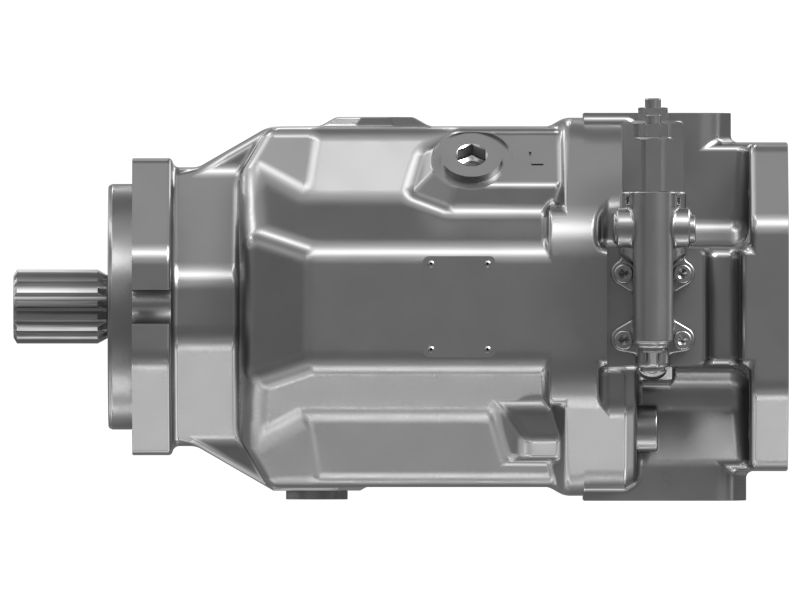

594-8207: Hydraulic Piston Pump

A Hydraulic Piston Pump is to provide the force required for the actuation of hydraulic cylinders. These cylinders are responsible for powering functions like lifting, lowering, tilting, and steering. The hydraulic piston pump generates a high-pressure fluid flow that is directed to the hydraulic cylinders, resulting in the movement and control of different mechanical components.

Attributes:
• Converts mechanical power into hydraulic energy.
• Provides efficient fluid transfer with minimal energy loss.
• Ensures a steady and reliable power supply for continuous operation.
• Cutoff pressure 29500 kPa.
• Margin pressure 2100 kPa.
• Maximum outlet pressure 28000 kPa.
• Maximum continuous case pressure 100 kPa.
• Max cold start case pressure 200 kPa.
• Maximum case temperature 105 degrees Celsius.

Applications:
A Hydraulic Piston Pump is utilized to flow pressurized hydraulic fluid, enabling the proper operation of different components within a hydraulic unit.

• Overall Length (mm): 207

• Overall Length (in): 8.15

• Overall Width (mm): 283

• Overall Width (in): 11.14

• Overall Height (mm): 400

• Overall Height (in): 15.75

• Thread Size (in - TPI) (in): 7/16 - 14 UNC - 2B

• Color: Cat Yellow

• Material: Steel,Carbon Steel

• Weight (kg): 55.4

• Weight (lb): 122.14
