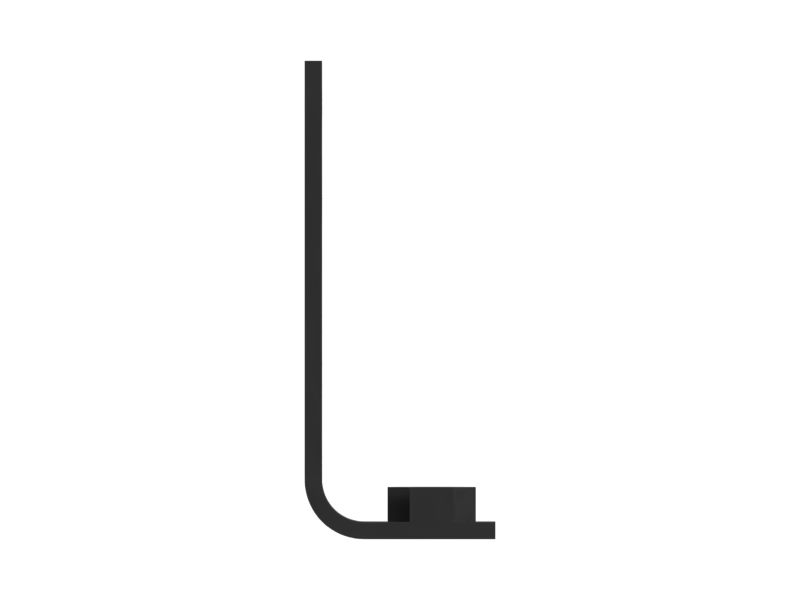

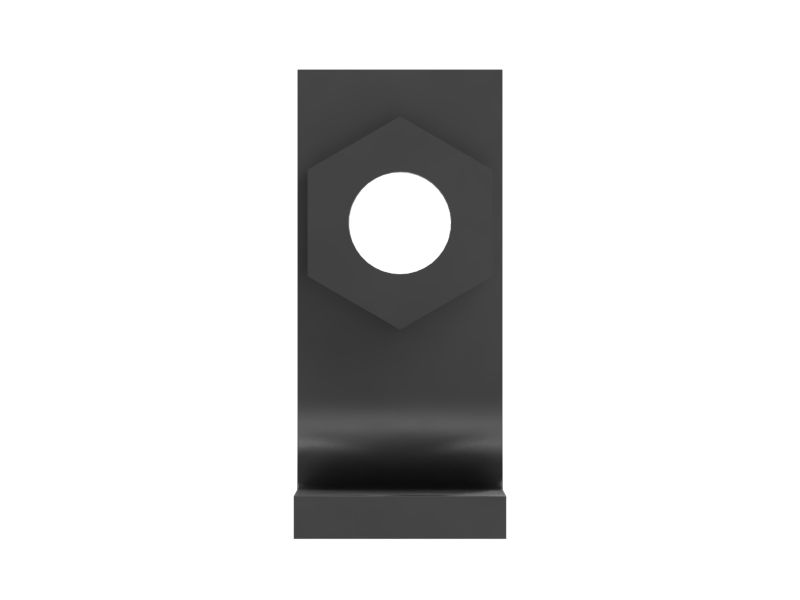

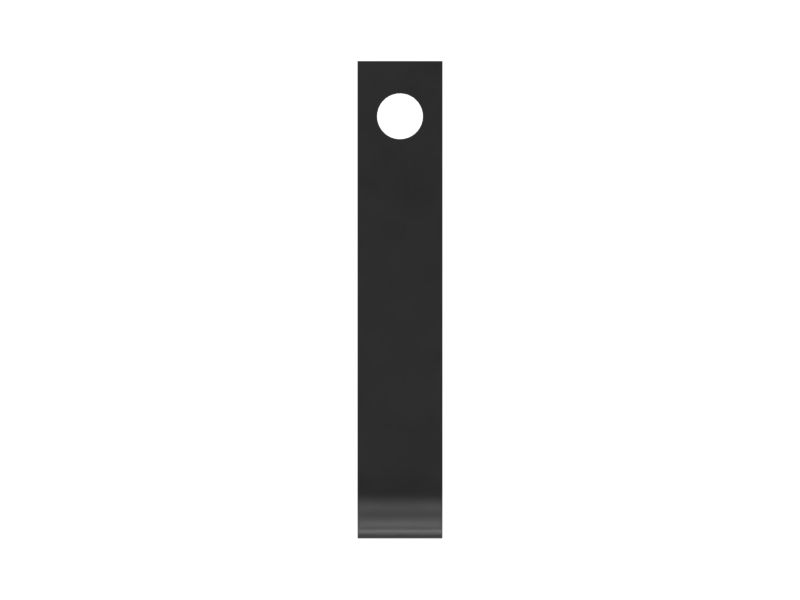

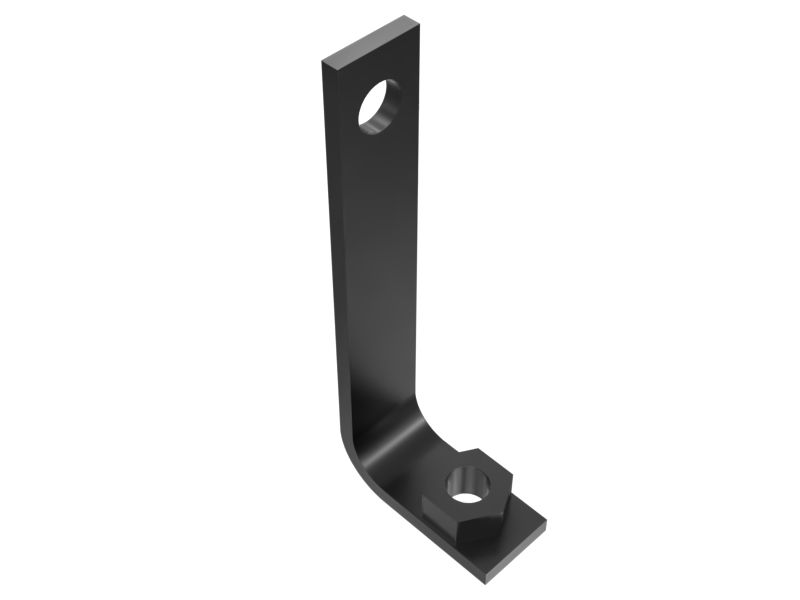

593-8490: Oil Cooler Lines Clip Support Bracket

A Printed Circuit Board Plate serves as a platform for mounting and interconnecting electronic components to create functional circuits. A thin layer of copper foil is laminated onto the surface of the board, which is then etched to create conductive pathways. These copper traces serve as the electrical connections between the components mounted on the board, allowing for the flow of electric current and signals throughout the circuit.

Attributes:
• Eliminate the need for extensive wiring, simplifying the assembly process and reducing the risk of wiring errors
• Manufactured to precise specifications and are built for durability and reliability

Applications:
A Printed Circuit Board Plate acts as a platform to mount and hold electronic components in place. It provides a stable and rigid structure to support the components. It uses conductive copper traces and pads to enable electrical connections between the components mounted on it.

• Overall Length (in): 4.45

• Overall Length (mm): 113

• Overall Width (in): 1.77

• Overall Width (mm): 45

• Weight (kg): 0.1

• Weight (lb): 0.22
