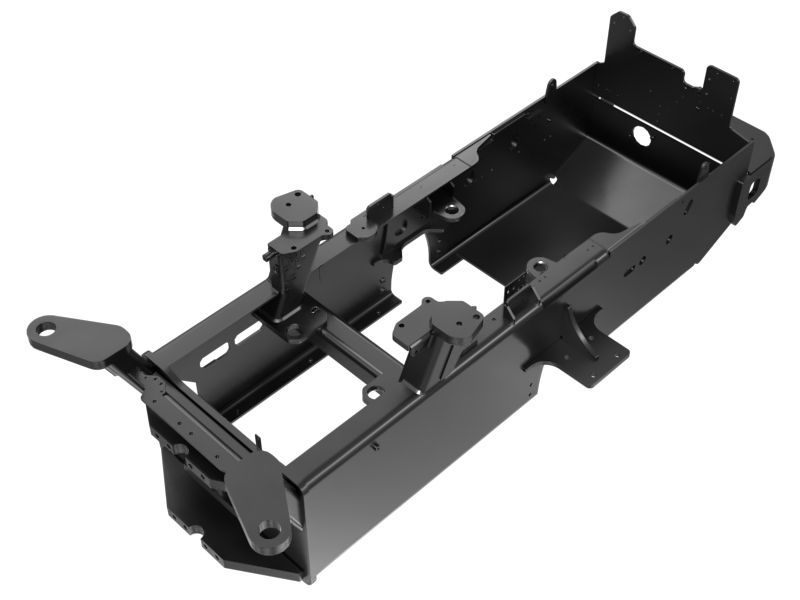

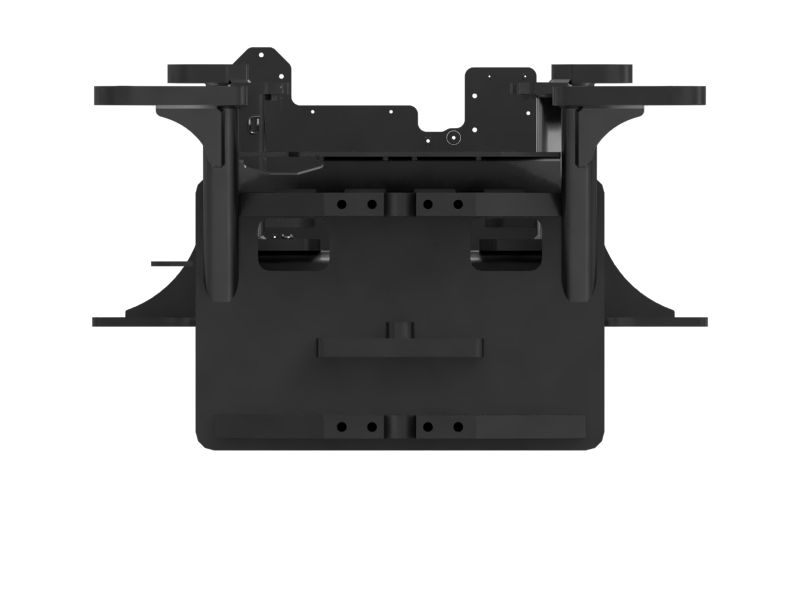

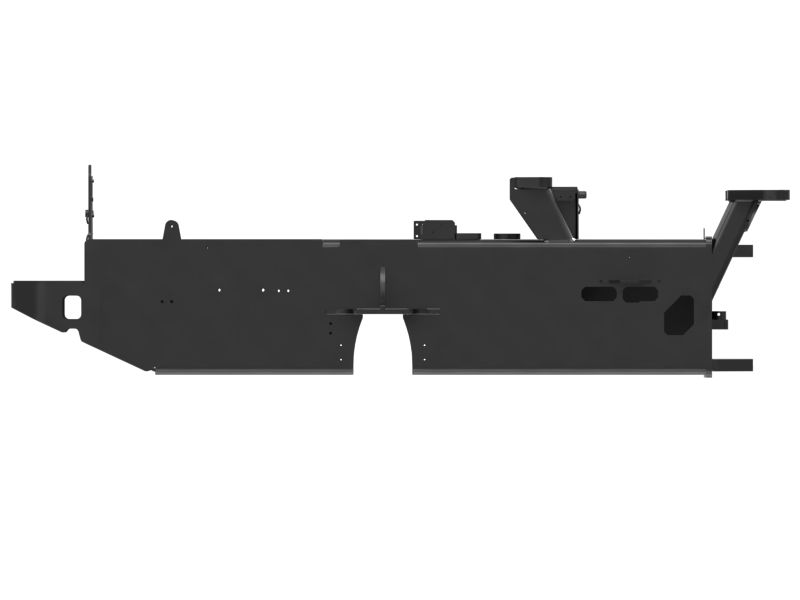

591-3684: Engine End Rear Frame

An Engine End Rear Frame serves multiple functions related to engine support, stability, and component integration. It is a robust structure that forms the rear section of the engine compartment and housing. This frame supports the engine and its associated components like mounts, brackets, and ancillary systems like exhaust and cooling assemblies. It provides structural integrity to the engine assembly, ensuring stable operation under varying loads and conditions. The design of the rear frame includes mounting provisions for other vehicle components, such as fuel tanks, hydraulic systems, and additional equipment attachments.

Attributes:
• Provides structural support and rigidity to the engine assembly.
• Withstands dynamic loads and vibrations from the engine.
• Provides stability for engine operation under varying conditions.
• Enhances equipment stability and weight distribution.

Applications:
An Engine End Rear Frame is located at the rear end of the engine compartment, connecting the engine to the frame and ensuring proper alignment and support within the equipment structure.

• Weight (kg): 821.4

• Weight (lb): 1810.877

• Overall Width (mm): 1350

• Overall Width (in): 53.15

• Material: Alloy Steel,Alloy Mixed
