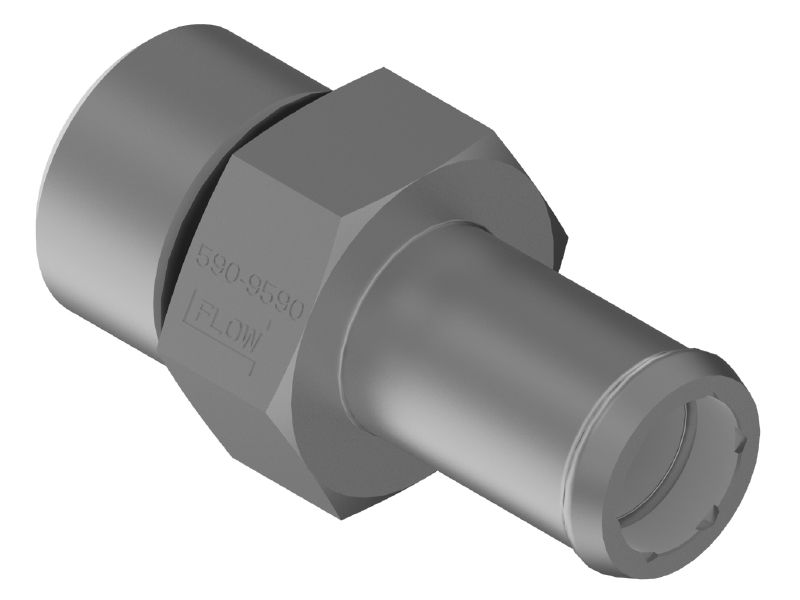

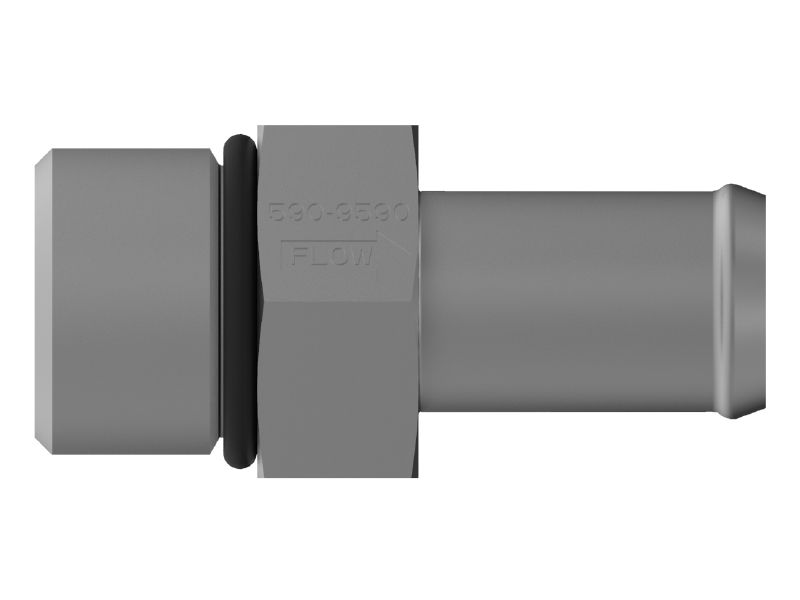

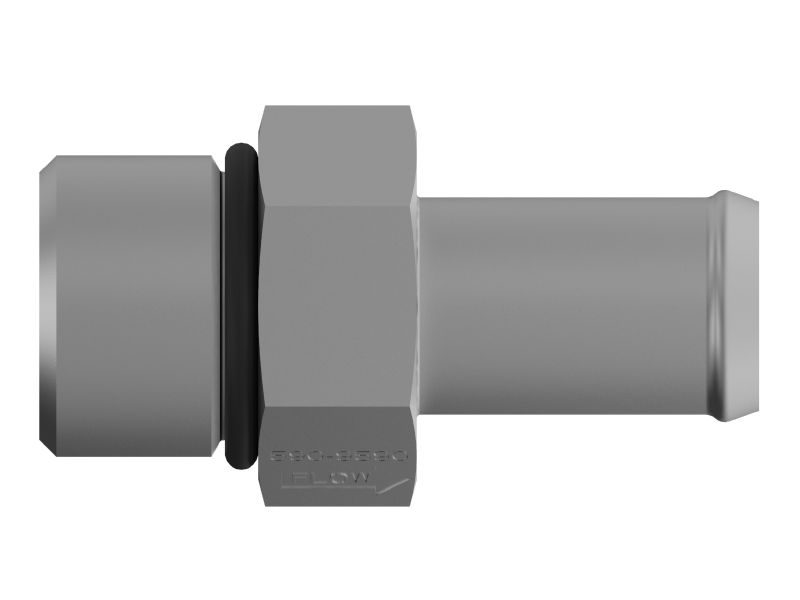

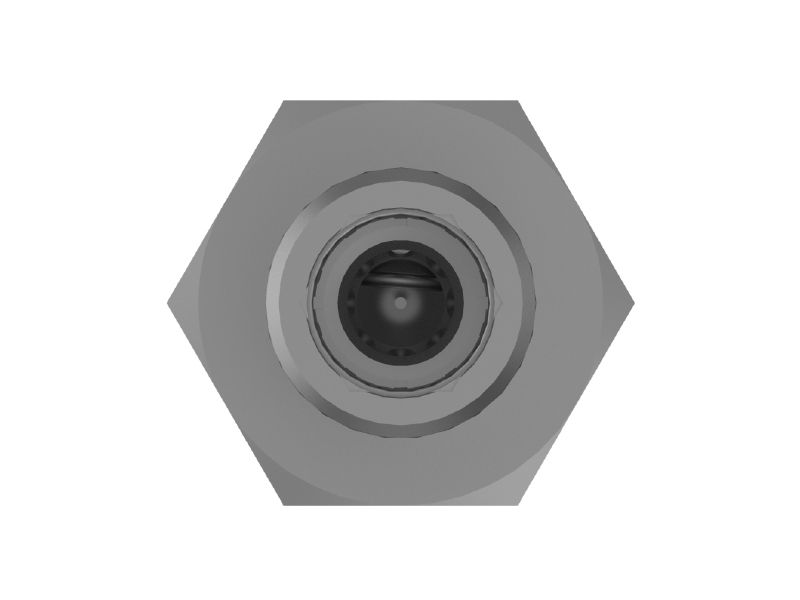

590-9590: 7/8" Hydrostatic Oil Lines Check Valve

The Hydrostatic Oil Lines Check Valve is designed to ensure the smooth operation and efficiency of the equipment. This valve is designed to allow fluid flow in one direction while preventing backflow, thereby maintaining optimal pressure levels within the system. When the hydraulic system is in operation, the valve opens to allow hydraulic fluid to pass through the lines, facilitating the movement of different components such as cylinders, motors, and actuators. When the pressure in the system drops or there is a risk of fluid backflow, the valve swiftly closes to prevent any reverse flow, safeguarding the integrity of the system.

Attributes:
• Crack pressure ranging from 275 to 325 kilopascal.
• Equipped with high-quality seals.
• Made from high-quality materials ensuring longevity.
• Engineered to withstand high-pressure levels.
• High flow capacity.

Applications:
The Hydrostatic Oil Lines Check Valve is used in controlling fluid flow within the hydraulic systems, ensuring efficient operation and preventing damage caused by pressure fluctuations.

• Length (mm): 52.6

• Length (in): 2.07

• Width (mm): 29.3

• Width (in): 1.15

• Hex Size (mm): 25.4

• Hex Size (in): 1

• Thread Size (in - TPI) (in): 7/8 - 14

• Material: Steel,Carbon Steel
