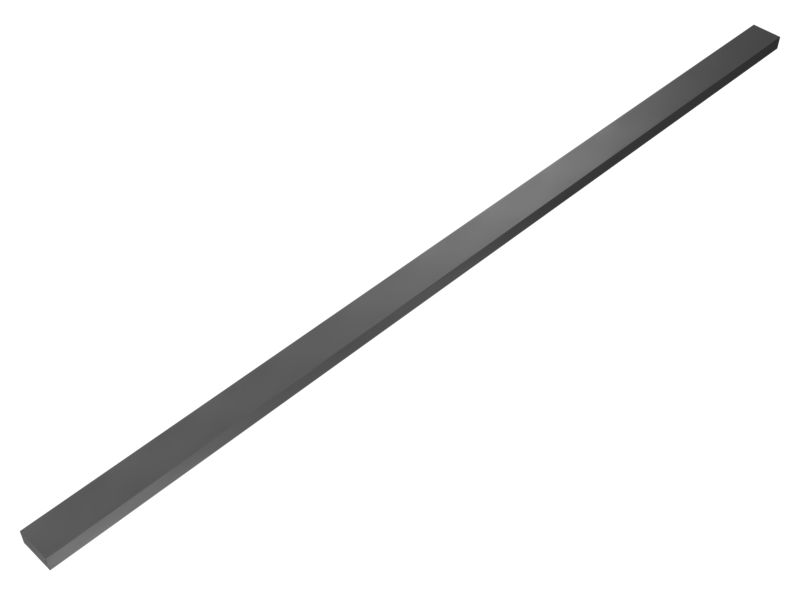

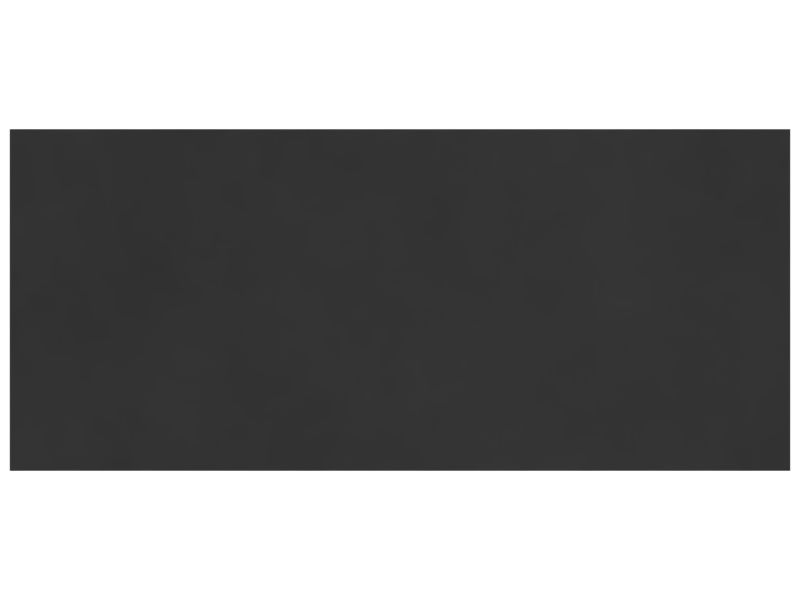

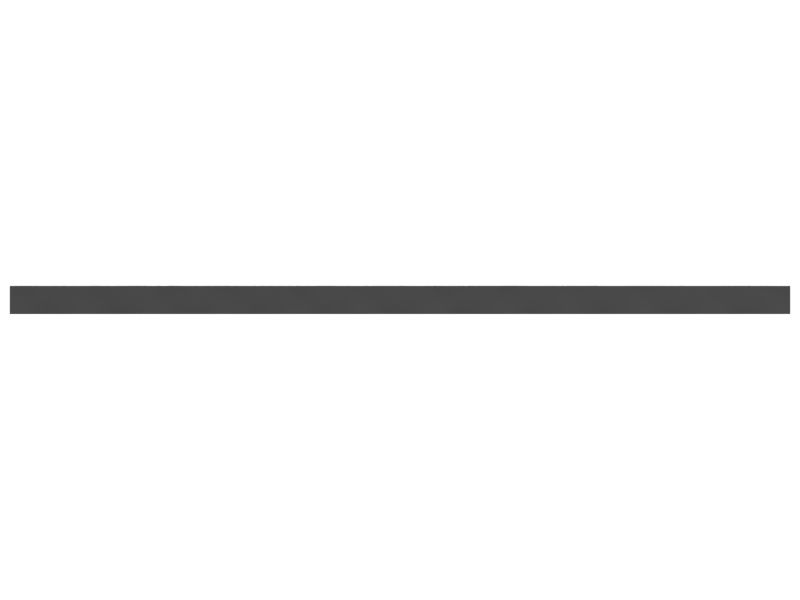

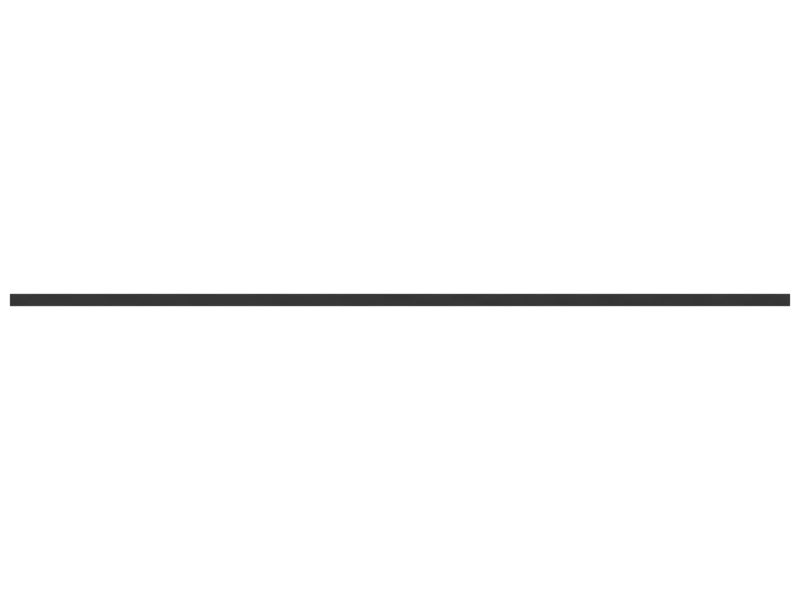

590-9585: 35mm Thick Bucket Outer Wear Plate

A Bucket Outer Wear Plate is a protective part that is used to protect the part of the bucket which is the primary contact point with the ground or material being excavated. This wear plate, made from a hard, abrasion-resistant material like hardened steel, is welded to the specific segment of the bucket's outer surface. It can be replaced when they get worn out, instead of having to replace the entire bucket.

Attributes:
• Helps absorb impacts from rocks, debris, or other hard materials encountered during digging or loading
• Hardened with Rockwell C scale hardness value of C20 to withstand surface damage caused by external forces
• Withstands the dynamic forces and vibrations generated during machine operation

Applications:
A Bucket Outer Wear Plate is used to protect the outer surface of the extreme service buckets from abrasion caused by contact with the ground, rocks, and other materials. It serves as a sacrificial layer, absorbing the wear and reducing damage to the bucket's structural components.

• Material: Steel,Abrasion Resistant Steel,Boron Steel

• Length (mm): 2246

• Length (in): 88.43

• Width (mm): 80

• Width (in): 3.149

• Thickness (mm): 35

• Thickness (in): 1.377

• Weight (kg): 49.43

• Weight (lb): 108.974
