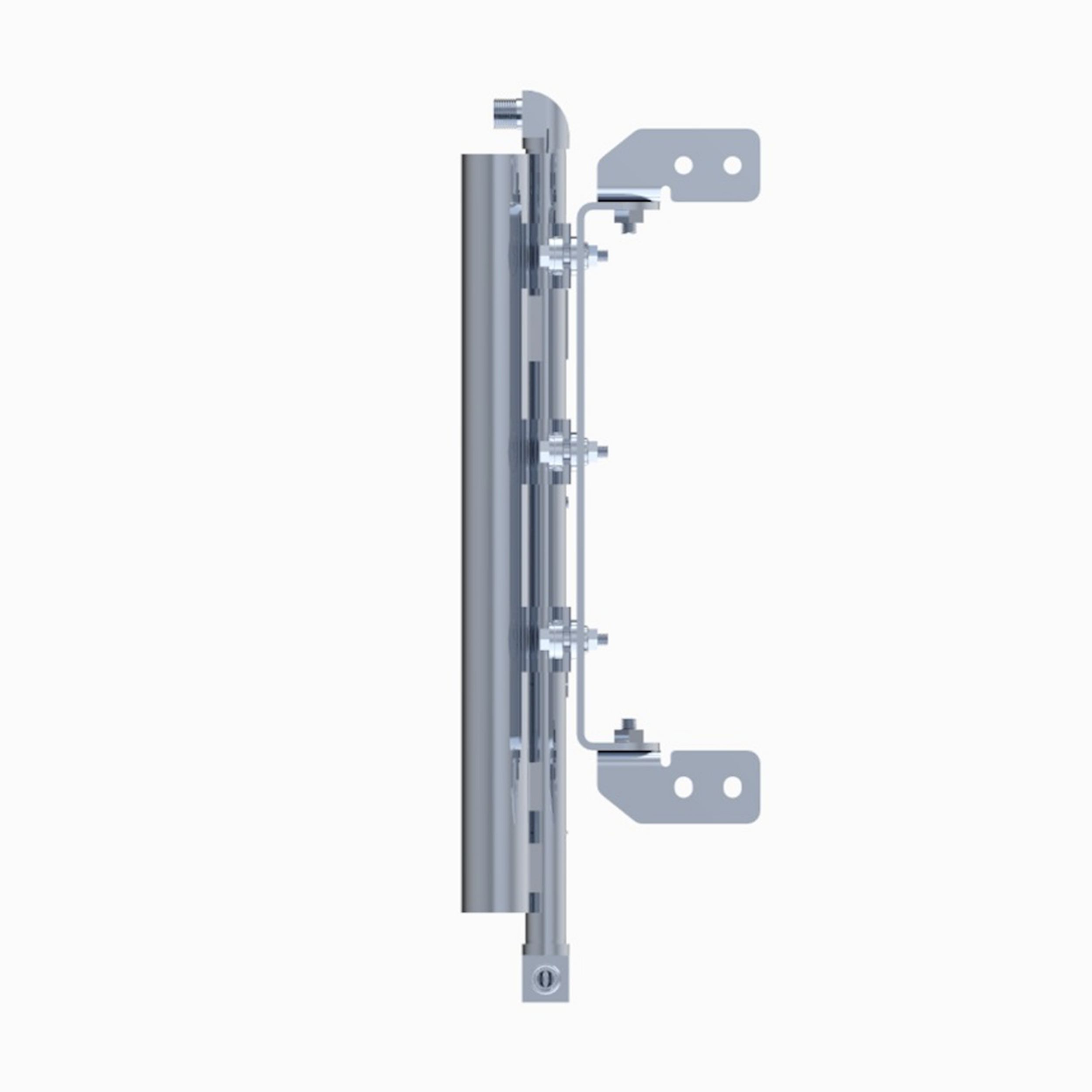

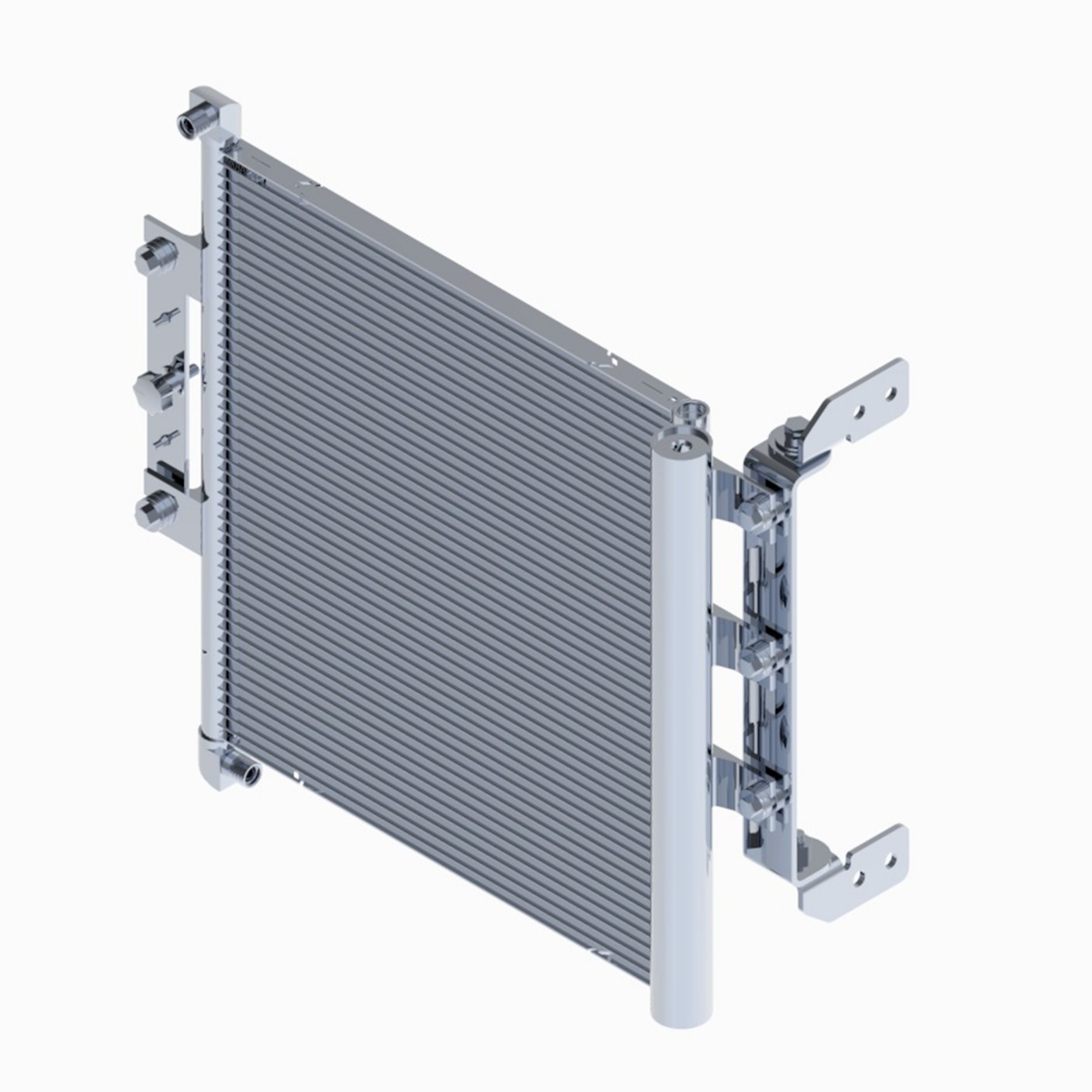

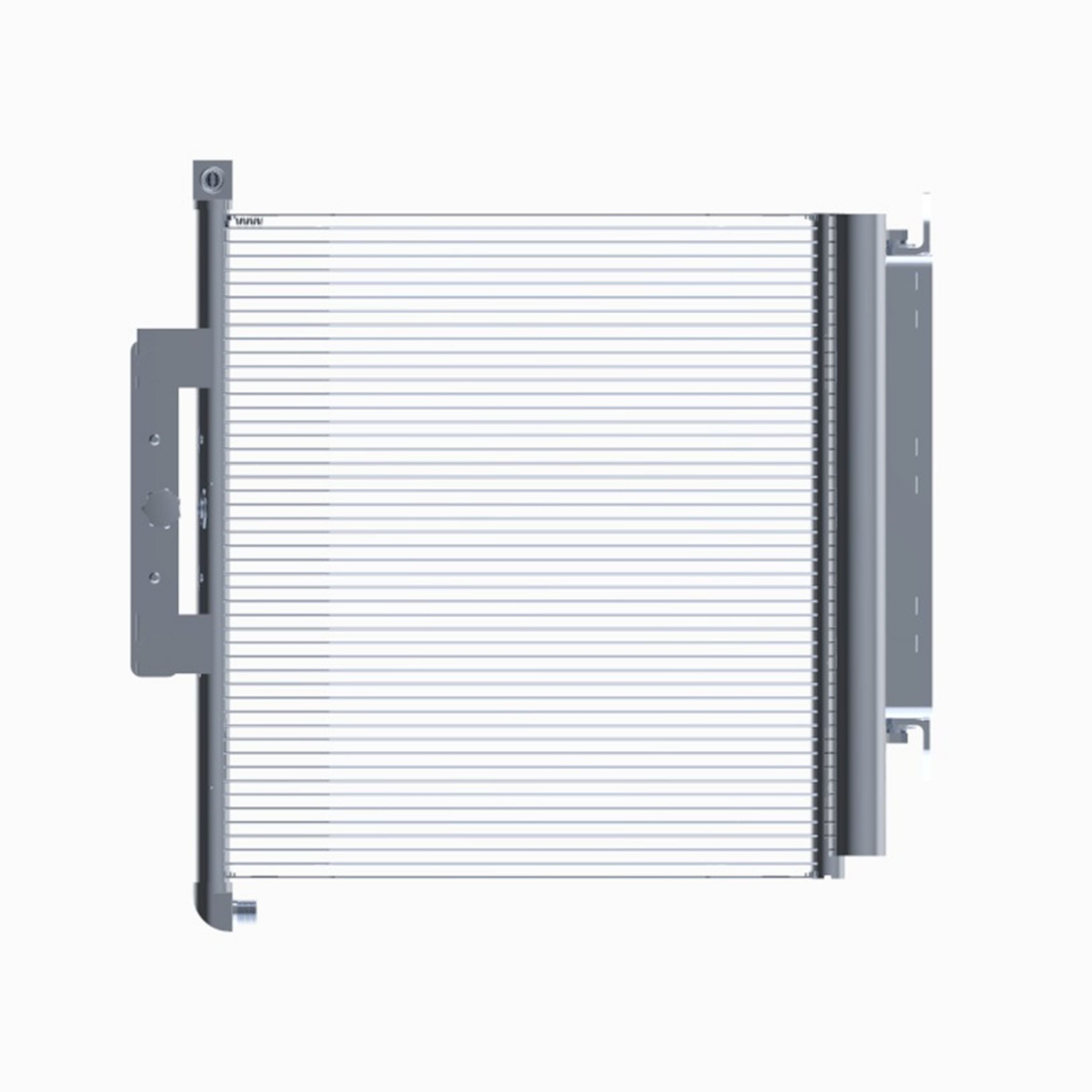

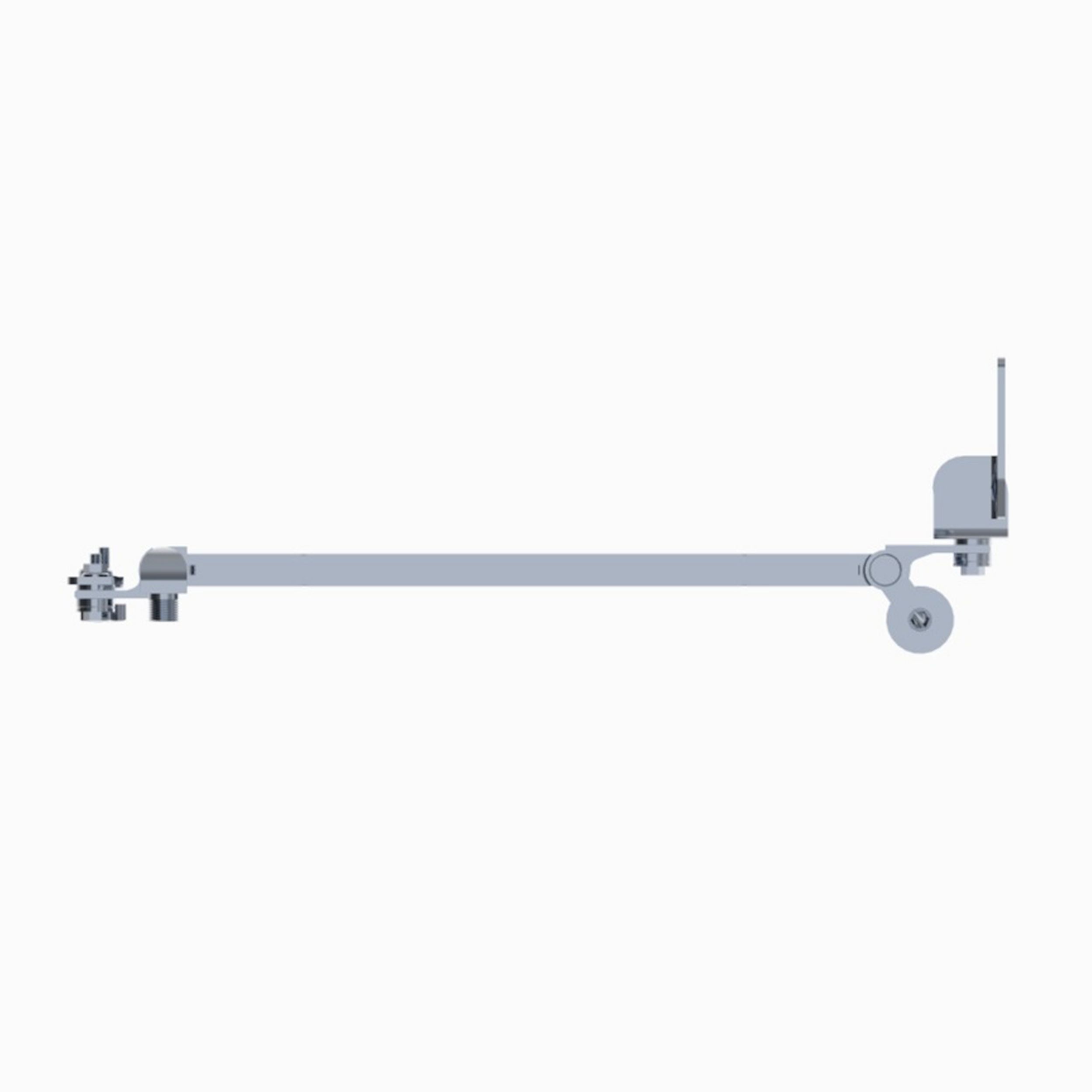

590-1548: Condenser Group

Description:
The HVAC system provides heating, cooling and filtering of fresh and/or recirculating air in the operator compartment of a Cat machine. The goal is to provide thermal comfort for the operator. Cat condenser assemblies provide large surface areas for heat exchange to condense the fluid inside. Condenser and drier condenser should be replaced when there is a major compressor failure. Flushing will not completely remove debris from the coils.

Application:
Condenser used in Cat heavy-duty equipment to cool air conditioner refrigerant in a pressurized HVAC system. Consult your owner's manual or contact your local Cat Dealer for more information. Quality you expect for your equipment.

• Overall Length (mm): 580.30

• Overall Length (in): 22.85

• Overall Height (mm): 559.00

• Overall Height (in): 22.01

• Overall Width (mm): 183.20

• Overall Width (in): 7.21

• Approx. Weight (kg): 4.78

• Approx. Weight (lb): 10.5

• Material: Alloy Aluminum,Ethylene propylene diene terpolyme
