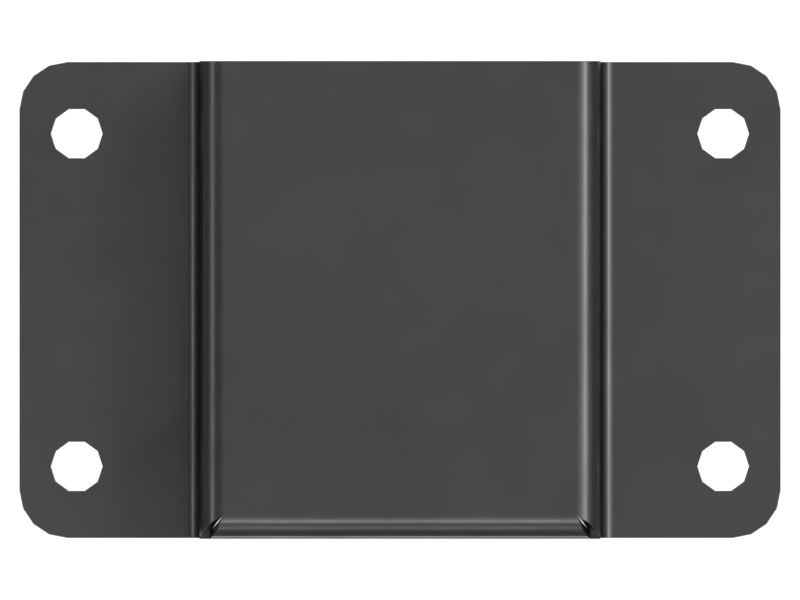

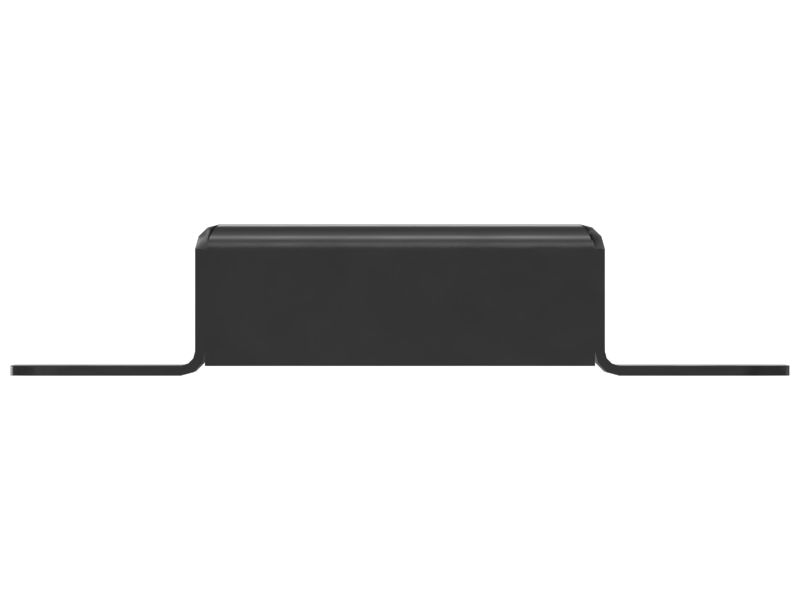

588-9591: Steering Sensor Mounting Cover

The Hydraulic Cylinder is responsible for converting hydraulic energy into accurate mechanical motion. When pressurized hydraulic fluid enters the cylinder, it pushes against the piston, generating linear force that extends and retracts the rod. This motion is used to perform functions such as lifting, pushing, pulling, or tilting equipment components.

Attributes:
• Endures repetitive cycles of operation.
• Resistant to damage from impacts and external forces.
• Withstand high compression forces.
• Sealed to prevent fluid leakage and contamination.

Applications:
The Hydraulic Cylinder is positioned as part of the hydraulic system, integrated into equipment structures where linear force and motion are required and is to convert hydraulic fluid pressure into linear mechanical force.

• Height (in): 1.22

• Height (mm): 31

• Hole Size (in): 0.43

• Hole Size (mm): 11

• Length (in): 6.3

• Length (mm): 160

• Material: Steel,Carbon Steel

• Thickness (in): 0.08

• Thickness (mm): 2

• Weight (kg): 0.41

• Weight (lb): 0.91

• Width (in): 3.94

• Width (mm): 100
