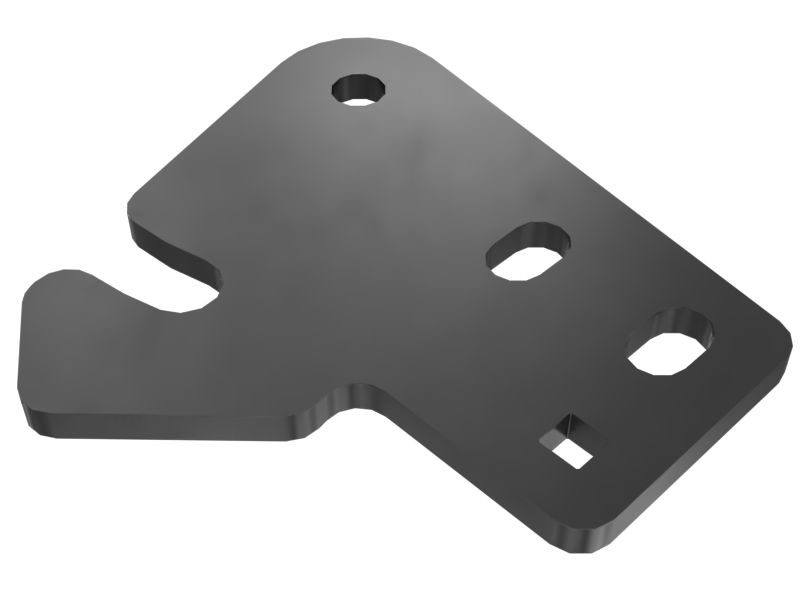

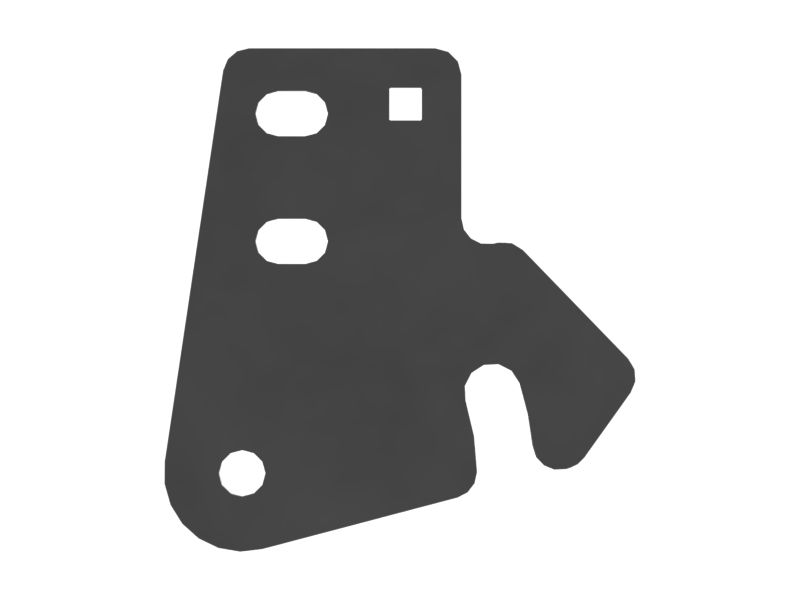

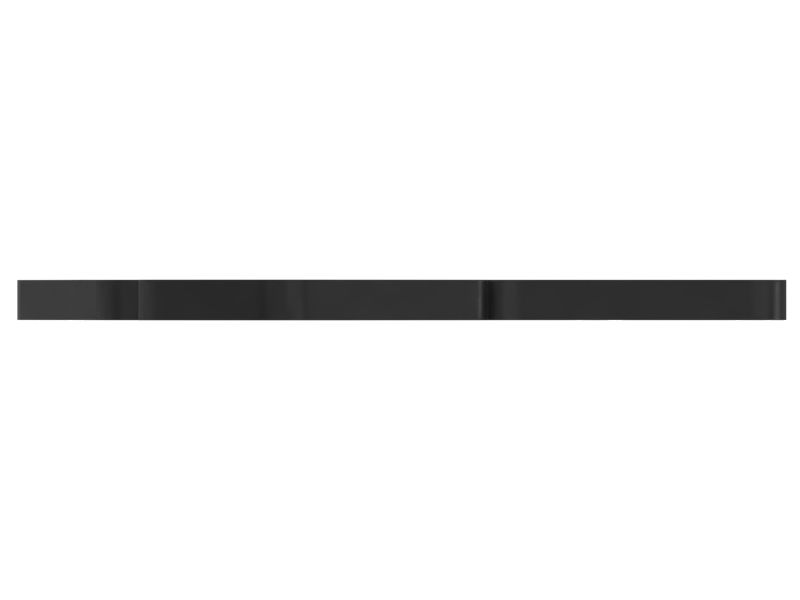

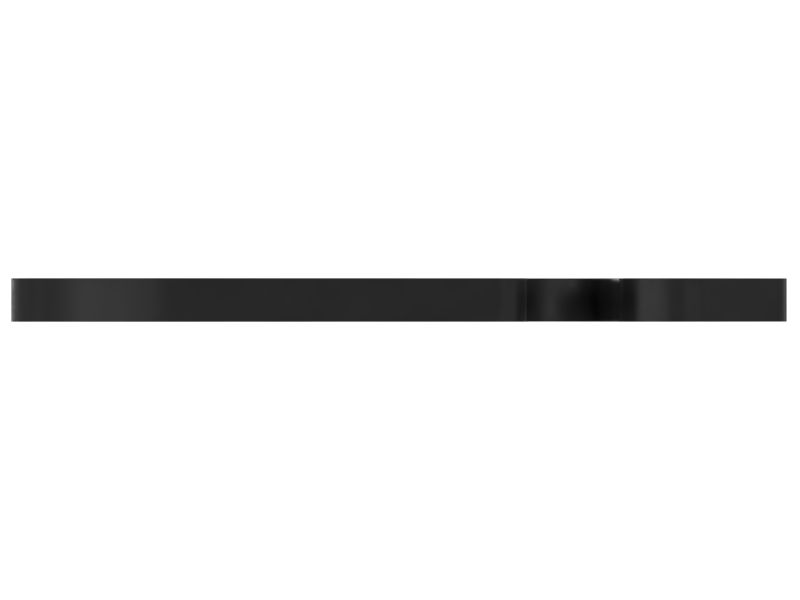

588-3522: Water Spray Bar Mounting Plate

A Water Spray Bar Mounting Plate offers a stable and reliable connection point, ensuring proper positioning and alignment of the spray bar within the mixing chamber. It is made of a durable material, such as steel, capable of withstanding exposure to water and the operating conditions of the mixing chamber. It is positioned on the mixing chamber assembly in a location that allows for effective water distribution. It features holes, slots, or other attachment points that align with corresponding mounting features on the spray bar and the mixing chamber.

Attributes:
• Minimizes vibration or movement of the spray bar, maintaining consistent water distribution
• Prevents potential issues such as water leakage or uneven spray patterns
• Provided with 3 mounting slots and a hole to fit with the fastener of size M16

Applications:
A Water Spray Bar Mounting Plate provides a secure connection between the water spray bar and the mixing chamber. It ensures that the spray bar remains in place during operation, preventing movement or misalignment that may compromise water distribution.

• Material: Structural Steel
