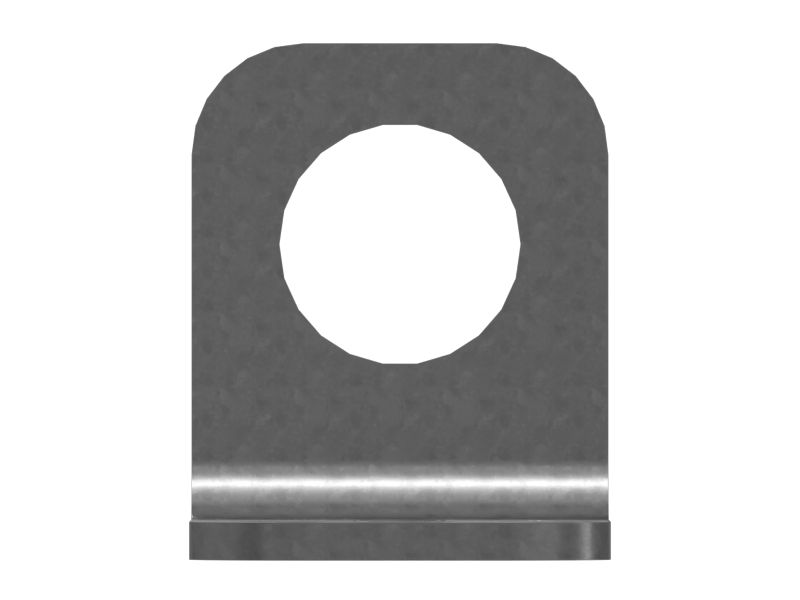

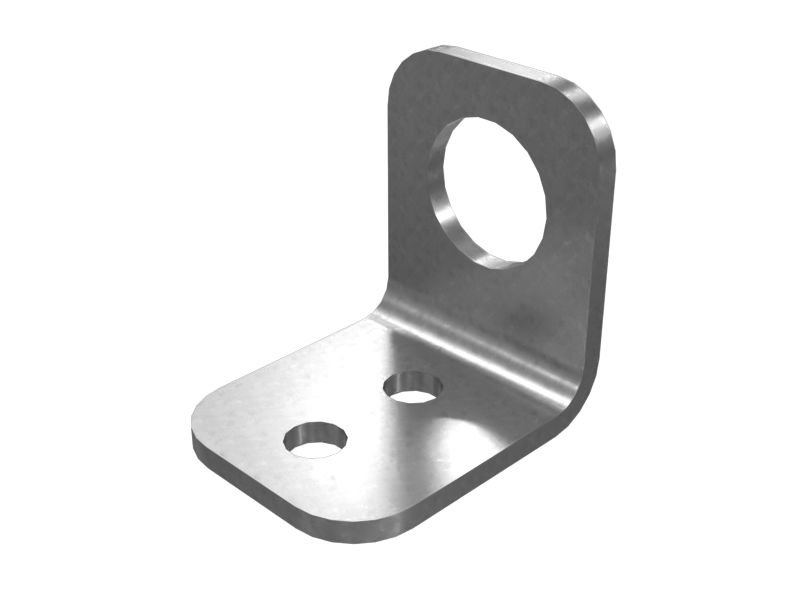

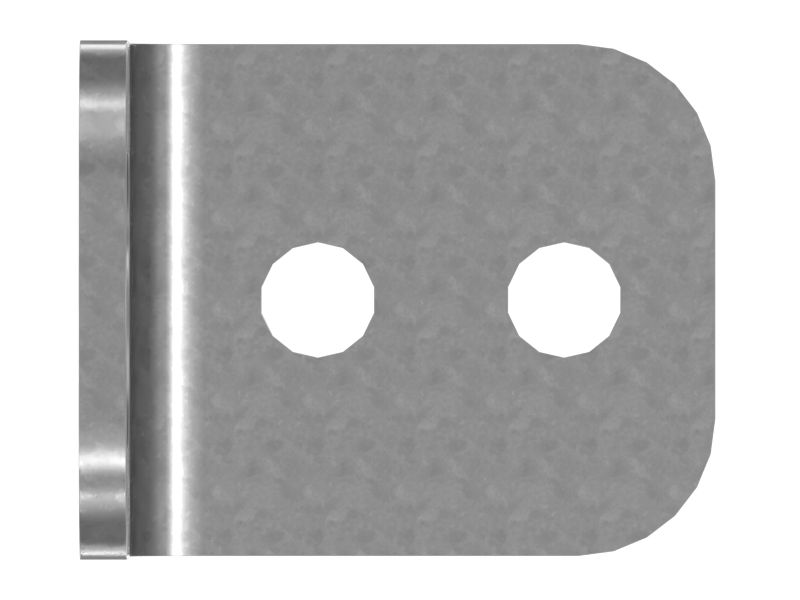

588-1762: Mounting Plate (Bracket)

Description:
Plate (bracket) part # 588-1762 provides mounting and support for the axle cooling lines on the R2900 XE Load Haul Dump.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine.

Attributes:
• 90° angle bracket
• Length: 69 mm (2.72 in) (Both Legs)
• Width: 56 mm (2.20 in)
• Thickness: 5 mm (0.20 in)
• Color: Cat Yellow
• Hole Size: 32.5 mm (1.28 in), 12.7 (0.50 in) (2X)

Application:
R2900 XE Load Haul Dump
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Steel,Structural Steel

• Standard Color: Cat Yellow

• Length (mm): 69 (Both Legs)

• Width (mm): 56

• Thickness (mm): 5

• Hole Size (mm): 32.5, 12.7 (2X)

• Length (in): 2.72 (Both Legs)

• Width (in): 2.20

• Thickness (in): 0.20

• Hole Size (in): 1.28, 0.50 (2X)
