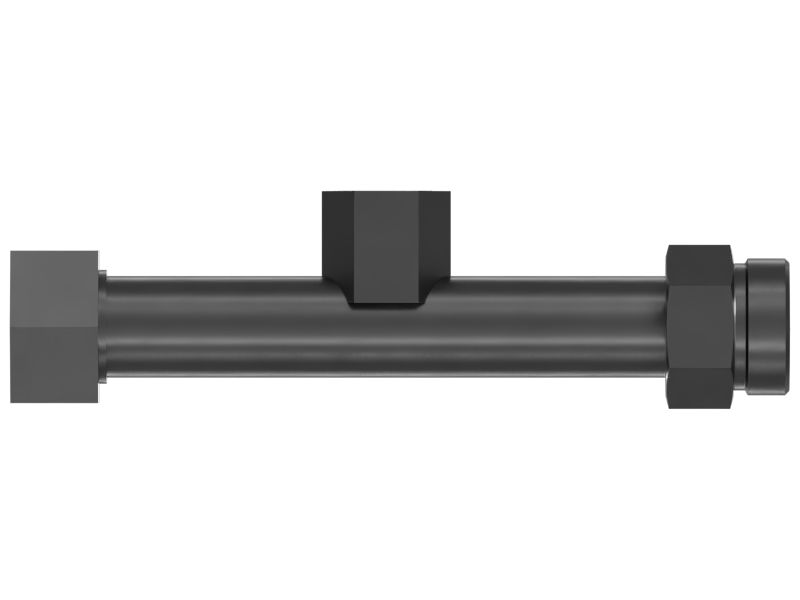

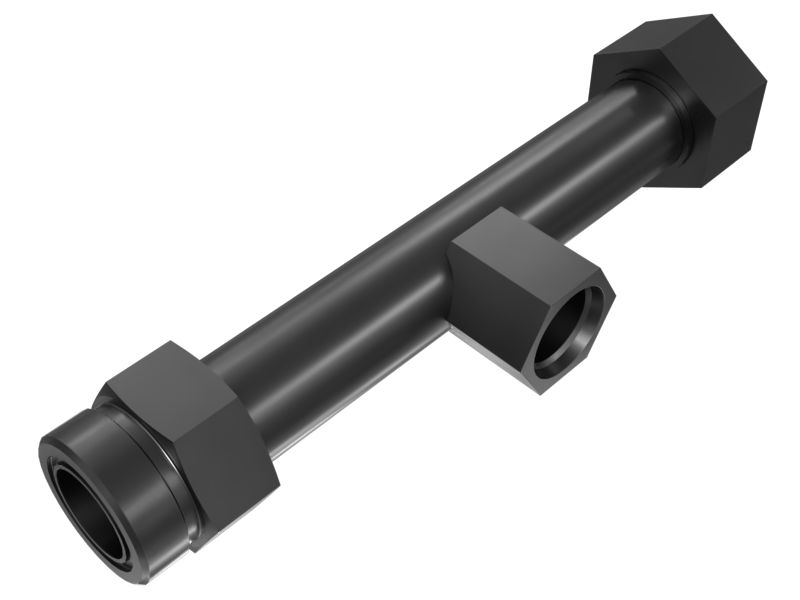

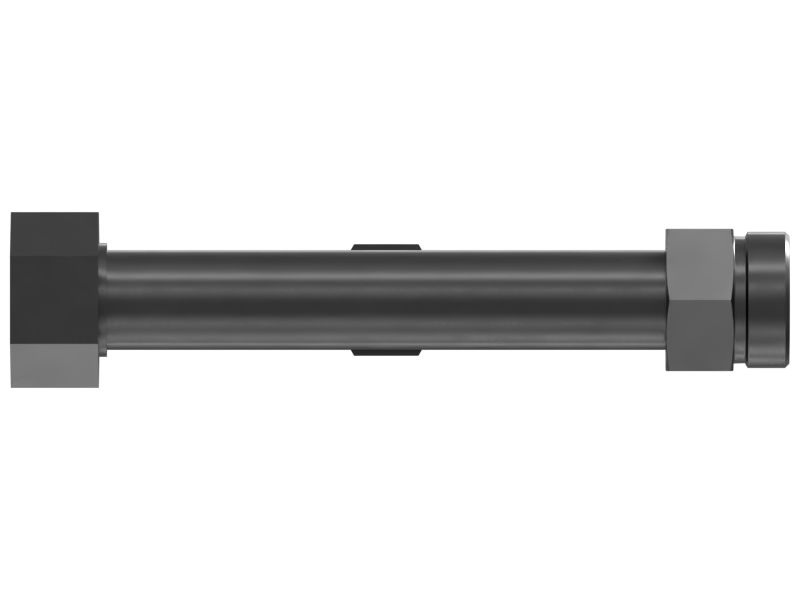

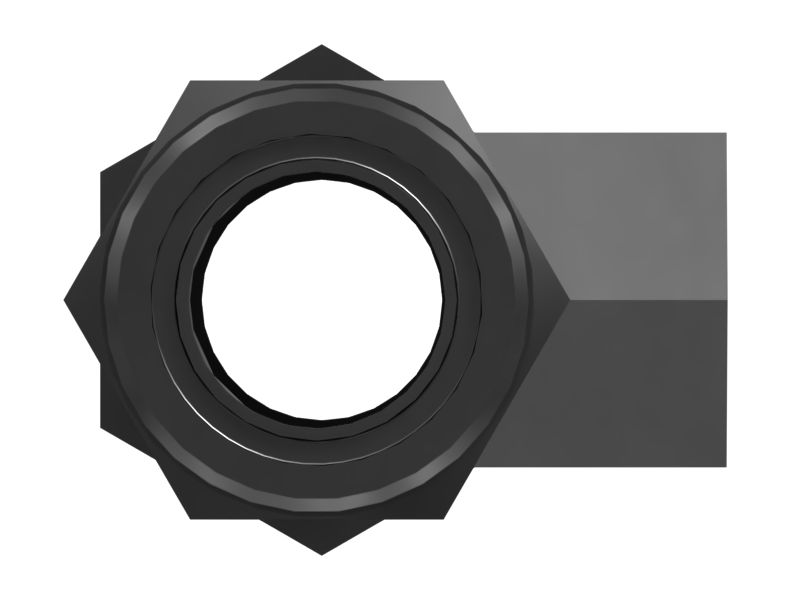

584-8226: Hydraulic Oil Tube

A Hydraulic Lines Tube Assembly is responsible for transporting hydraulic fluid under pressure from the pump to the connected parts in the unit. The assembly features a Swivel Nut, Sleeve, and connector to ensure secure attachment with the pump. The tube's size and diameter are made to match the requirements of the hydraulic unit.

Attributes:
• Ensures efficient fluid flow within the hydraulic unit
• Provides precise pressure transmission

Applications:
A Hydraulic Lines Tube Assembly is used to ensure efficient operation of the implement pump by properly transporting the hydraulic fluid without any leaks.

• Overall Length (mm): 243.8

• Overall Length (in): 9.6

• Overall Width (mm): 55

• Overall Width (in): 2.17

• Overall Height (mm): 68.2

• Overall Height (in): 2.69

• Tube Diameter (mm): 31.75

• Tube Diameter (in): 1.25

• Side Wall Thickness (mm): 1.65

• Side Wall Thickness (in): 0.06

• Working Pressure (kPa): 350

• Working Pressure (psi): 50.76

• Color: Cat Yellow

• Weight (kg): 0.84

• Weight (lb): 1.86

• Material: Carbon Steel,Alloy Mixed
