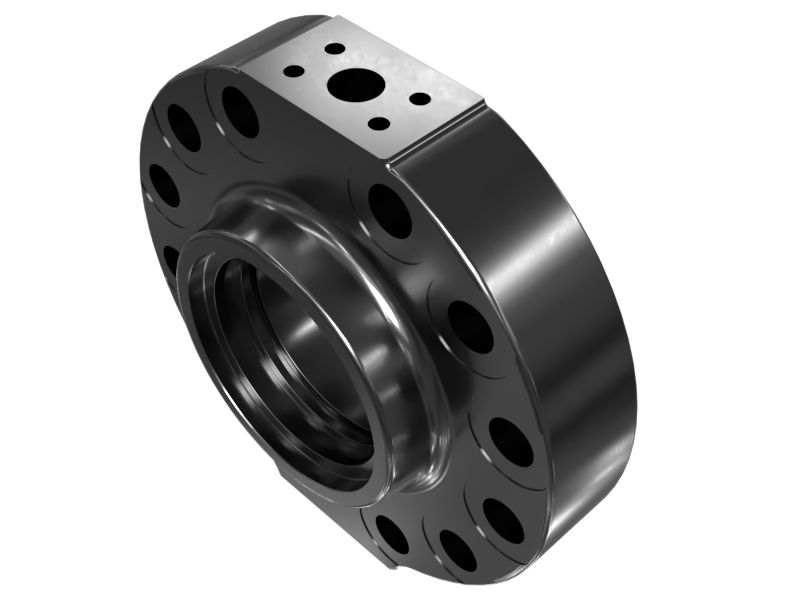

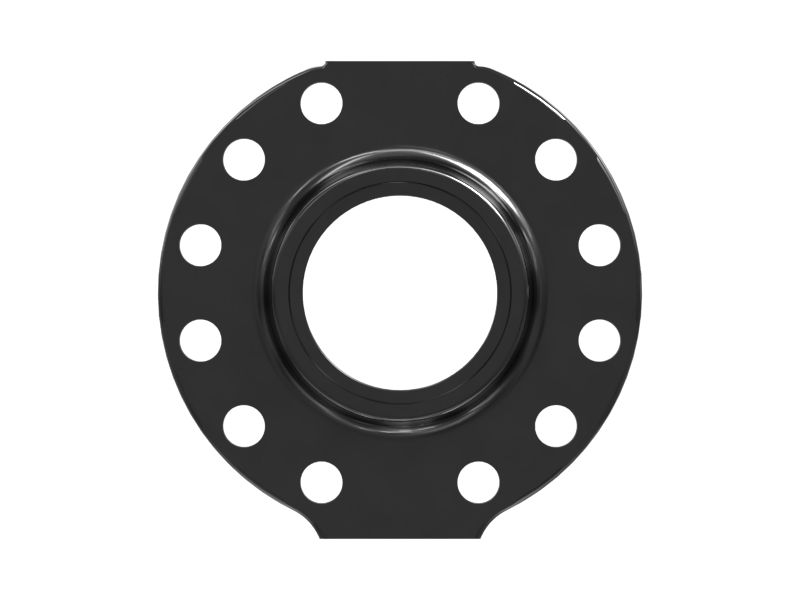

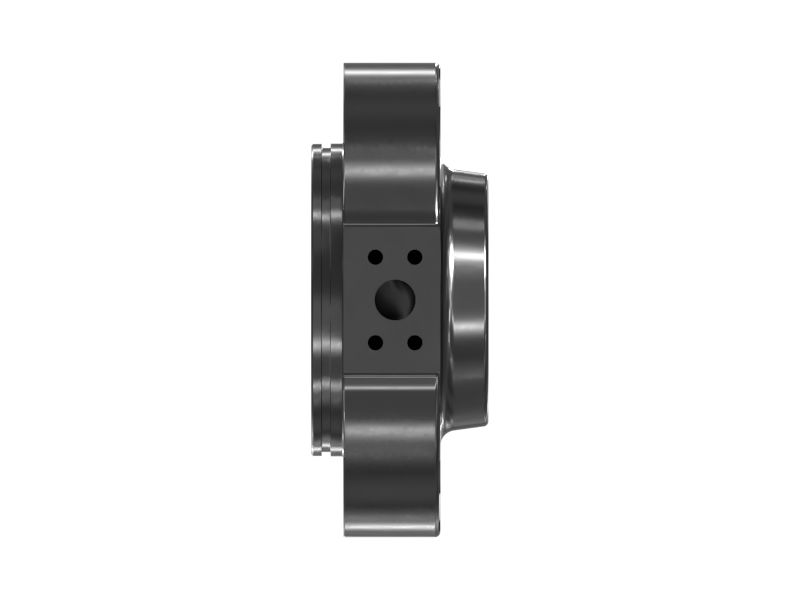

583-4738: Hydraulic Tilt Cylinder Head

The Hydraulic Tilt Cylinder Head is used to enhance the functionality of the tilt mechanism and is positioned at the upper enclosure of the tilt cylinder. This component forms a sealed chamber that houses hydraulic fluid. Its function is to facilitate controlled tilting movements and ensure accurate positioning of the equipment attached to the hydraulic unit. The cylinder head withstands the dynamic forces associated with tasks, ensuring stability and efficiency in the hydraulic cylinder.

Attributes:
• Optimizes hydraulic fluid flow for efficient tilt operation.
• Provides a sealed chamber for hydraulic fluid containment.

Applications:
The Hydraulic Tilt Cylinder Head is positioned at the top of the tilt cylinder assembly to provide a sealed chamber that houses hydraulic fluid for controlled tilting movements and accurate positioning of attached equipment during equipment operations.

• Inner Diameter (mm): 178.42

• Inner Diameter (in): 7.024

• Width (mm): 165

• Width (in): 6.496

• Hole Size (mm): 39, 38

• Hole Size (in): 1.535, 1.496

• Internal Thread: M16x2-6H

• Weight (kg): 83.95

• Weight (lb): 185.078

• Material: Ductile Iron Casting,Ductile (Spheroidal) Iron,Oi
