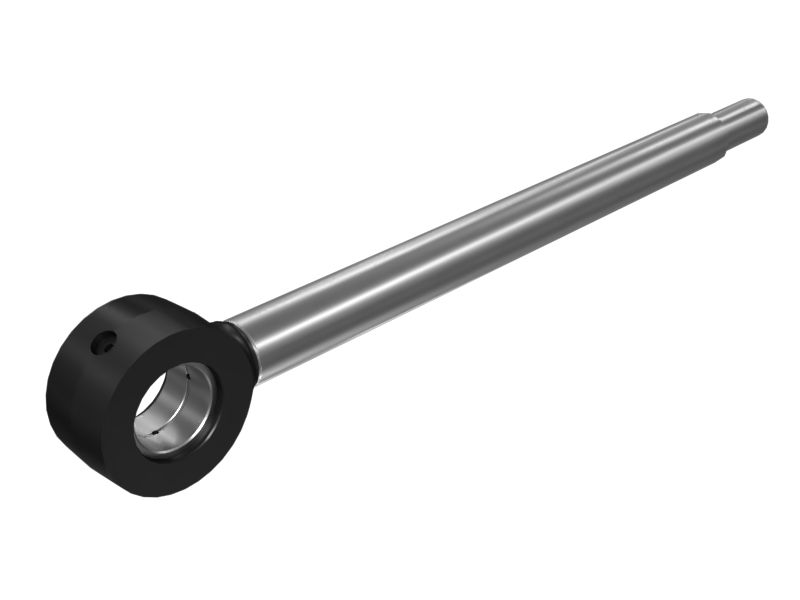

582-6609: 64.93mm Rod Diameter Steering Cylinder Rod

A Steering Cylinder Rod is a solid, high-strength shaft that forms the central core of the steering cylinder. It connects the piston inside the cylinder to the front frame of the machine. By extending or retracting the rod based on hydraulic pressure, the cylinder facilitates the articulation of the machine's front frame, enabling directional control. The rod is precisely machined for a smooth surface finish to minimize friction within the cylinder and ensure smooth operation.

Attributes:
• Withstands the significant forces involved in steering the machine's front frame
• Incorporated with a sleeve bearing in the rod eye to ensure a smooth surface between the eye and the linkage pin

Applications:
A Steering Cylinder Rod translates hydraulic pressure into linear motion to control the steering of the machine. The piston rod translates its extension and retraction movements to the front frame of the machine to enable precise steering of the machine.
