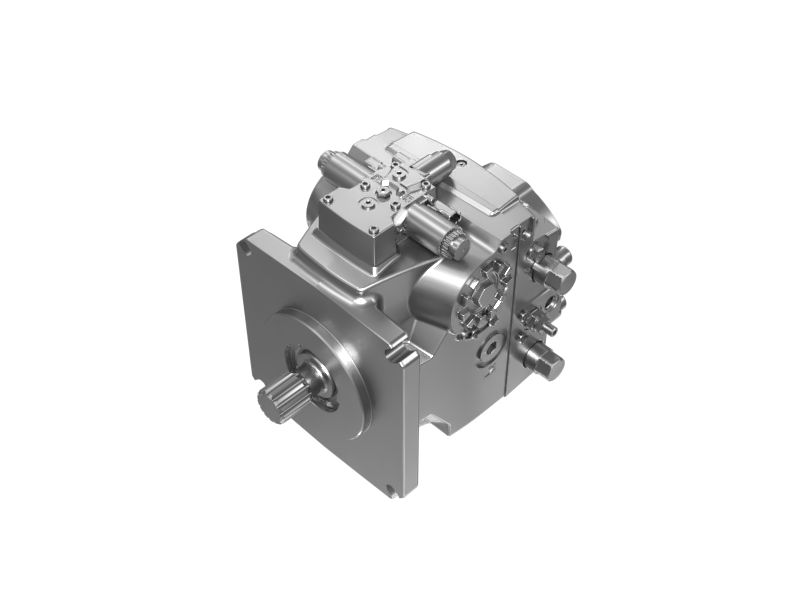

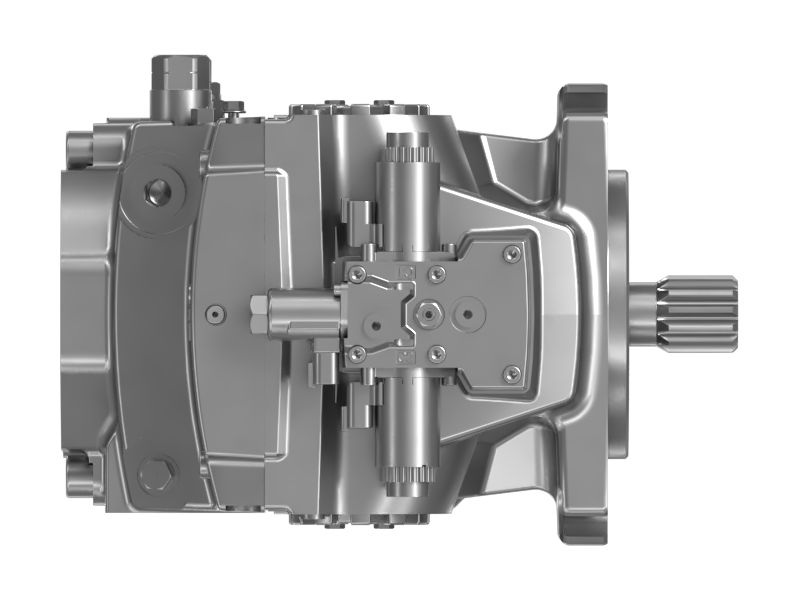

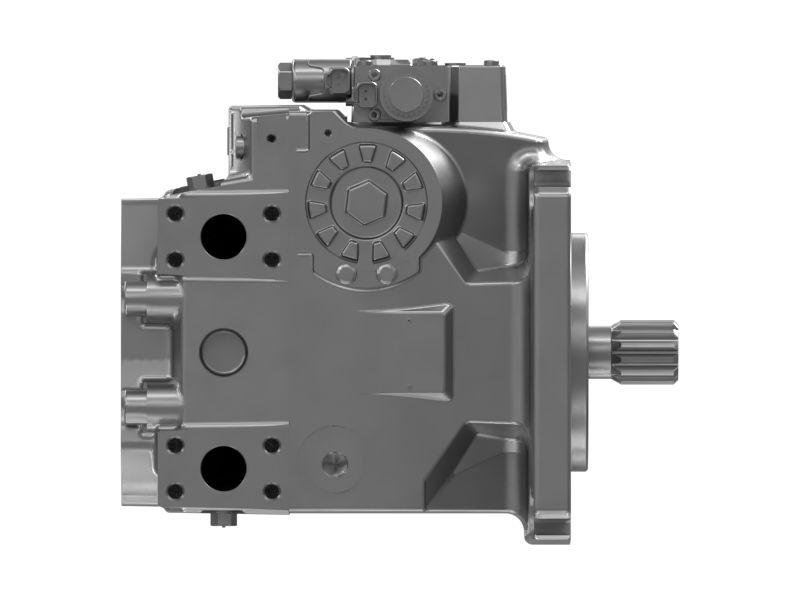

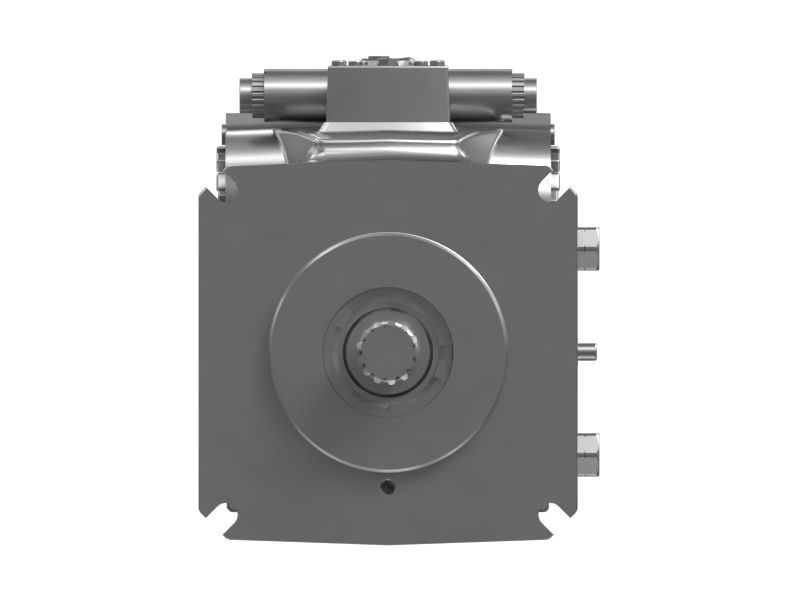

582-3434: Hydrostatic Piston Pump

The Hydrostatic Piston Pump is designed to provide hydraulic power using pistons in a hydrostatic transmission system. This pump plays a role in facilitating variable-speed operation and control within the equipment, the hydrostatic piston pump ensures reliable and efficient hydraulic power delivery in the equipment.

Attributes:
• Rotation of the piston pump in a clockwise direction.
• Maximum speed of the piston pump is 3200 revolutions per minute.
• Displacement of the piston pump is 130 cubic centimeters.
• Maximum current of the piston pump is 920 milliampere.
• Facilitates optimal equipment operation by providing hydraulic energy.
• The control range of the piston pump is 330-820 milliamperes.

Applications:
The Hydrostatic Piston Pump is used to drive hydraulic motors, providing variable displacement and proper control in the equipment operations.

• Overall Length (mm): 385.5

• Overall Length (in): 15.18

• Overall Width (mm): 278.5

• Overall Width (in): 10.96

• Overall Height (mm): 339.1

• Overall Height (in): 13.35

• Weight (kg): 91

• Weight (lb): 200.62

• Material: Carbon Steel
