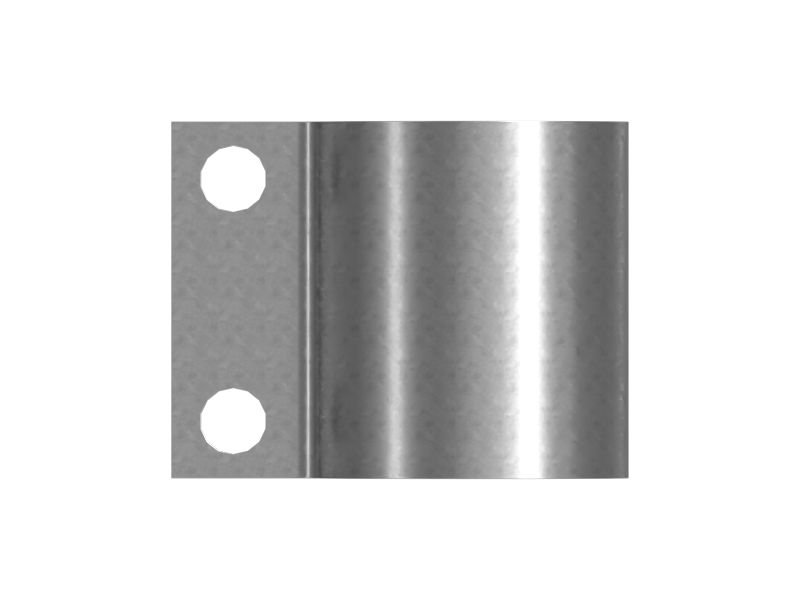

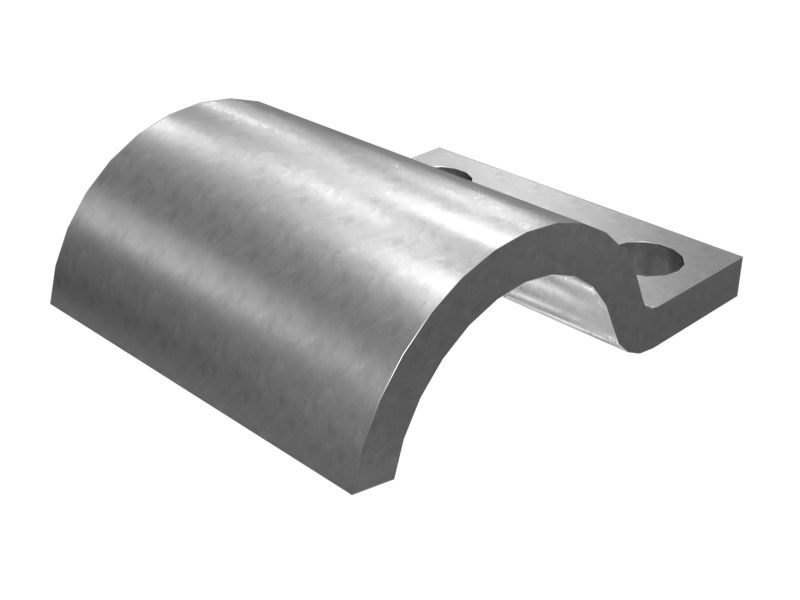

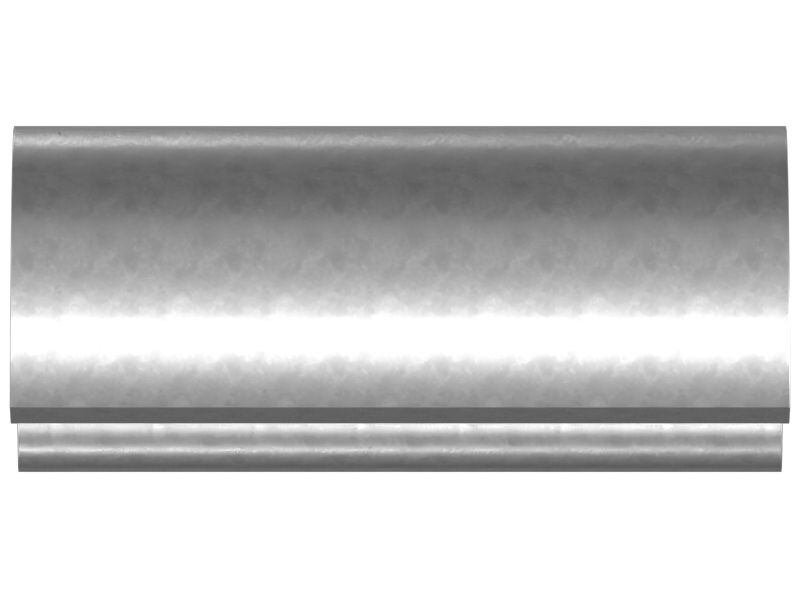

581-0710: 51.6mm Diameter Tube Half Saddle Clamp

Description:
The Tube Half Saddle Clamp is a type of fastener used to secure Tubes or other cylindrical objects to a surface or other objects. It consists of a one half with thread and the other half that fits around the object being secured. A Tube Half Clamp is placed around the object and tightened with nuts on either end, pressing the object against the plate or saddle and securing it in place.

Attributes:
• Provided with a mounting hole to fit a fastener of size M10.
• Provided a reliable and secure connection between the Tubes and the fitting.
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
The Tube Half Saddle Clamp is used to hold Tubes in Lines of Stick Cylinder and Bucket system arrangements, mostly used in Cat 333, 335, and 350 Excavators.

• Clamp Width (in): 2.95

• Clamp Width (mm): 75

• Length (in): 3.79

• Length (mm): 96.2

• Thickness (in): 0.31

• Thickness (mm): 8

• Material: Carbon Steel
