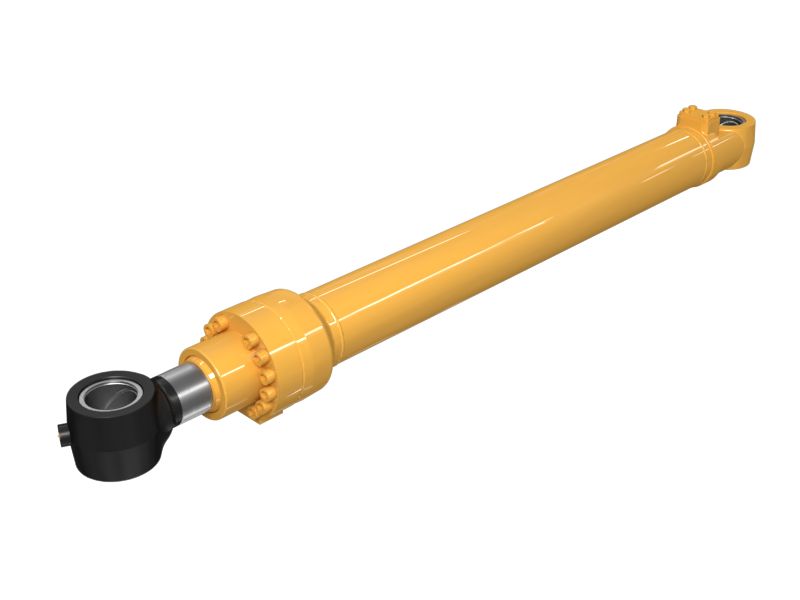

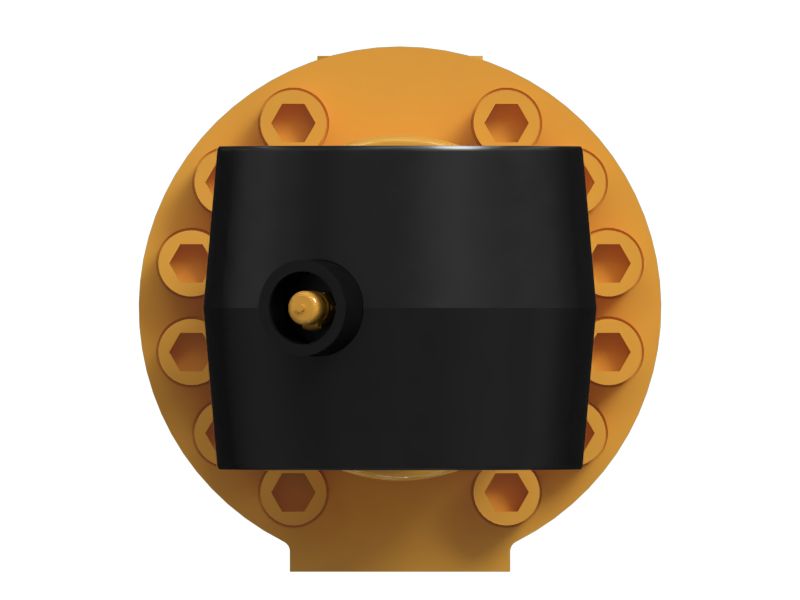

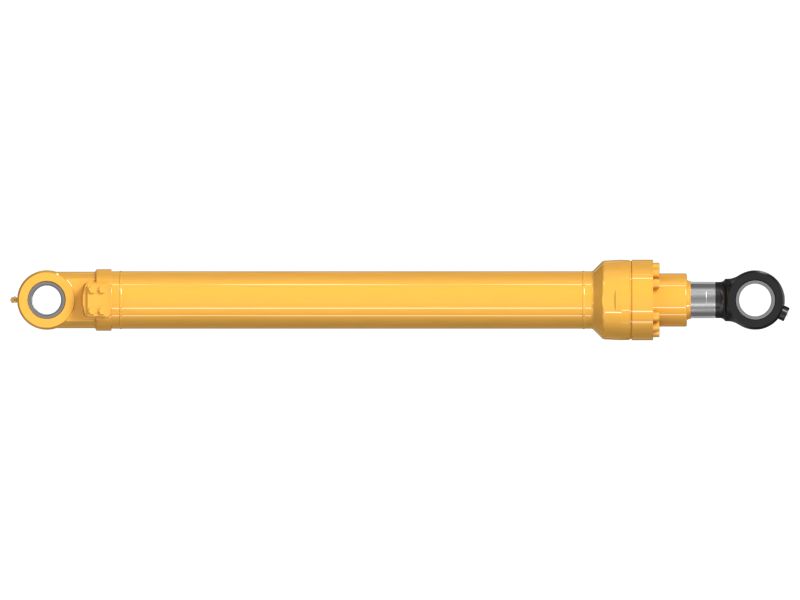

580-8978: Excavator Bucket Cylinder

Description:
An Excavator Bucket Cylinder is a mechanical component that uses fluid power to produce force and motion. It is a type of linear actuator that converts the energy from the pressurized hydraulic fluid into mechanical force and motion. A hydraulic cylinder typically consists of a cylindrical barrel, a piston, and a piston rod. The piston is located inside the barrel and is connected to the piston rod, which extends outside the Cylinder.

Attributes:
• Stroke length of the cylinder is 1104mm.
• Closed Length of the Cylinder is 1684mm.

Applications:
An Excavator Bucket Cylinder allows the movement of the bucket or any other accessory mounted on the coupler. A Bucket cylinder is used to convert the hydraulic energy into mechanical force and motion to move the Bucket, widely used in Cat 320D3 GC Excavator.

• Bore Diameter (in): 4.53

• Bore Diameter (mm): 115

• Outer Diameter (in): 5.32

• Outer Diameter (mm): 135

• Rod Diameter (in): 3.35

• Rod Diameter (mm): 85

• Weight (kg): 152.6

• Weight (lb): 336.43

• Material: Sealants / Adhesives Adhesive,Carbon Steel
