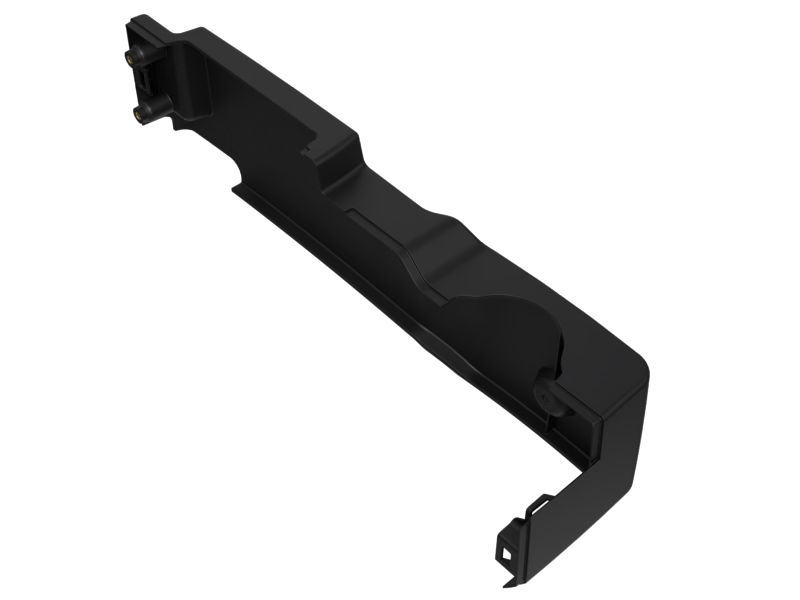

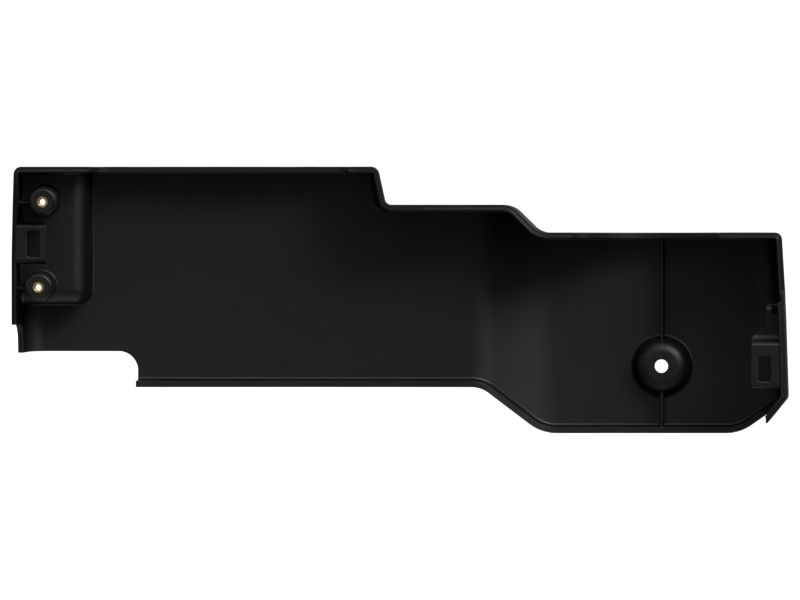

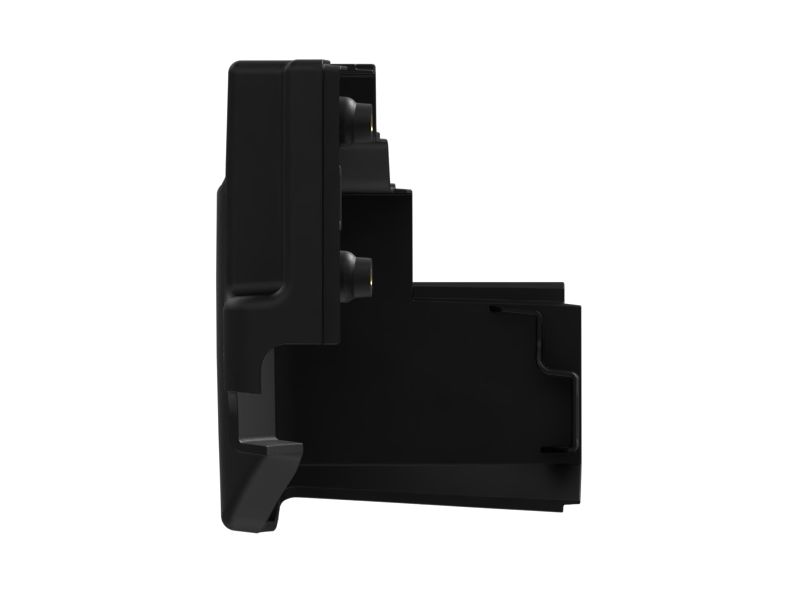

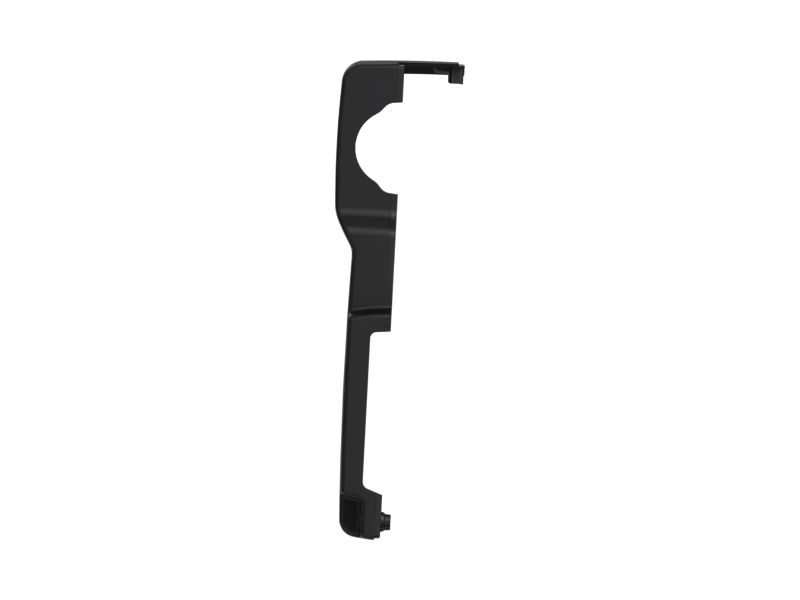

578-1395: Armrest Protection Cover

The Operator Console Lower Cover used in a cabin is to provide protection and aesthetic appeal to the lower portion of the left-hand operator console. It is made of durable materials such as plastic or composite materials. It helps to enclose and protect the internal components of the console, such as wiring, switches, and controls, from dust, debris, and potential damage.

Attributes:
• Reduce glare on the operator console screen
• Handle high pressure without deforming or breaking
• Withstand the harsh conditions and high temperatures

Applications:
The Operator Console Cover is used to prevent the operator console from being damaged by spills and the appearance of the cabin, protects the console components, and provides a clean and organized workspace for the operator.

• Overall Length (mm): 552.5

• Overall Length (in): 21.75

• Overall Width (mm): 142

• Overall Width (in): 5.59

• Overall Height (mm): 188.6

• Overall Height (in): 7.43

• Side Wall Thickness (mm): 4

• Side Wall Thickness (in): 0.16

• Thread Size (dia x pitch) (mm): M6 x 1 (2x)

• Color: Dark Gray

• Material: Plastic,Acrylonitrile Styrene Acrylate (ASA) Plas

• Weight (kg): 0.52

• Weight (lb): 1.15
