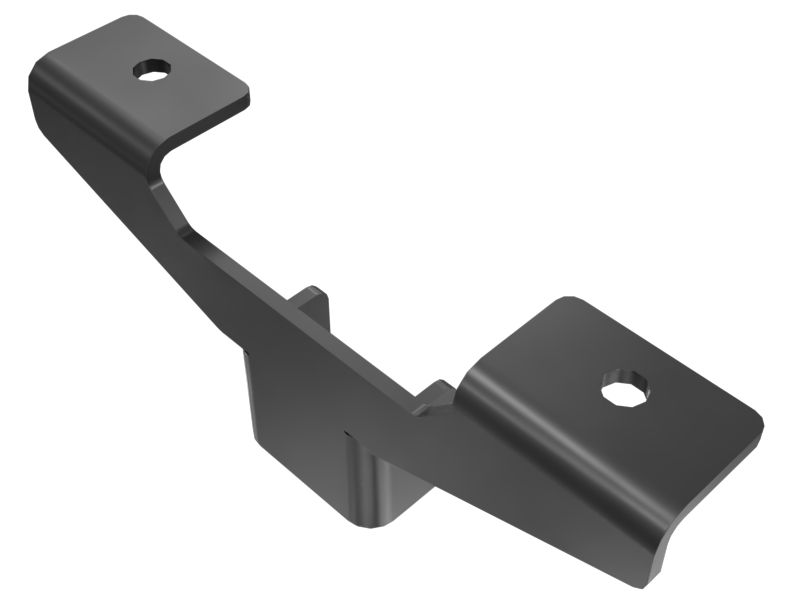

576-3457: 4mm Thick Expansion Tank Support Bracket

An Expansion Tank Support Bracket provides structural support and stability to the radiator tank, ensuring secure attachment to the equipment frame. It withstands the weight and pressure exerted by the coolant and expansion tank components, thereby preventing displacement during operation. It maintains the integrity of the radiator system, optimizing cooling efficiency, and extending the operational life of the equipment.

Attributes:
• Ensures proper alignment of the expansion tank within the system.
• Withstands vibrations and shocks.
• Provides thermal stability in extreme temperatures.
• Supports the radiator tank under varying loads and conditions.

Applications:
An Expansion Tank Support Bracket is positioned to the expansion tank assembly of the radiator system, securing the tank to the equipment frame and ensuring reliable operation and structural integrity during equipment applications.

• Weight (kg): 0.35

• Weight (lb): 0.769

• Thickness (mm): 4

• Thickness (in): 0.16

• Length (mm): 200

• Length (in): 7.874

• Width (mm): 35

• Width (in): 1.378

• Height (mm): 80

• Height (in): 3.15

• Hole Size (mm): 10

• Hole Size (in): 0.39

• Material: Steel,Structural Steel
