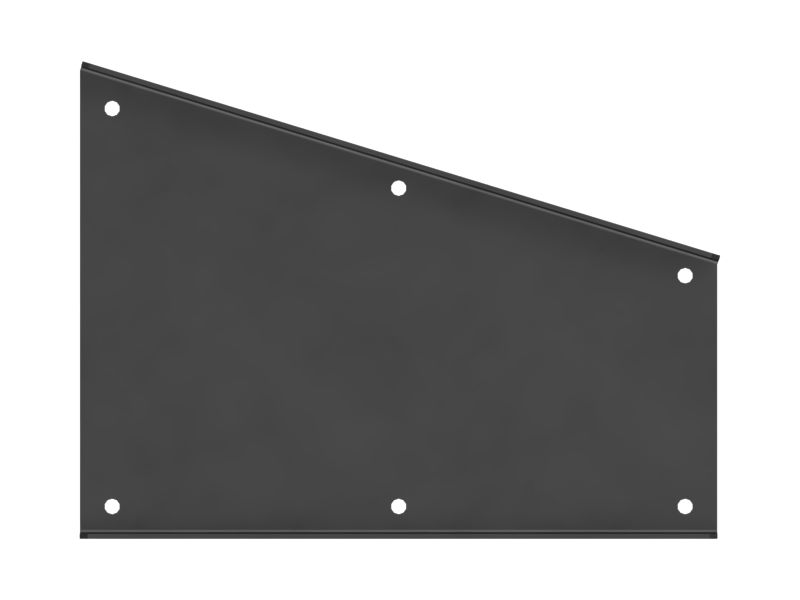

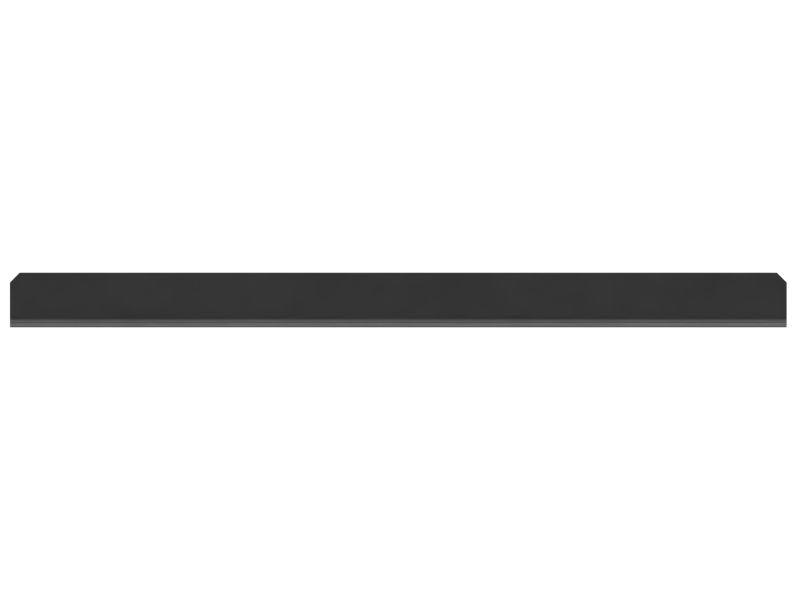

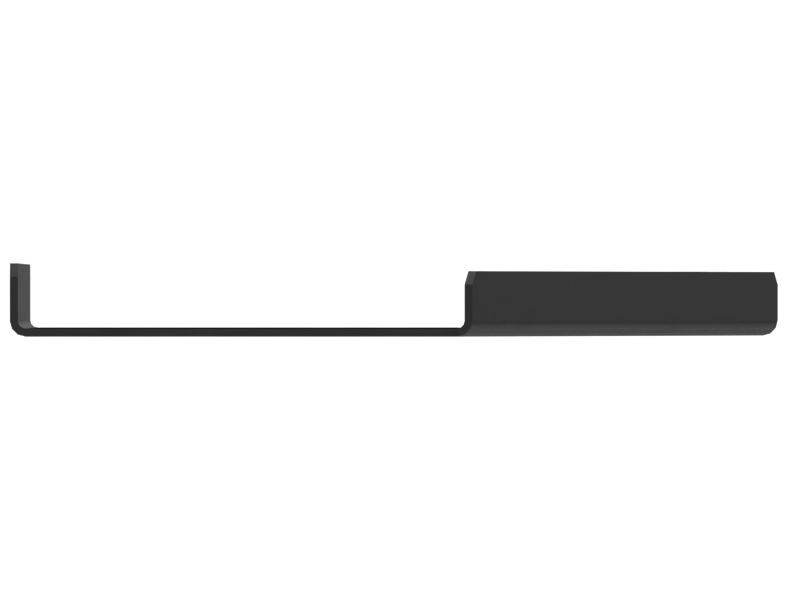

576-3446: Radiator Shroud Cover

A Boom Cylinder Mount Block is mounted on the cylinder and supports the boom cylinder, which is responsible for raising, lowering, and tilting the boom, connected to the clamp. It is provided with bolt holes to directly attach the boom cylinder clamp. These interfaces are precisely engineered to ensure proper alignment and load distribution on the cylinder.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Ensures proper alignment of the boom cylinder, preventing misalignment issues

Applications:
A Boom Cylinder Mount Block serves as the interface between the excavator's frame and the hydraulic boom cylinder. It withstands the extreme stresses, forces, and impacts that are exerted on the boom cylinder during digging and material handling operations.

• Height (in): 15.82

• Height (mm): 401.8

• Hole Size (in): 0.39

• Hole Size (mm): 10

• Length (in): 11.79

• Length (mm): 299.5

• Material: Steel,Structural Steel

• Weight (kg): 2.66

• Weight (lb): 5.86

• Width (in): 0.98

• Width (mm): 25
