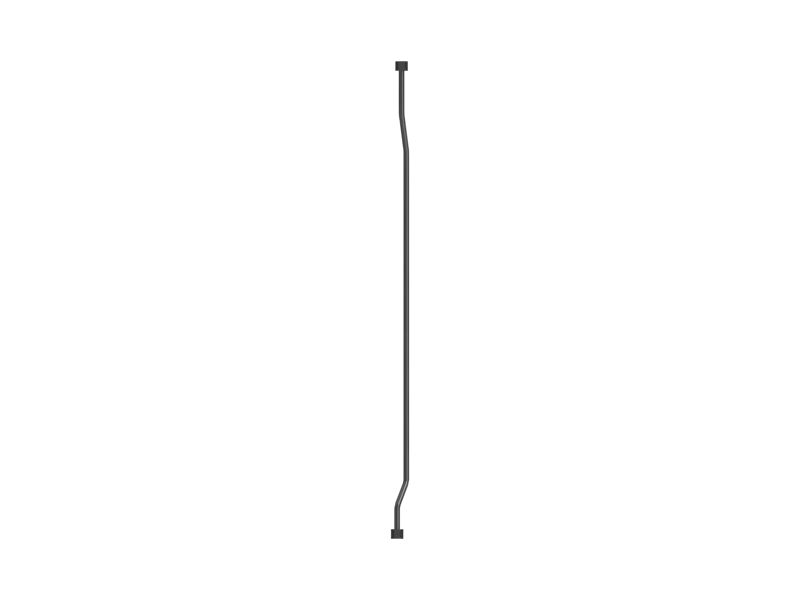

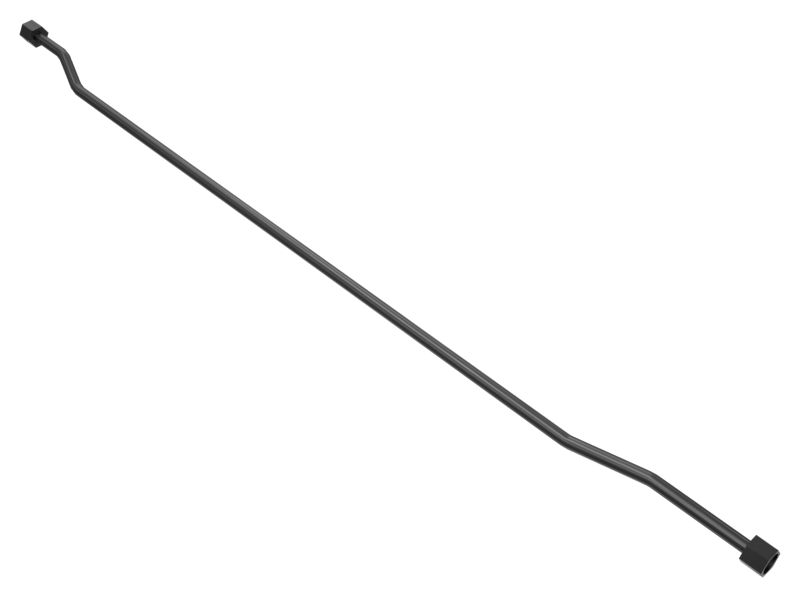

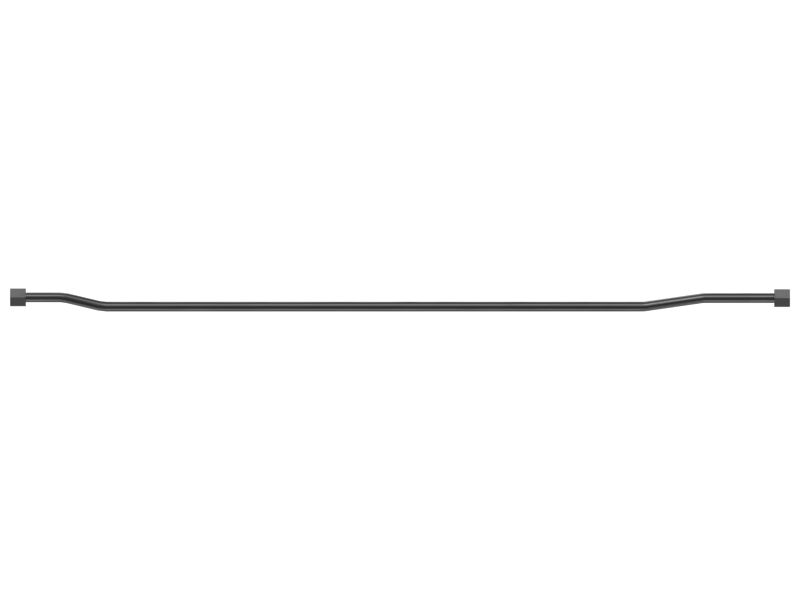

574-4813: Propel Lines Tube Assembly

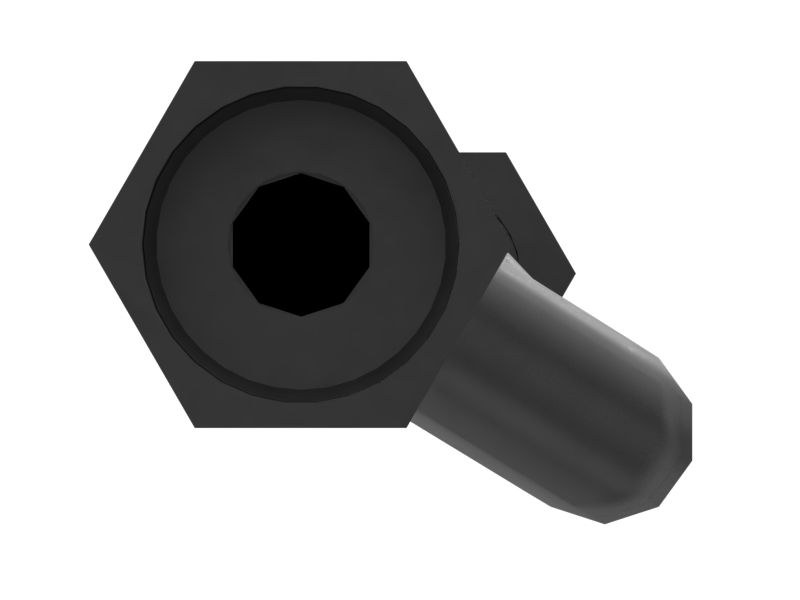

A Propel Lines Tube Assembly is responsible for the efficient distribution of hydraulic power to propel the machine forward or backward. The assembly includes an O Ring Face Seal Sleeve, and swivel nut to ensure a secure and leak-free connection. The tube is routed and mounted along the frame of the asphalt paver to ensure optimal hydraulic performance and minimize potential damage.

Attributes:
• Efficiently transmits power from the engine to the wheels, enabling smooth movement and control
• Provided with a minimum burst pressure of 56000 kPa, ensuring efficient flow of hydraulic fluid

Applications:
A Propel Lines Tube Assembly serves as a conduit for the flow of hydraulic fluid ensuring precise control over the paver's movement and speed during paving operations.

• Outer Diameter (mm): 12.7

• Outer Diameter (in): 0.5

• Inner Diameter (mm): 9.4

• Inner Diameter (in): 0.37

• Radial Thickness (mm): 1.65

• Length (mm): 1060

• Length (in): 41.732

• Weight (kg): 0.554

• Weight (lb): 1.221

• Material: Carbon Steel,Alloy Mixed
