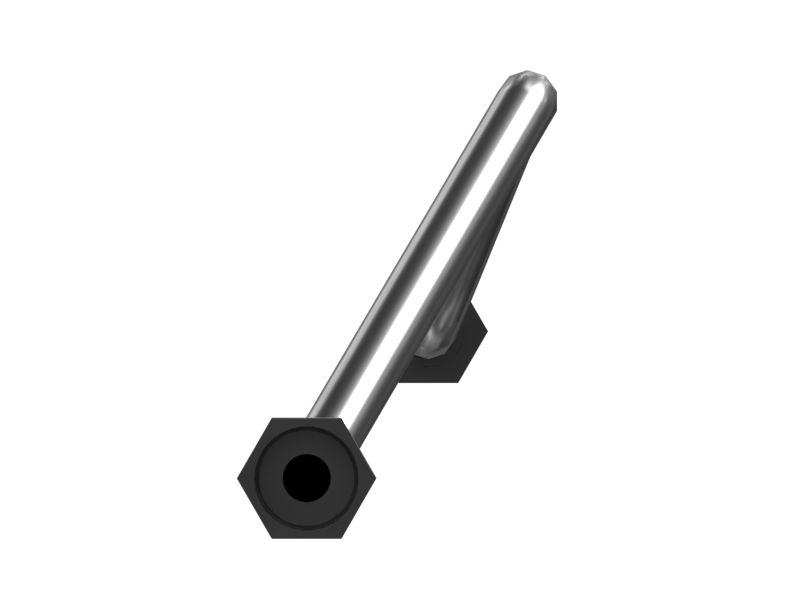

574-4812: Propel Lines Tube Assembly

A Propel Lines Tube Assembly is responsible for the efficient distribution of hydraulic power to propel the machine forward or backward. The assembly includes an O Ring Face Seal Sleeve, and swivel nut to ensure a secure and leak-free connection. The tube is routed and mounted along the frame of the asphalt paver to ensure optimal hydraulic performance and minimize potential damage.

Attributes:
• Efficiently transmits power from the engine to the wheels, enabling smooth movement and control
• Provided with a minimum burst pressure of 46812 kPa, ensuring efficient flow of hydraulic fluid

Applications:
A Propel Lines Tube Assembly serves as a conduit for the flow of hydraulic fluid ensuring precise control over the paver's movement and speed during paving operations.

• Outer Diameter (mm): 12.7

• Outer Diameter (in): 0.5

• Inner Diameter (mm): 10.92

• Inner Diameter (in): 0.43

• Radial Thickness (mm): 0.89

• Length (mm): 1100

• Length (in): 43.307

• Weight (kg): 0.36

• Weight (lb): 0.802

• Material: Carbon Steel,Alloy Mixed
