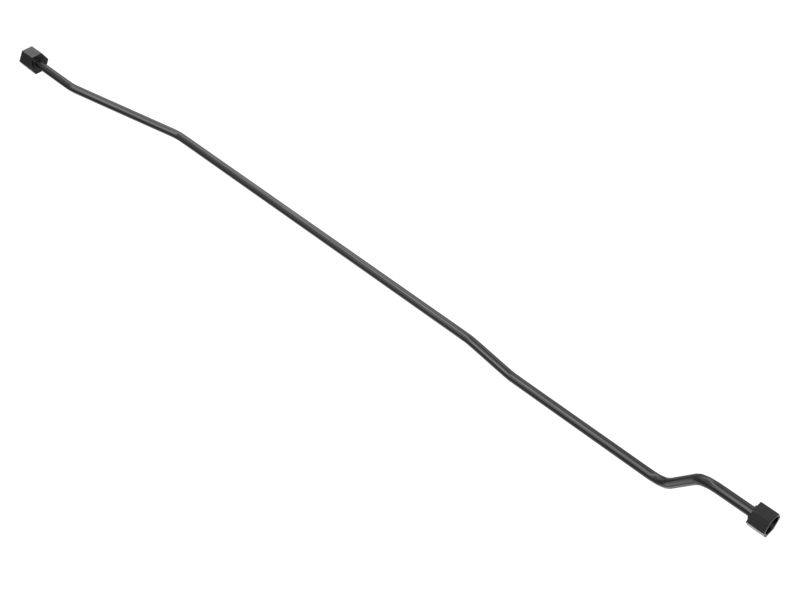

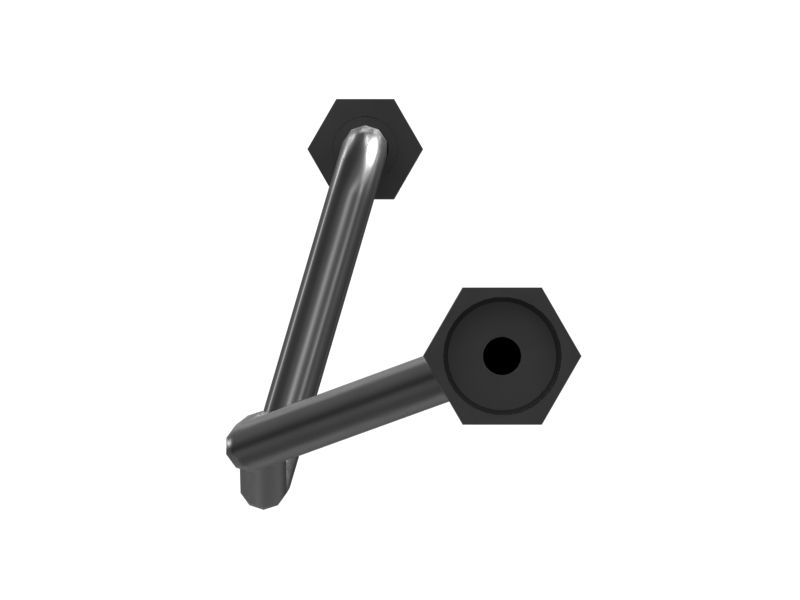

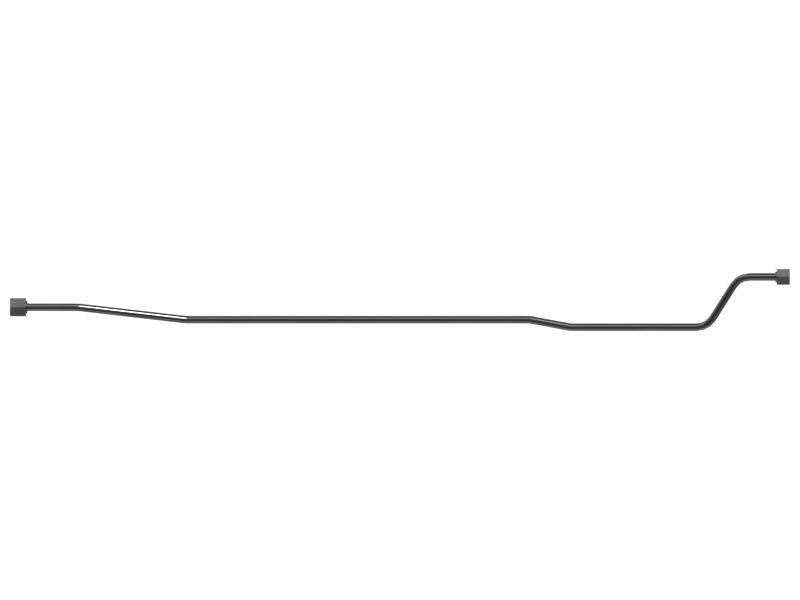

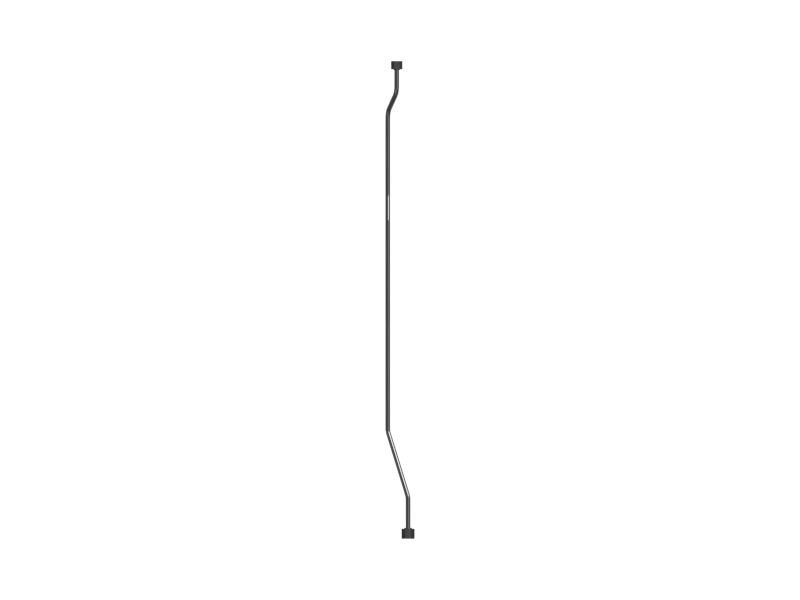

574-4810: Propel Lines Tube Assembly

A Propel Lines Tube Assembly is responsible for the efficient distribution of hydraulic power to propel the machine forward or backward. The assembly includes an O Ring Face Seal Sleeve, reducer sleeve, and swivel nut to ensure a secure and leak-free connection. The tube is routed and mounted along the frame of the asphalt paver to ensure optimal hydraulic performance and minimize potential damage.

Attributes:
• Efficiently transmits power from the engine to the wheels, enabling smooth movement and control
• Provided with a minimum burst pressure of 56000 kPa, ensuring efficient flow of hydraulic fluid

Applications:
A Propel Lines Tube Assembly serves as a conduit for the flow of hydraulic fluid ensuring precise control over the paver's movement and speed during paving operations.

• Outer Diameter (mm): 9.52

• Outer Diameter (in): 0.37

• Inner Diameter (mm): 7.74

• Inner Diameter (in): 0.3

• Radial Thickness (mm): 0.89

• Length (mm): 1080

• Length (in): 42.519

• Weight (kg): 0.696

• Weight (lb): 1.534

• Material: Alloy Mixed
