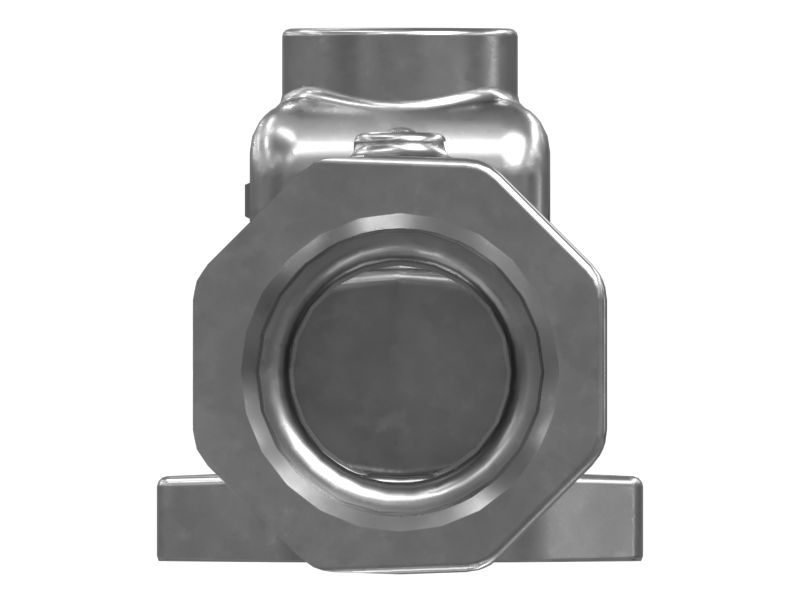

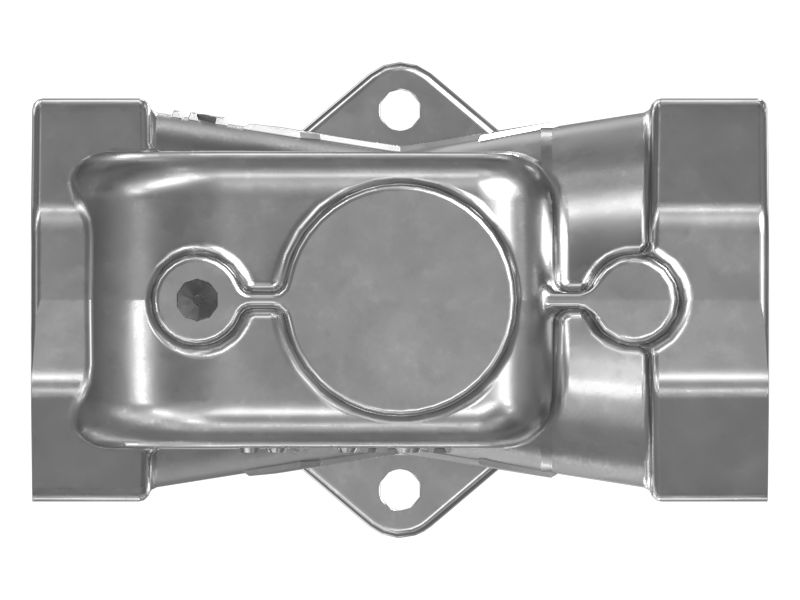

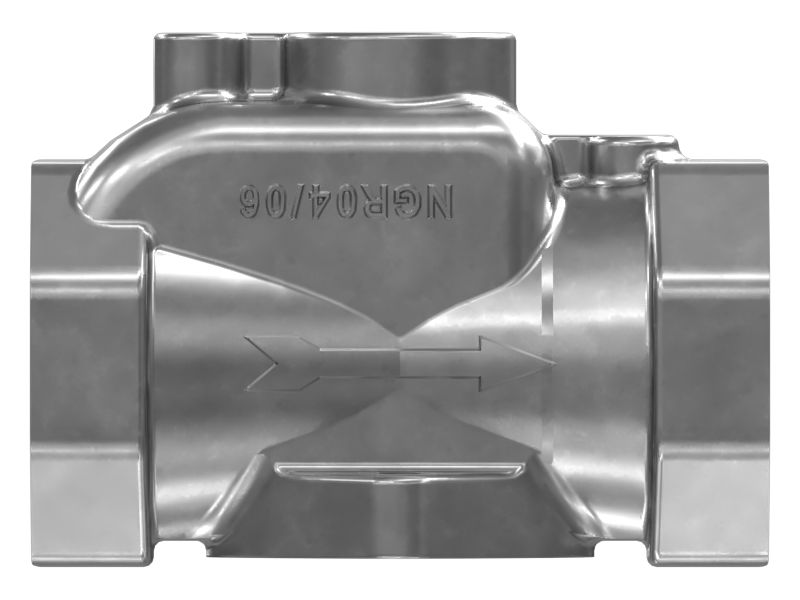

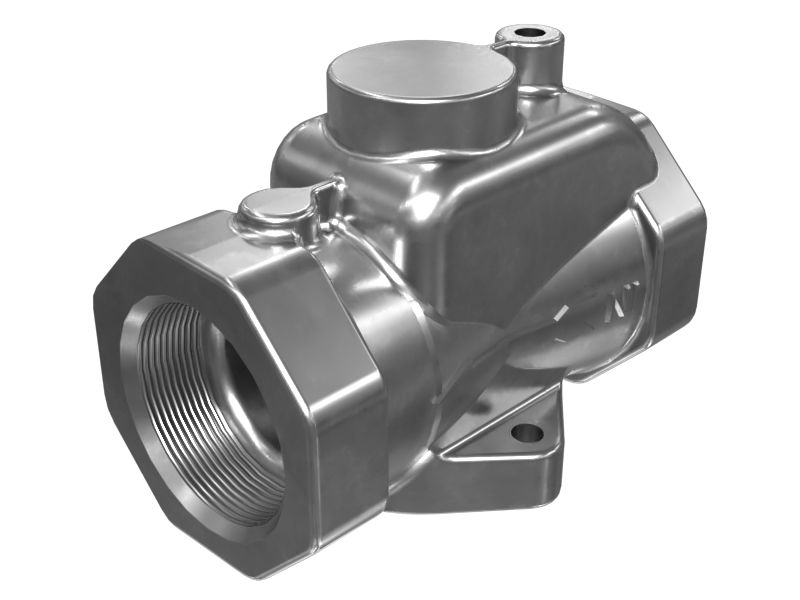

573-7159: Gas Pressure Regulator Valve Body

The Valve Body in a pressure regulator serves as the primary housing for internal components responsible for fluid flow and pressure control. It incorporates inlet and outlet ports, an adjustment screw, a diaphragm, a spring, and a valve seat. When fluid enters through the inlet, the diaphragm responds to pressure changes, causing the valve to open or close. The spring exerts force on the diaphragm, counteracting the inlet pressure, and helps maintain the desired outlet pressure. The valve body's robust construction ensures the secure enclosure of internal components, preventing leaks and offering stable and reliable pressure regulation.

Attributes:
• Enables precise control over fluid flow and pressure, optimizing system performance
• Enhances safety by preventing overpressure situations in the system
• Provides a secure housing for internal components, preventing leaks

Applications:
This Valve Body in a pressure regulator controls and regulates fluid flow and pressure to maintain a stable and desired pressure level within a system.

• Material: Carbon Steel
