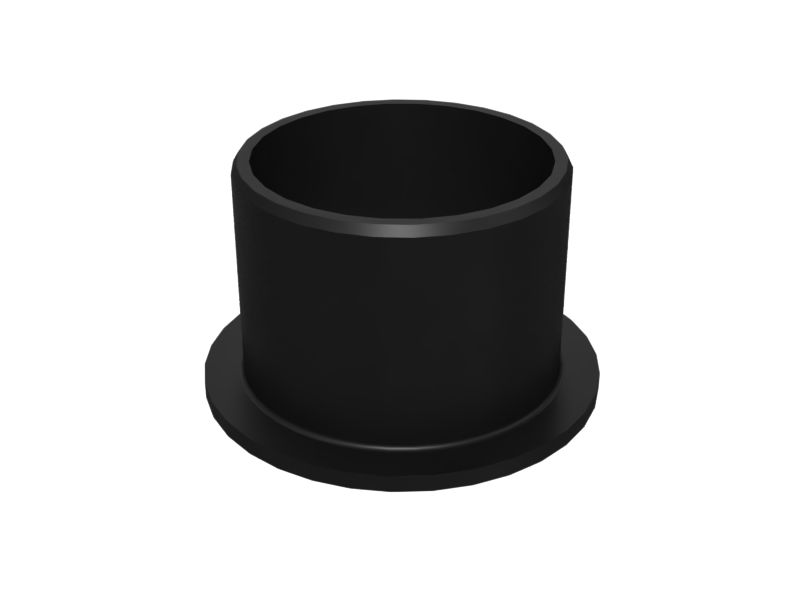

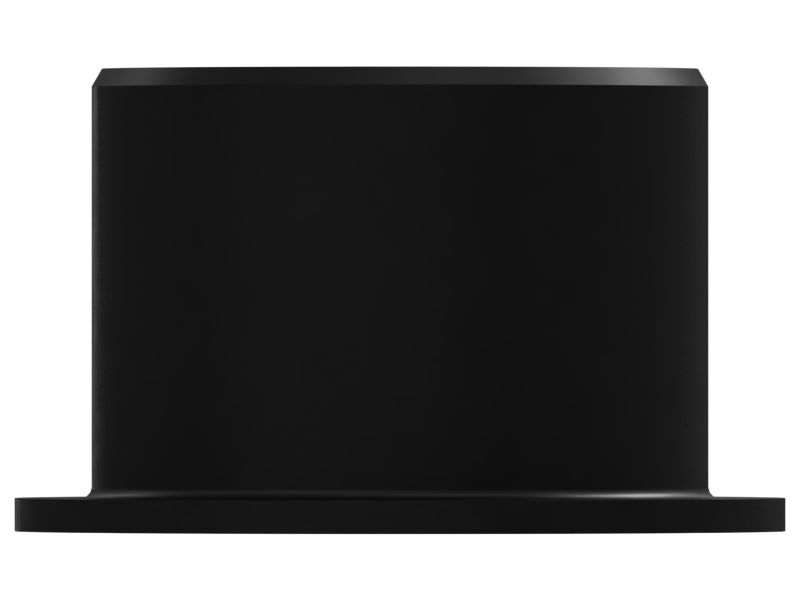

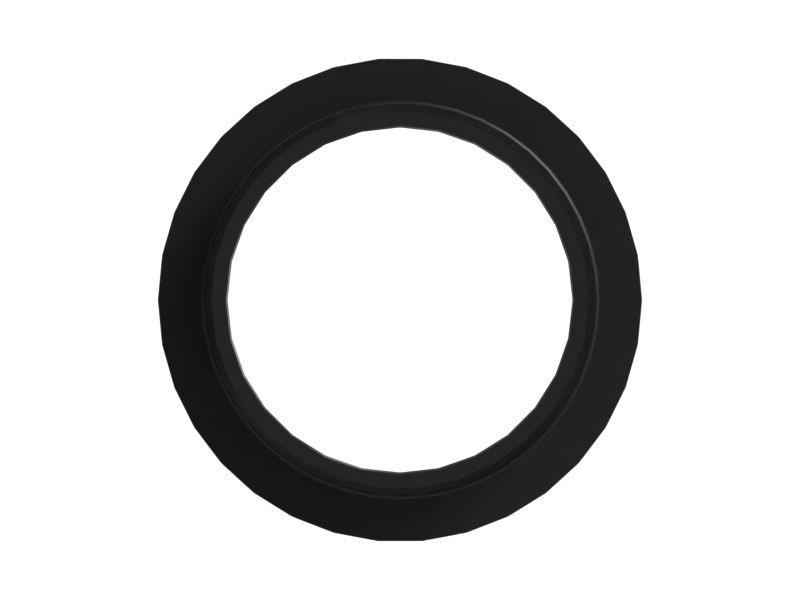

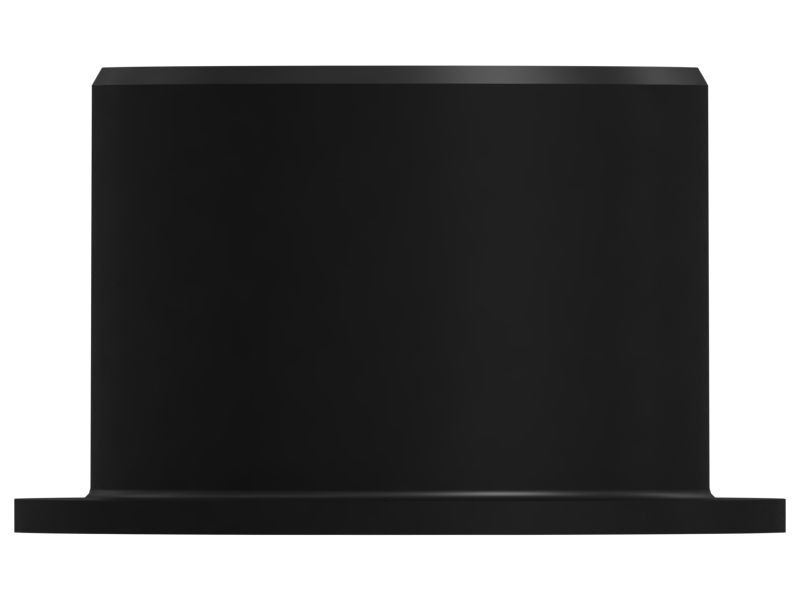

573-5377: 25mm Inner Diameter Flange Sleeve Bearing

Description:
A Flanged Sleeve Bearing is a sliding contact bearing with a flange at one end extending radially outward from the outside diameter. The Flanged Sleeve Bearings have a flange integral with the outer ring to axially constrain the bearing which helps to reduce mounting complexity and cost. The oil grooves are cut into the bearing surfaces, which act as oil reservoirs to hold and distribute the oil between the rubbing surfaces.

Attributes:
• Thin wall construction prevents excessive heat build-up that could cause bearing failure
• Designed to minimize friction between the shaft and the bearing surface
• Possesses high shock load resistance, minimizes vibration (and therefore noise)

Applications:
A Flange Sleeve Bearing is used to reduce noise and vibration in the operator console, providing a more comfortable and ergonomic working environment for operators, mostly used in Cat AP400, AP455, AP500, and AP555 Paving Equipment.

• Inner Diameter (in): 0.98

• Inner Diameter (mm): 25

• Length (in): 0.82

• Length (mm): 21

• Outside Diameter (in): 1.38

• Outside Diameter (mm): 35

• Material: Nylon, 6, 6/12, 6/6 Plastic
