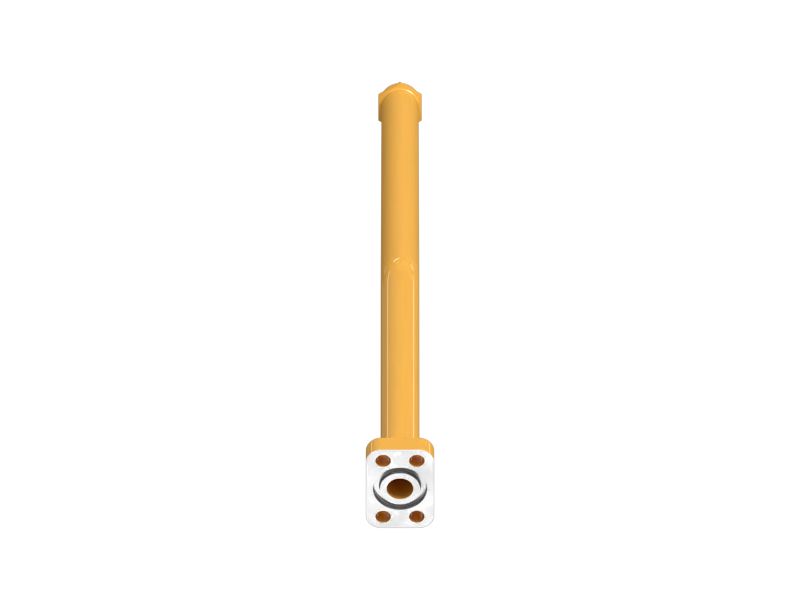

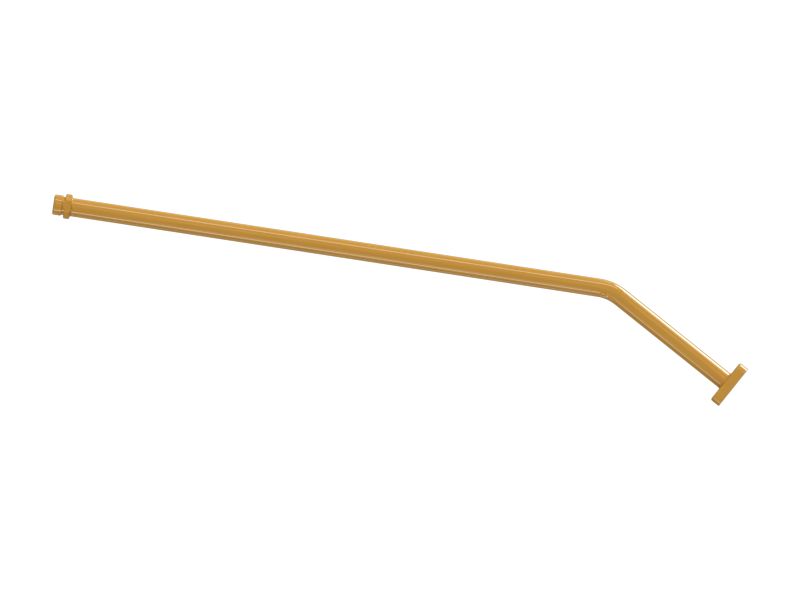

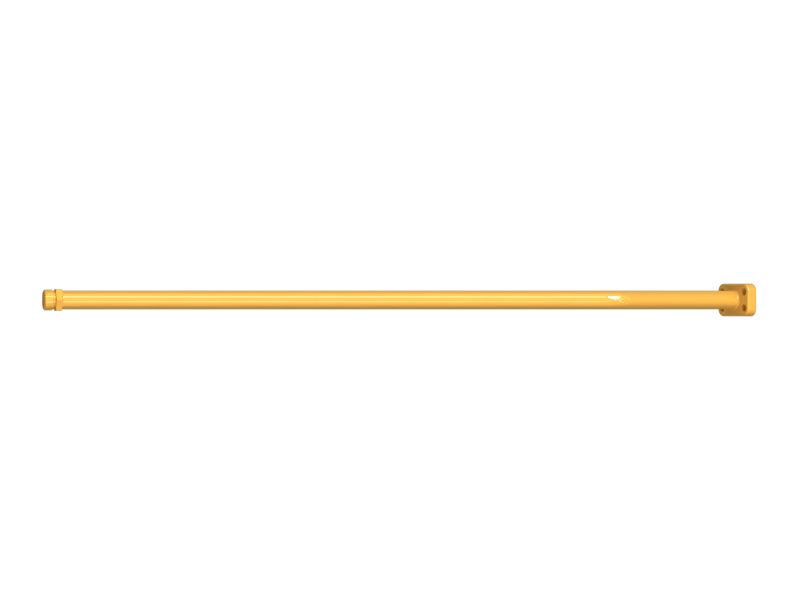

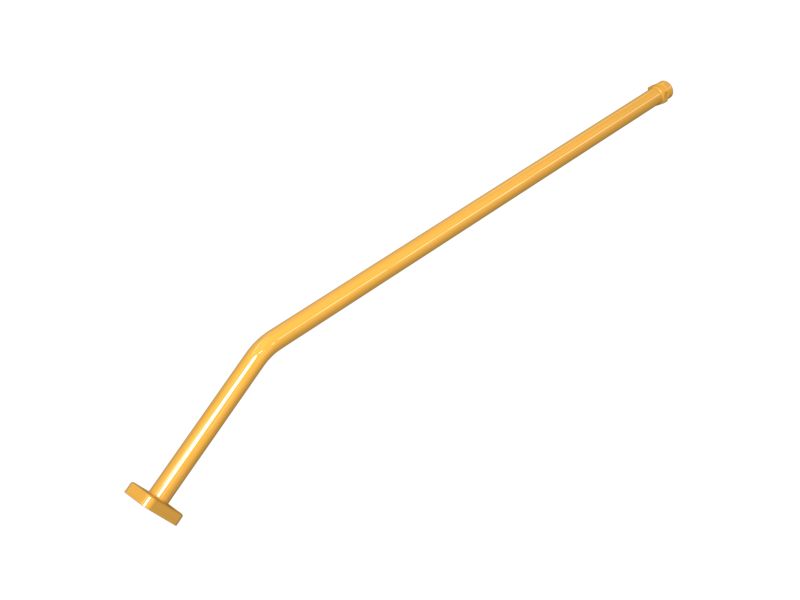

572-1470: 20.8mm Inner Diameter Stick Lines Tube Assembly

A Stick Lines Tube Assembly for an auxiliary shutoff manual valve facilitates the control and regulation of fluid flow within the equipment's hydraulic stick system. Installed within the hydraulic stick assembly, the tube assembly connects the auxiliary shutoff manual valve to the hydraulic system. When the valve is operated manually, hydraulic fluid flows through the tube assembly, either enabling or restricting the movement of hydraulic components in the stick, thereby controlling functions as needed. Its accurate design ensures reliable and accurate operation, contributing to the overall performance and functionality of the equipment.

Attributes:
• Designed to handle high hydraulic pressures.
• Ensures reliable sealing to prevent hydraulic fluid leaks.
• Withstand harsh operating conditions and environments.
• Resistant to wear and abrasion for long-lasting performance.

Applications:
A Stick Lines Tube Assembly is located within the hydraulic stick of equipment and facilitates fluid transfer for accurate control and shutdown functionality for enhanced safety and operational efficiency.

• Outer Diameter (mm): 27

• Outer Diameter (in): 1.07

• Approximate Overall Length (mm): 1098

• Material: Steel,Carbon Steel
