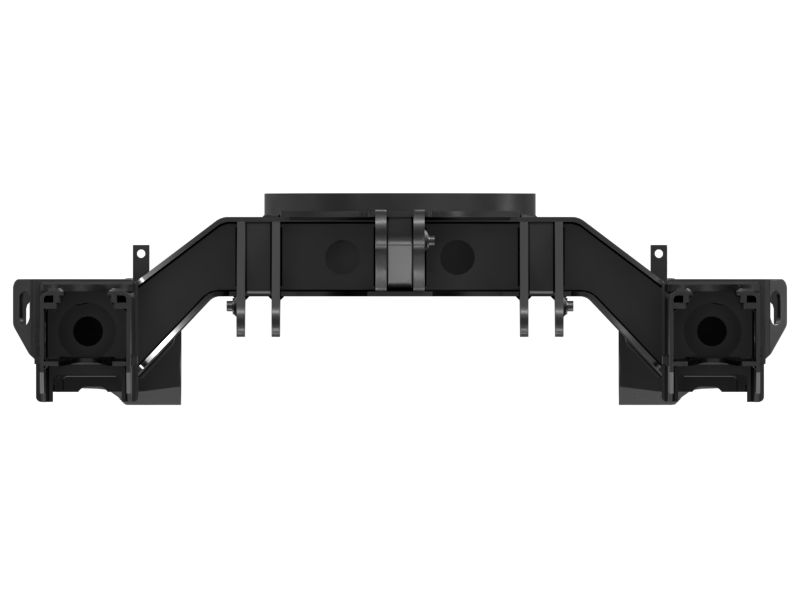

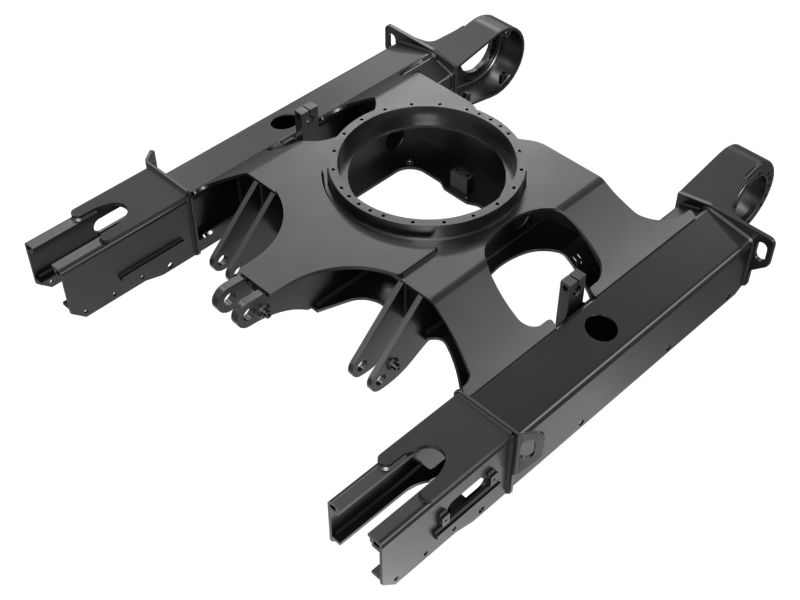

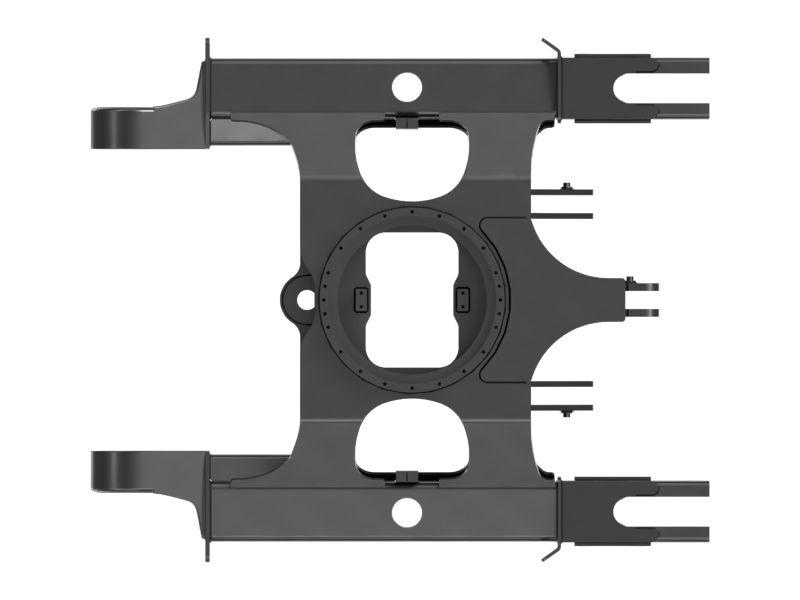

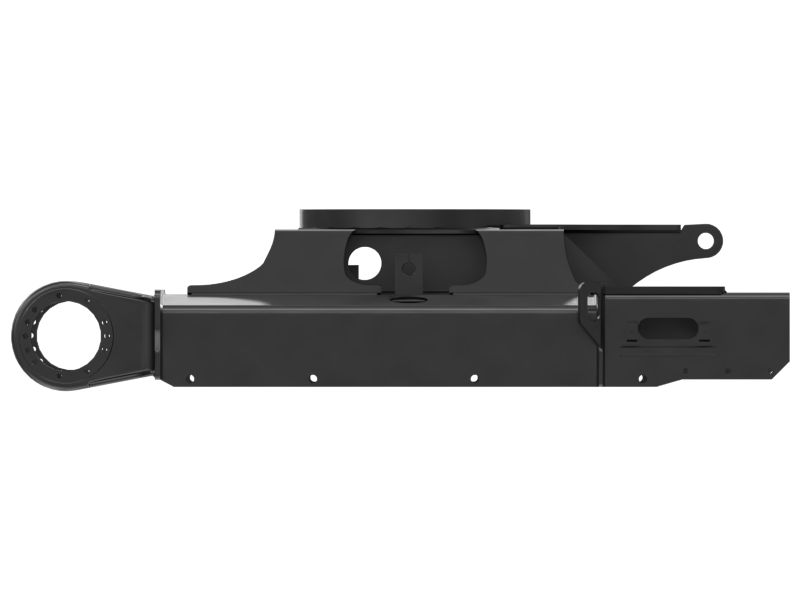

571-7031: Undercarriage Frame

An Undercarriage Frame serves as the foundational structure beneath equipment, such as excavators. It consists of a series of interconnected beams, plates, and braces, engineered to withstand the rigors of high-load operations. This frame supports and encases components like the track system, drive motors, hydraulic cylinders, and other equipment-specific elements. Its design maintains stability, distributing weight effectively, and enduring harsh environmental conditions. The undercarriage frame bears the weight of the entire equipment and its load, providing a stable base for operation. It shields components from external hazards such as debris, impacts, and abrasive materials encountered during operation. The frame houses the tracks or wheels necessary for movement, enabling the equipment to traverse terrains with traction and control. By distributing forces and stresses evenly, the undercarriage frame maintains the structural integrity of the equipment, ensuring longevity and reliability. It provides a framework for integrating and mounting elements like the engine, hydraulic systems, and attachments.

Attributes:
• Made from high-strength material to withstand loads and harsh operating conditions.
• Optimize weight distribution, minimize stress concentrations, and enhance overall performance.
• Feature modular designs, allowing for easier maintenance, repair, and component replacement.
• Coatings applied to protect the frame from corrosion, extending its service life in corrosive environments.

Applications:
An Undercarriage Frame is positioned beneath the main body or chassis of a mini hydraulic excavator, serving as the lowermost structural assembly. It spans the width of the equipment and extends from the front to the rear, connecting to the tracks or wheels and integrating with other components such as the powertrain, hydraulic system, and operator cab.

• Material: Alloy Steel
