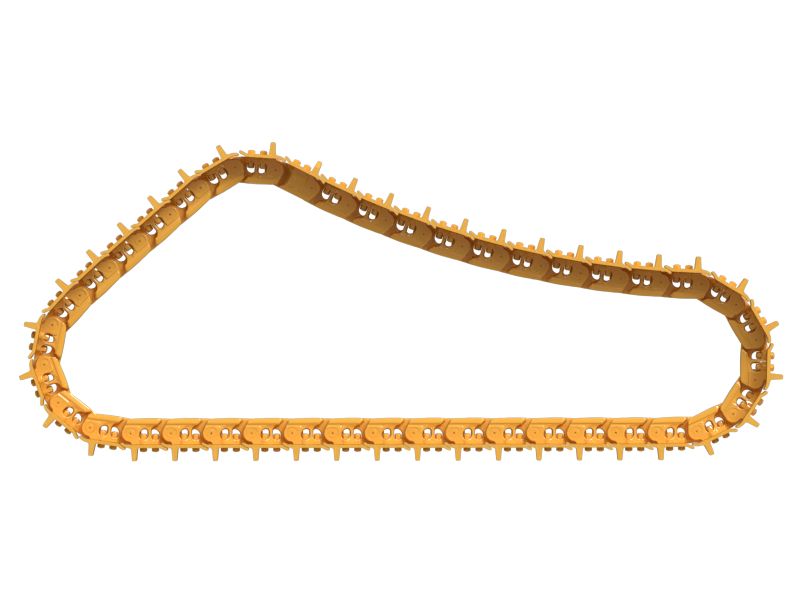

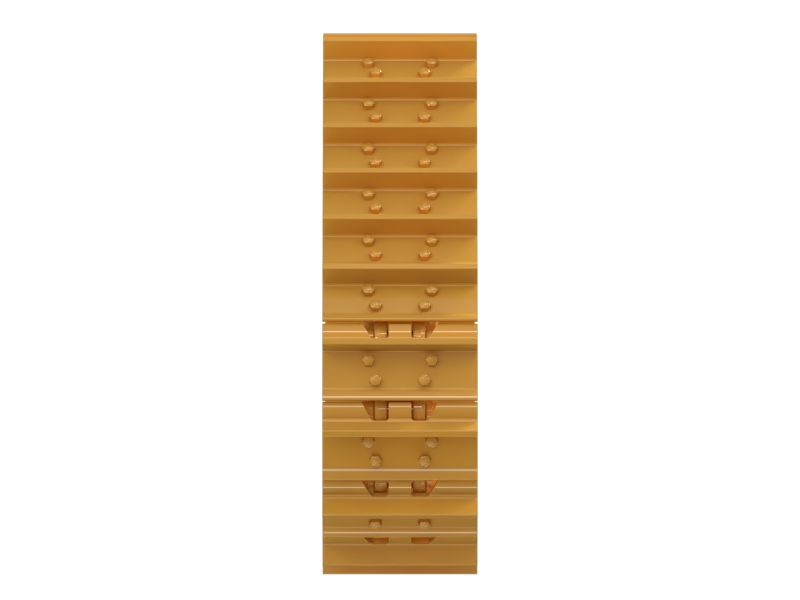

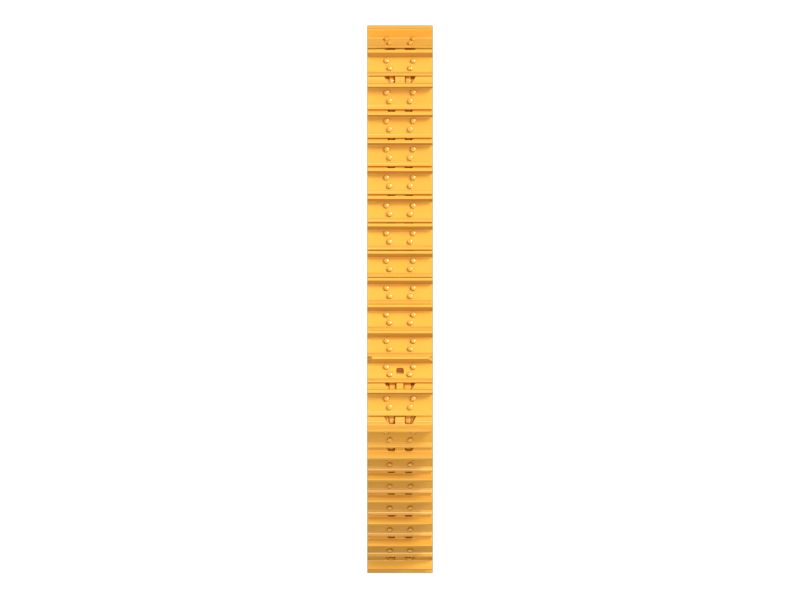

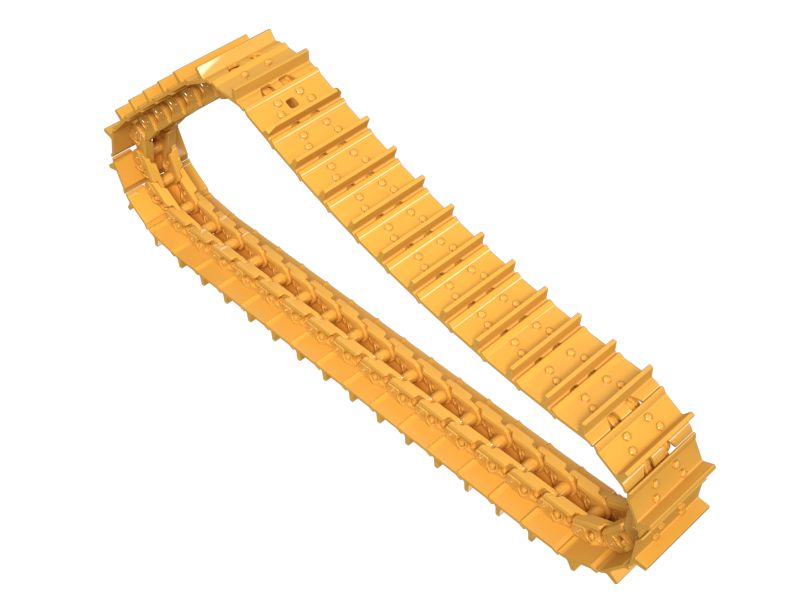

570-3236: ГУСЕНИЧНАЯ ЛЕНТА-ВТУЛКА

The Link Track Shoe is used to provide traction between the equipment and the ground. It is equipped with raised elements called grousers on the bottom surface. These grousers interact with the ground, providing the necessary traction to propel the equipment forward or backward. The primary purpose of the link track shoe is to prevent slippage, allowing the equipment to move efficiently and effectively even on challenging surfaces such as loose soil, mud, snow, gravel, or uneven terrains.

Attributes:
• Positive pin retention mechanism helps to secure the track link pins in place
• Sealed and lubricated design helps to prevent dirt, debris, and moisture from entering the joint

Applications:
The Link Track Shoe forms a continuous chain that distributes the equipment's weight and provides traction on different terrains, ensuring smooth and stable movement.

• Grease Track Type: Not Applicable

• Clipped: No

• Hole Type: Not Applicable

• Seal And Lube Type: SALT

• Shoe Type: ES

• Master Bolt Thread: M36

• Offset: Not Applicable

• Shoe Width (mm): 710

• Number of Track Sections: 41

• Track Stiffening System: Not Applicable

• ARM: No

• Number of Grousers: Single

• Master Link Type: 1 Tooth Master

• Track Bolt Thread: 1.375
