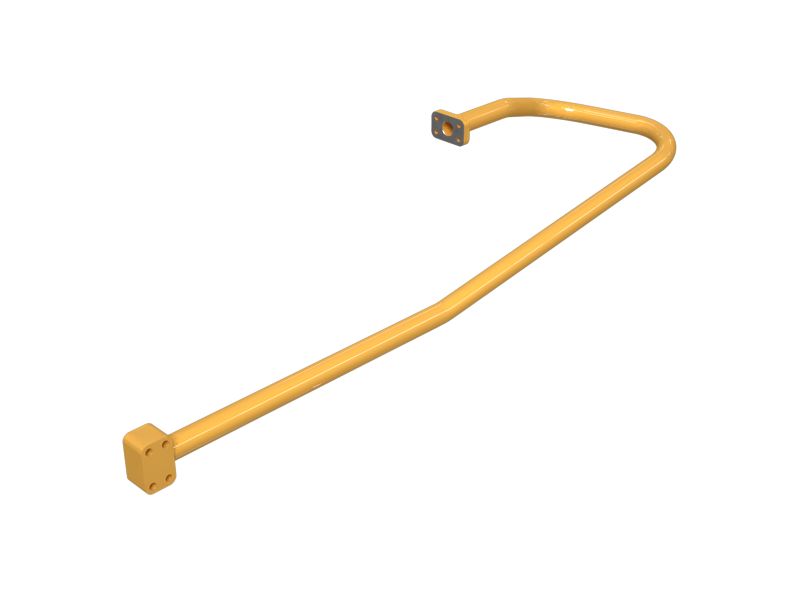

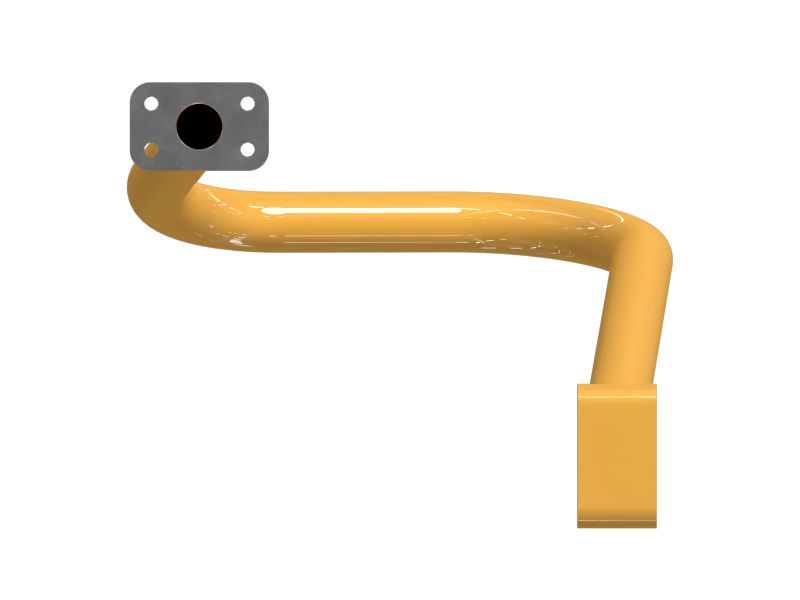

568-8159: 33.1mm Inner Diameter Boom Cylinder Tube Assembly

A Boom Cylinder Tube Assembly is attached to the right-hand side hydraulic boom cylinder that is responsible for carrying the hydraulic fluid to the cylinder assembly. This tube assembly consists of a tube and flanges that are attached to the hydraulic lines and the cylinder assembly for transferring the fluids. It has an optimum size that allows more fluid to flow through the tube without reducing the velocity of the flow.

Attributes:
• Provided with flange connectors for a tight seal that prevents fluid leaks
• Withstands vibrations and shocks in the boom
• Provided with high strength and withstands a relief valve pressure of 35000kPa

Applications:
A Boom Cylinder Tube Assembly is used to facilitate the transportation of fluid within the hydraulic boom cylinder lines and to securely connect the cylinder with the hydraulic lines, forming a leak-proof connection.

• Material: Carbon Steel
