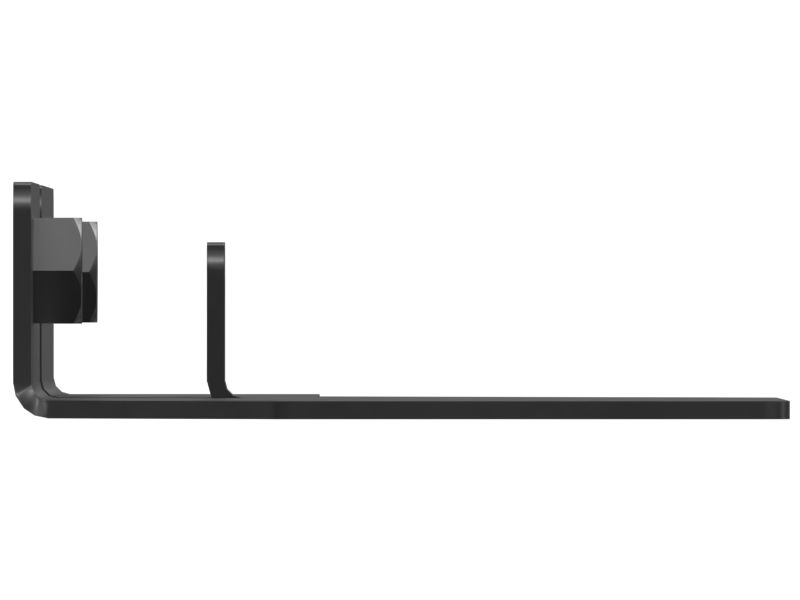

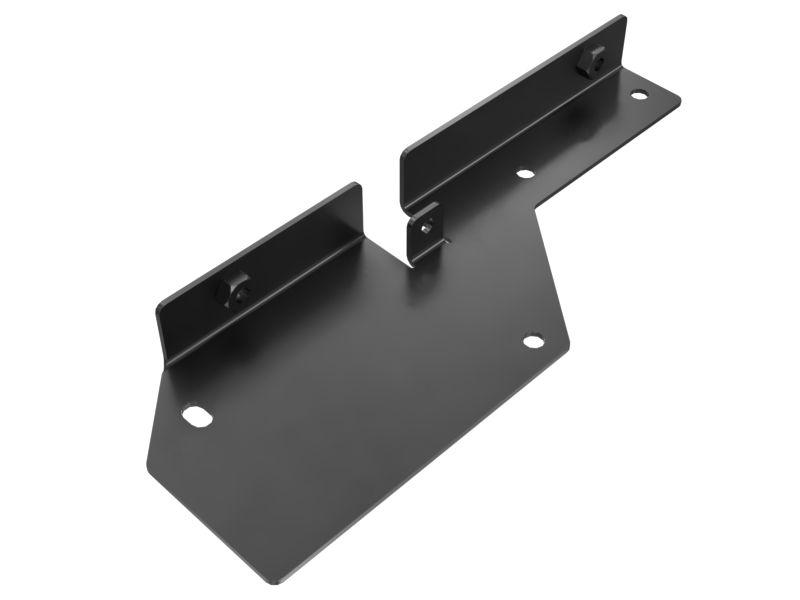

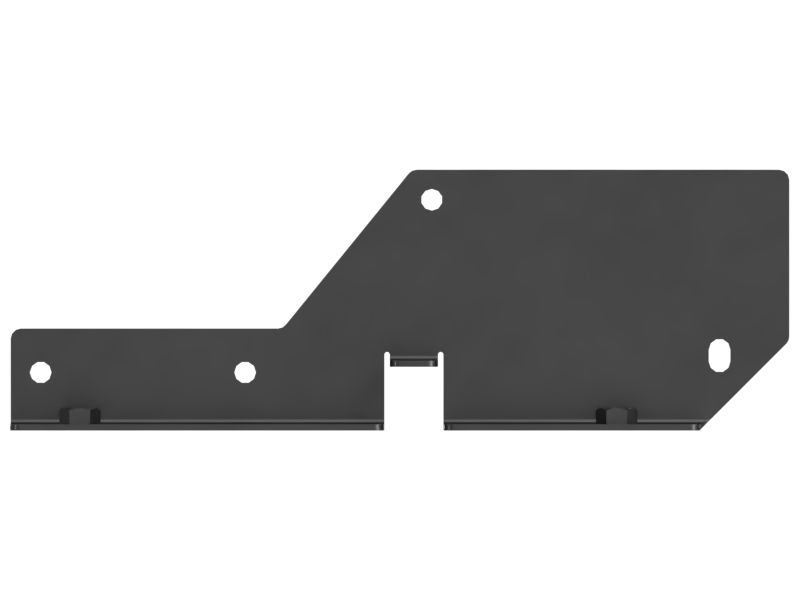

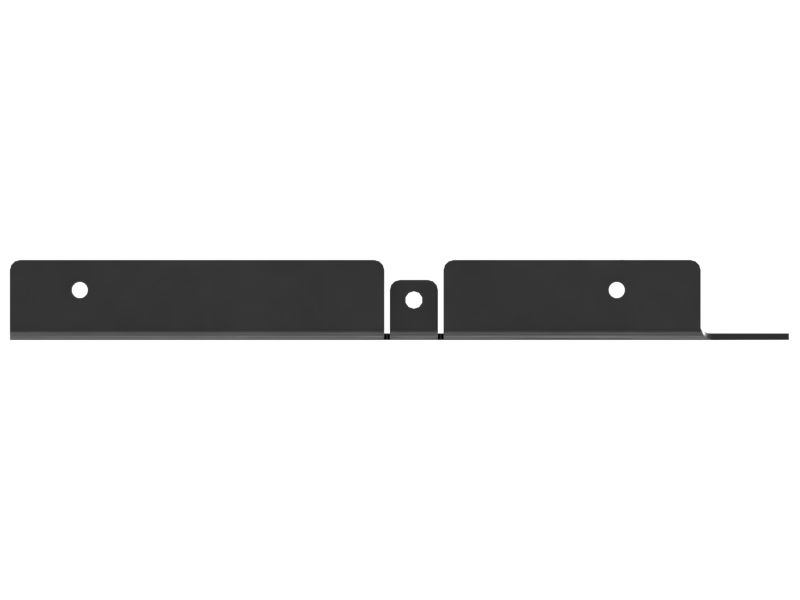

568-6776: Radiator Seal Supporting Plate

A Radiator Seal Supporting Plate is strategically positioned to support the seals that protect the radiator from external forces such as vibrations and impacts. By providing additional support to the seals, the plate helps to maintain the integrity of the radiator and ensure its proper function within the cooling unit. It includes weld nuts and a plate pre-drilled with specific mounting holes and slots that align with corresponding attachment points on the radiator assembly.

Attributes:
• Provided with strength and robustness, high resistance to damage, abrasion, and deterioration over time
• Enhances the durability and reliability of the radiator by reducing the impact of vibrations and external forces
• Provided with 2 weld nuts to fit the fastener of size M10

Applications:
A Radiator Seal Supporting Plate provides structural support to the seals surrounding the radiator of a machine, minimizing vibrations and impacts that could potentially damage the radiator and affect its functionality.

• Material: Steel,Alloy Mixed

• Thread: M10x1.5

• Overall Length (mm): 392

• Overall Length (in): 15.433

• Overall Height (mm): 131

• Overall Height (in): 5.157

• Overall Width (mm): 40

• Overall Width (in): 1.574

• Thickness (mm): 3

• Thickness (in): 0.12

• Weight (kg): 1.128

• Weight (lb): 2.486
