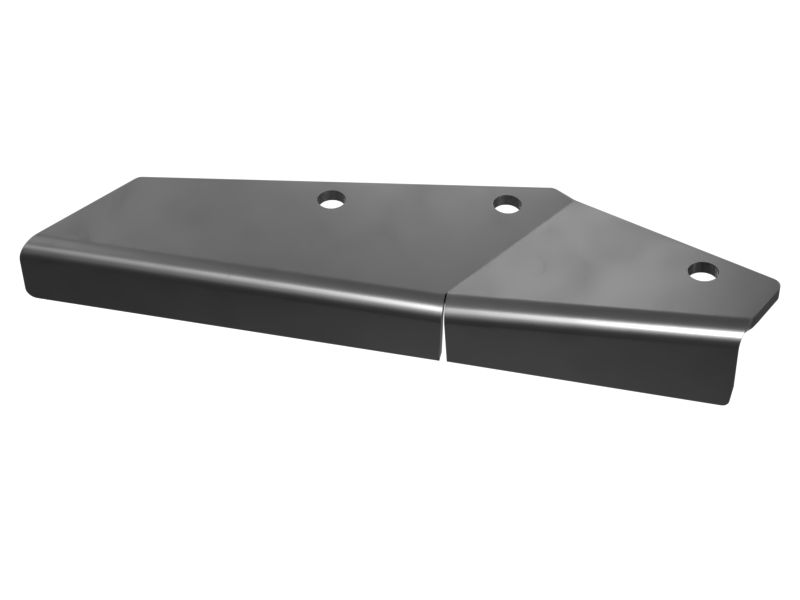

566-9825: Engine Sound Suppression Panel Supporting Plate

An Engine Sound Suppression Panel Supporting Plate is attached to the right-hand side sound suppression panel assembly in the engine enclosure, supporting the mounting of the panel, covering the internal components, and reducing the noise and vibrations. It is strategically placed within the sound suppression structure to dampen sound waves and minimize their transmission. It is pre-drilled with specific mounting holes that fit the engine enclosure, providing additional support to the structure.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Withstands high levels of stress and strain, helping to absorb and dampen the vibrations

Applications:
An Engine Sound Suppression Panel Supporting Plate is used to hold and secure the sound suppression panel and help isolate the engine noise from the external surroundings. It also prevents excessive movement or vibrations of the sound suppression components during operation.

• Material: Steel,Carbon Steel

• Length (mm): 342.2

• Length (in): 13.472

• Height (mm): 92.7

• Height (in): 3.649

• Thickness (mm): 6

• Thickness (in): 0.24

• Hole Size (mm): 13.5

• Hole Size (in): 0.531

• Weight (kg): 1

• Weight (lb): 2.204
