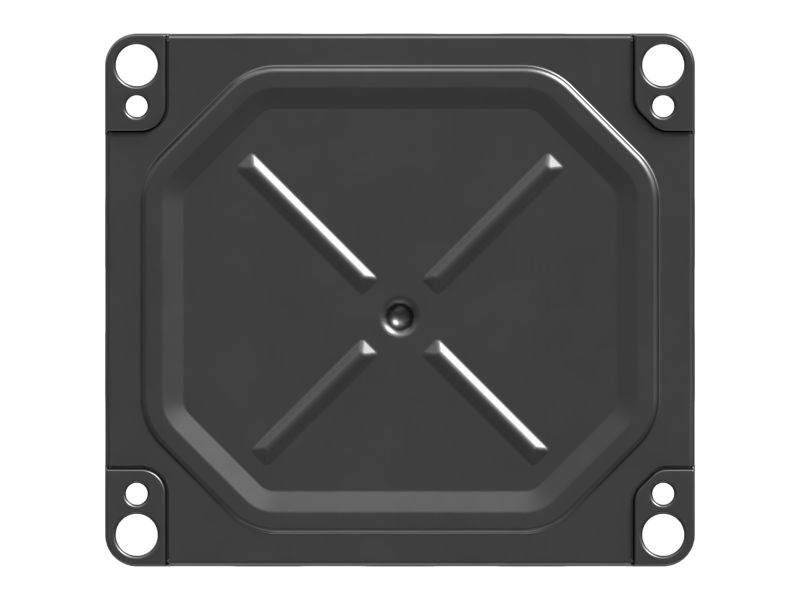

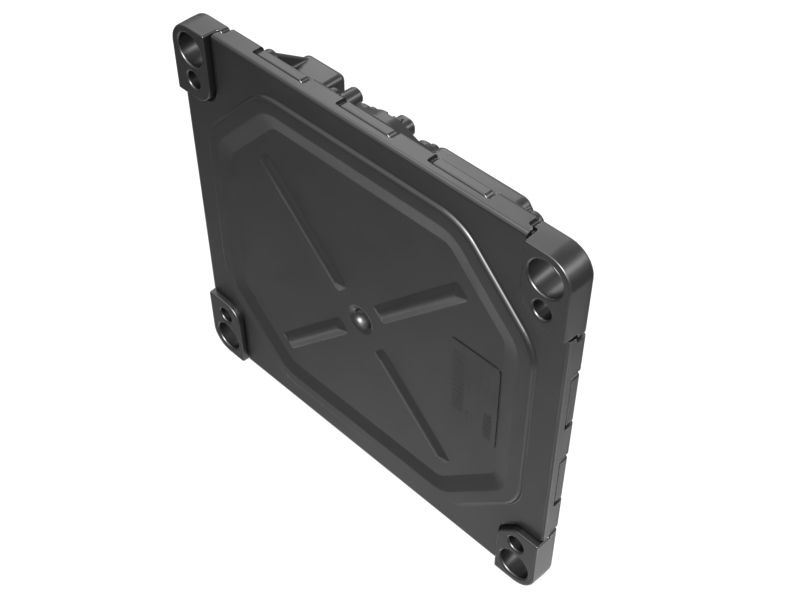

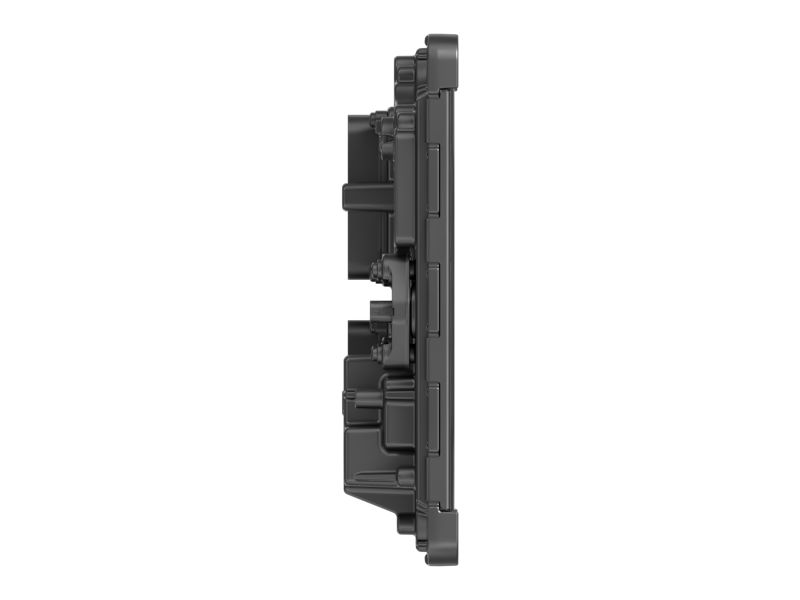

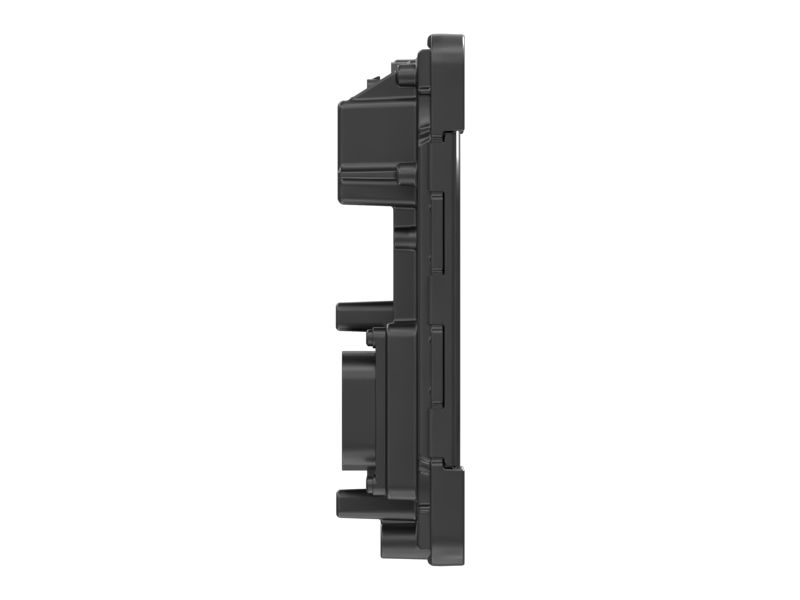

566-7784: Unprogrammed Electronic Control Module

An Unprogrammed Electronic Control Module consists of a number of components, including a microprocessor, memory, and input/output devices. The microprocessor is the central processing unit of the Unprogrammed Electronic Control Module (UECM) and is responsible for executing the control program. The memory stores the control program and data. The input/output devices allow the Unprogrammed Electronic Control Module (UECM) to communicate with the other electronic systems in the machine.

Attributes:
• Nominal System Voltage is 12 Volts
• Minimum and Maximum System Voltage are 9 Volts and 16 Volts
• Provided with dust and fluid tight sealing
• Withstands 35kPa of Positive Pressure and Negative Pressure
• Manufactured to precise specifications and is built for durability and reliability

Applications:
An Unprogrammed Electronic Control Module can be used to control a wide range of electronic systems in a machine. It is used to control the engine, transmission, brakes, steering, suspension, climate control, lighting, safety systems, and diagnostics and monitoring systems.

• Material: Alloy Aluminum
