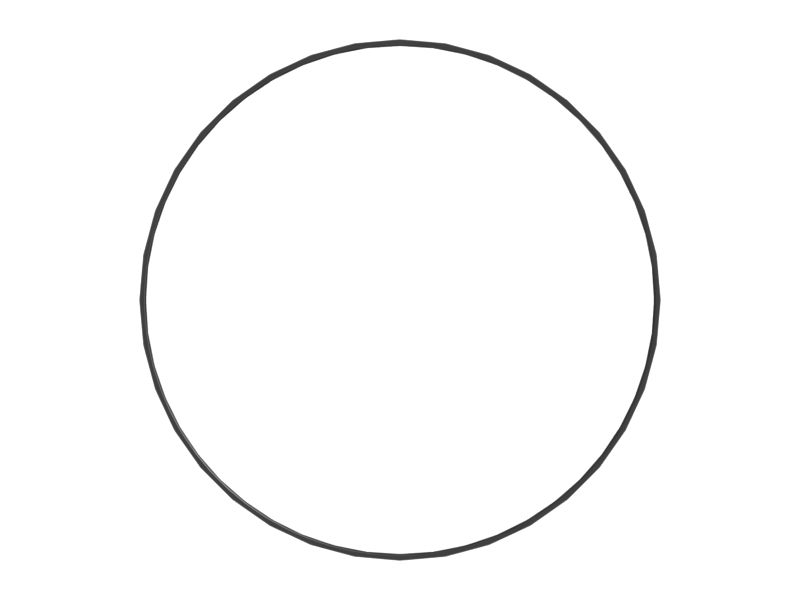

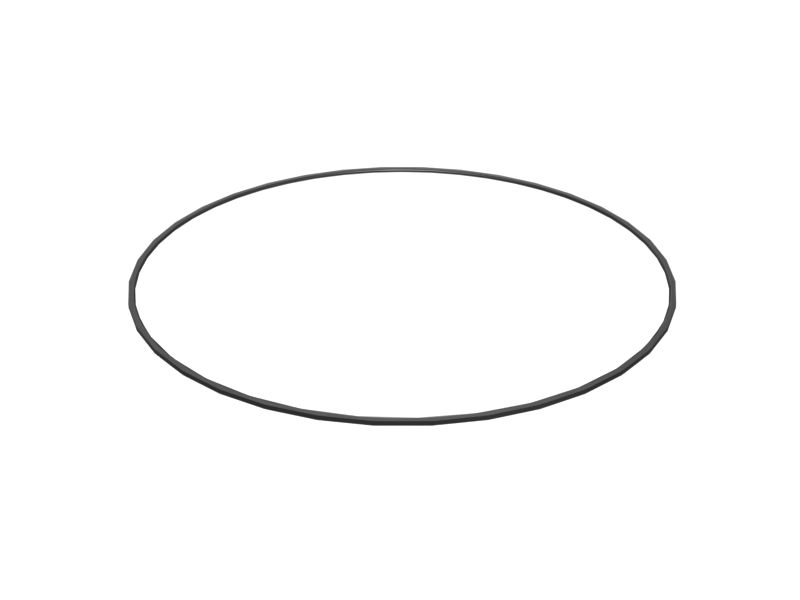

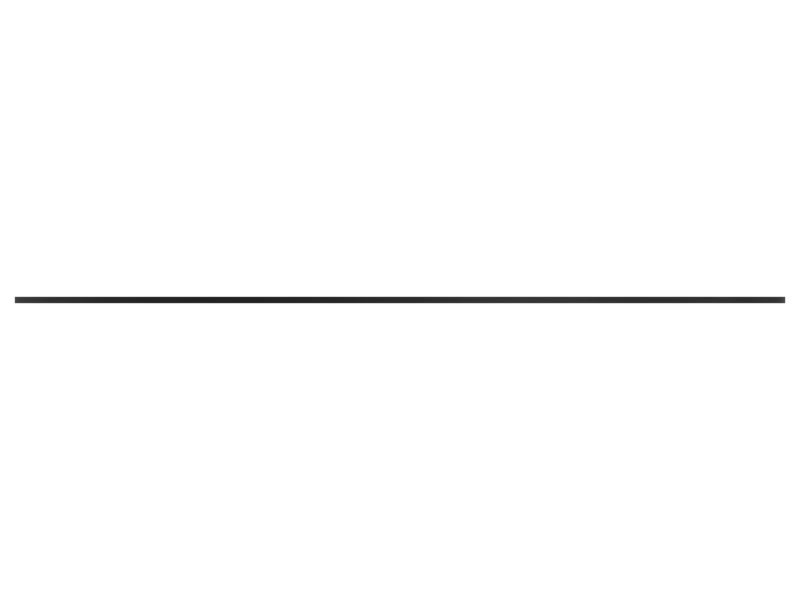

566-6094: 525mm Inner Diameter Brake Anchor D Ring Seal

The Brake Anchor D Ring Seal is designed to create a reliable seal between the brake anchor and the brake assembly. Its function is to prevent the leakage of brake fluid and the ingress of contaminants, such as dirt and moisture, which compromise the performance of the service and parking brake system. This seal is engineered to withstand the rigors of braking operation, maintaining its integrity and ensuring consistent and reliable braking performance.

Attributes:
• Made from high-quality materials.
• Resistant to abrasion, oil, and brake fluid.
• Resist extrusion and maintain a tight seal under pressure.
• Withstands temperature variations.

Applications:
The Brake Anchor D Ring Seal provides a secure seal for the brake components of the final drive and brake wheel, preventing hydraulic fluid leakage and ensuring optimal brake performance.

• O-Ring Type: D-Ring

• Material: FKM,Fluoroelastomer (FKM) Rubber

• Material Description: FKM rubber is capable of service temperatures of

• Hardness (Shore A): 90

• Cross Section Direction: Curved Inside Diameter

• Inside Diameter (mm): 525

• Outside Diameter (mm): 538.2

• Cross Section Width (mm): 4.31

• Cross Section Height (mm): 6.6

• Coating: None

• Color: Black

• Color Notes: Actual D-Ring color may differ from image.

• Notes: Dimensions and material descriptions provided for

• Inside Diameter (in): 21.80

• Outside Diameter (in): 21.19

• Cross Section Width (in): 0.17

• Cross Section Height (in): 0.26
