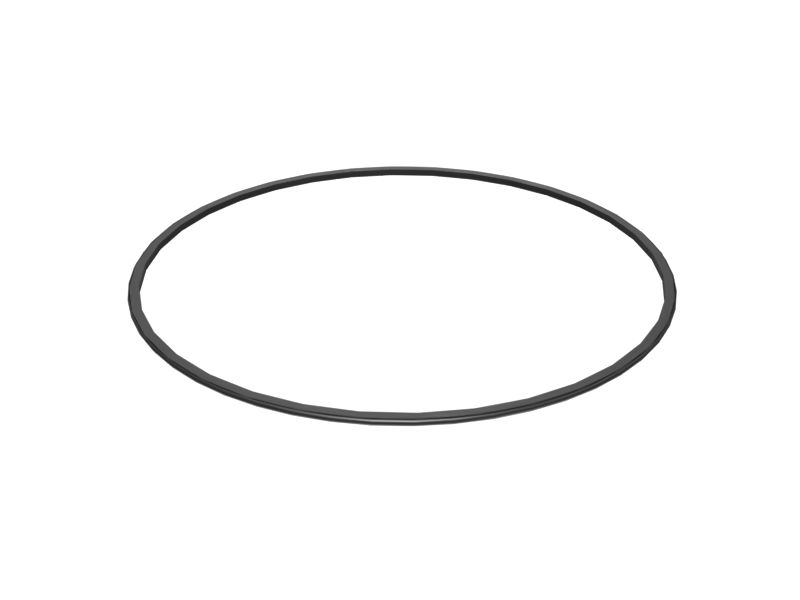

566-4567: 390.6mm Inside Diameter D-Ring Seal

A D-ring seal designed for parking and service brake housing pistons is used in brake systems. Its primary function is to establish a reliable and tight seal within the brake housing piston, effectively preventing the escape of hydraulic fluids and the intrusion of contaminants like dust and moisture. By maintaining this seal, it ensures optimal braking performance and safety. This seal helps prevent brake fluid leaks, maintains consistent hydraulic pressure, and contributes to reliable stopping power, ultimately enhancing the overall safety and functionality of the braking system.

Attributes:
• Engineered for durability and resistance to wear and tear
• Forms a secure and leak-free seal within the brake housing piston, preventing hydraulic fluid from escaping
• Ensures consistent and dependable braking performance for safety

Applications:
This D-Ring Seal ensures a secure, leak-free seal, preserving hydraulic integrity and enhancing braking performance for parking and service brake housing pistons.

• O-Ring Type: D-Ring

• Material: FKM,Fluoroelastomer (FKM) Rubber

• Material Description: FKM rubber is capable of service temperatures of

• Hardness (Shore A): 90

• Cross Section Direction: Curved Outside Diameter

• Inside Diameter (mm): 390.6

• Outside Diameter (mm): 406.92

• Cross Section Width (mm): 5.33

• Cross Section Height (mm): 8.16

• Coating: None

• Color: Black

• Color Notes: Actual D-Ring color may differ from image.

• Notes: Dimensions and material descriptions provided for

• Inside Diameter (in): 15.38

• Outside Diameter (in): 16.02

• Cross Section Width (in): 0.21

• Cross Section Height (in): 0.32
