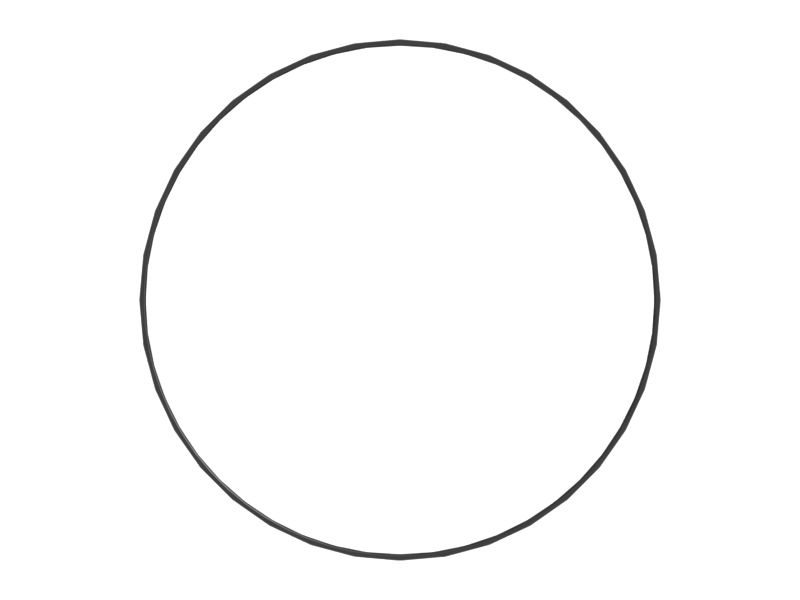

566-4565: 567mm Outside Diameter D-Ring Seal

A D-ring seal designed for parking and service brake anchors is an essential component of braking systems. Its primary function is to establish and reliable seal within the brake anchor, effectively preventing the intrusion of contaminants like dirt, dust, and moisture. This seal is used to maintain the brake system's efficiency and longevity. By effectively protecting brake components from environmental elements, the D-ring seal contributes to safety, reduces maintenance requirements, and enhances the reliability of the braking system.

Attributes:
• Maintains seal integrity even under high-pressure and dynamic conditions within the brake system
• Forms a reliable seal within the brake anchor to prevent contaminants from entering
• Ensures the dependable operation of parking and service brake systems

Applications:
This D-Ring Seal is utilized to reliably seal the brake anchor, safeguarding brake components from contaminants and ensuring a dependable brake system.

• O-Ring Type: D-Ring

• Material: FKM,Fluoroelastomer (FKM) Rubber

• Material Description: FKM rubber is capable of service temperatures of

• Hardness (Shore A): 90

• Cross Section Direction: Curved Inside Diameter

• Inside Diameter (mm): 553.8

• Outside Diameter (mm): 567

• Cross Section Width (mm): 4.31

• Cross Section Height (mm): 6.6

• Coating: None

• Color: Black

• Color Notes: Actual D-Ring color may differ from image.

• Notes: Dimensions and material descriptions provided for

• Inside Diameter (in): 21.80

• Outside Diameter (in): 22.32

• Cross Section Width (in): 0.17

• Cross Section Height (in): 0.26
